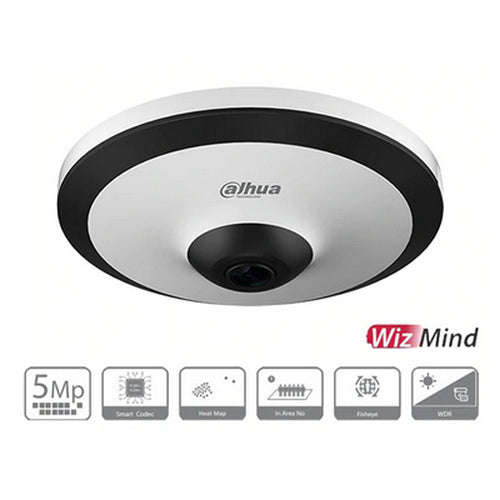

Dahua 5MP Fisheye 10m IR 1.4mm
> 5MP, 1/2.7" CMOS image sensor, low illuminance, high image definition
> Outputs max. 5MP (2592 × 1944) @25/30 fps
> H.265 codec, high compression rate, ultra-low bit rate
> Built-in efficient IR illuminator, and the max. illumination distance: 10 m
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
> 120dB WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
> Intelligent detection: Intrusion, tripwire, people counting in area
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic
> 12V DC/PoE power supply, easy for installation
> Heat map for people counting. You can adjust the number of people, time threshold to generate a heat map, which can be exported.
Camera |
Image Sensor | 1/2.7" 5Megapixel progressive CMOS |
Max. Resolution | 2592 (H) × 1944 (V) |
ROM | 128 MB |
RAM | 512 MB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s1/100,000 s |
Min. Illumination | 0.006 Lux@F2.0 (Color, 30IRE) 0.0006 Lux@F2.0 (B/W, 30IRE) 0 Lux (Illuminator on) |
S/N Ratio | > 56 dB |
Illumination Distance | 10 m (32.8 ft) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 3 (IR LED) |
Lens |
Lens Type | Fixed-focal |
Mount Type | M12 |
Focal Length | 1.4 mm |
Max. Aperture | F2.0 |
Field of View | Horizontal: 180°
Vertical: 180°
Diagonal: 180° |
Iris Type | Fixed |
Close Focus Distance | 0.2 m (0.7 ft) |
DORI Distance | Detect | Observe | Recognize | Identify |
28 m (91.9 ft) | 11.2 m (36.7 ft) | 5.6 m (18.4 ft) | 2.8 m (9.2 ft) |
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Smart Event |
Heat Map | Yes |
Professional, intelligent |
IVS (Perimeter Protection) | Tripwire; intrusion |
People Counting | Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas |
Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Fisheye |
Installation | Ceiling mount; wall mount; ground mount |
Decoding Mode | Back-dewarp |
Display Mode | Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid) |
Video |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec | Smart H.265+/ Smart H.264+ |
Video Frame Rate | Main stream (2592 × 1944 @125/30 fps)
sub stream (704 × 576 @125 fps/704 × 480 @130 fps)
third stream (1280 × 720 @125/30 fps) |
Stream Capability | 3 streams |
Resolution | 5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
...
