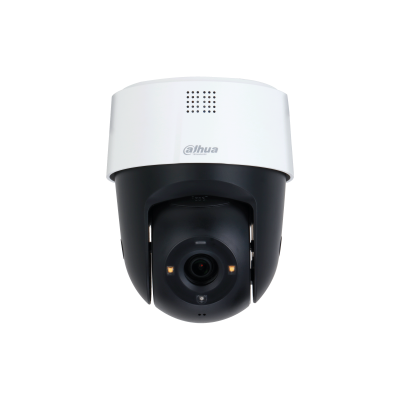

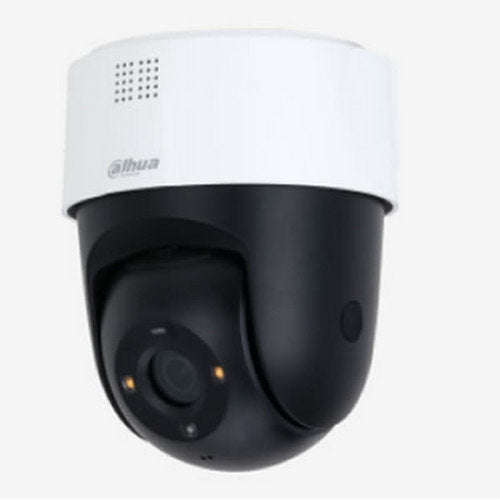

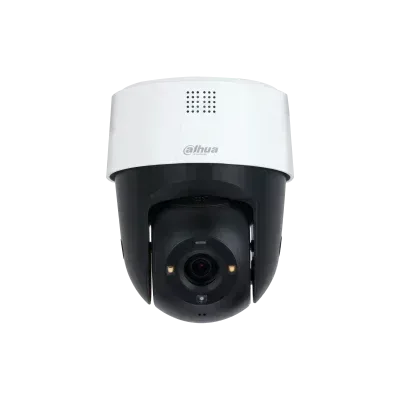

Dahua 5MP PTZ 30m IR 4mm

Camera

Image Sensor

1/2.8" CMOS

Pixel

5MP

Max. Resolution

2560 (H) × 1920 (V)

ROM

128 MB

RAM

128 MB

Electronic Shutter Speed

1/3 s1/100,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (illuminator on)

Illumination Distance

30 m (98.42 ft) (IR)
30 m (98.42 ft) (white light)

Illuminator On/Off Control

Manual; auto; off

Illuminator Number

1 (IR light)
2 (white light)

Lens

Focal Length

4.0 mm

Max. Aperture

F1.6

Field of View

H: 80.4°
V: 58.1°
D: 104.8°

Close Focus Distance

0.3 m (0.98 ft)

Iris Control

Fixed

DORI Distance

Detect

Observe

Recognize

Identify

77.4 m (253.94 ft)

31.0 m (101.71 ft)

15.5 m (50.85 ft)

7.74 m (25.39 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 345°
Tilt: 0° to +80°

Manual Control Speed

Pan: 0.1°74°/s
Tilt: 0.1°36.4°/s

Preset Speed

Pan: 62°/s; Tilt: 36.3°/s

Preset

300

Power-off Memory

Support

Idle Motion

Preset

Smart Event

IVS

Tripwire; intrusion

Video

Video Compression

Smart H.265; H.265; Smart H.264; H.264; H.264B; MJPEG (Sub Stream)

Streaming Capability

2 Streams

Resolution

5M (2560 × 1920); 4M (2560 × 1440); 1080P (1920 × 1080); 960P(1280x960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 5M(120fps); 4M/1080P/1.3M/720P (125/30fps)
Sub stream 1: D1/CIF (125/30fps)

Bit Rate Control

Variable Bit Rate/Constant Bit Rate

Video Bit Rate

H.264: 32 Kbps8192 Kbps
H.265: 32 Kbps8192 Kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Support

WDR

DWDR

HLC

Support

White Balance

Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp

Gain Control

Auto/Manual

Noise Reduction

2D/3D

Motion Detection

Support

Image Rotation

180°

S/N Ratio

55 dB

Audio

Audio Compression

G.711a; G.711Mu; G.726; G722.1; G.729; MPEG2-Layer2; G723

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; SSL; FTP; ARP; RTCP; RTP; IP Filter; RTMP; TCP
