System |
Main Processor | Industrial-grade processor |
Operating System | Embedded Linux |
Operating Interface | Web; Local GUI |
Quick Pick |
QuickPick 2.0 AI by Recorder (Number of Channels) | 2 channels |
Perimeter Protection |
Perimeter Performance AI by Recorder (Number of Channels) | Advanced Mode: 2 channels, 10 IVS rules for each channel General Mode: 8 channels, 10 IVS rules for each channel |
Face Detection |
Face Attributes | 6 attributes |
Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels(up to 12 face images/s each channel) |
Privacy Protection |
Privacy Protection Performance of AI by Recorder (Number of Channels) | 1 channel |
Face Recognition |
Face Database Capacity | Up to 10 face databases with 20,000 images. |
Face Recognition Performance of AI by Recorder (Number of Channels) | 2 channels |
SMD Plus |
SMD Plus by Recorder | 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
SMD Plus by Camera | 16 channels |
AI Video Quality Analytics |
AI Video Quality Analytics by Recorder | 8 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white |
Scene Changing |
Scene Changing by Recorder | 1 channel |
Irregular Black Block Masking |
Irregular Black Block Masking by Recorder | 1 channel |
EPTZ |
EPTZ by Recorder | 1 channel |
Audio and Video |

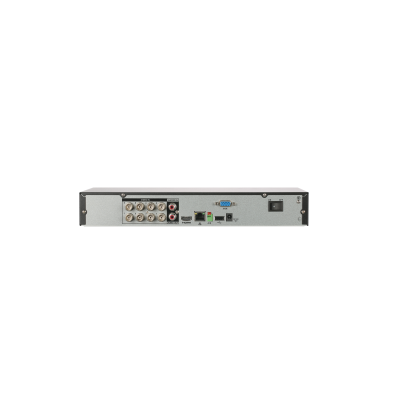

Analog Camera Input | 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
Camera Input | 1. CVI: 4K@25/30 fps; 4K@12.5/15 fps; 6 MP@20 fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps. 2. TVI: 4K@15 fps; 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
IP Camera Input | Up to 16 channels of IPC access 8 IP channels by default + 8 channels (analog channels are converted to IP channels) Incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used. |
Encoding Capacity | Encode Enhancement disabled： Main stream: the 1st channel 4K@(1 fps15 fps), others 4K@(1 fps7 fps); the 1st channel 6 MP@(1 fps20 fps), others 6 MP@(1 fps10 fps); the 1st channel 5 MP@(1 fps25 fps), others 5 MP@(1 fps12 fps); the 1st channel 4K-N/4 MP/3 MP@(1 fps25/30 fps), others 4K-N/4 MP/3 MP@(1 fps15 fps); 4K@(1 fps8 fps); 5 MP@(1 fps-15 fps);4M-N/1080p/720p/960H/D1/CIF@(1 fps25/30 fps) Sub stream: 960H@(1 fps15 fps); D1/CIF@(1 fps25/30 fps) Encode Enhancement enabled： Main stream: the 1st, 5th channel 4K@(1 fps15 fps), others 4K@(1 fps7 fps); the 1st, 5th channel 6 MP@(1 fps20 fps), others 6 MP@(1 fps10 fps); the 1st, 5th channel 5 M... |
