System |
Main Processor | Industrial-grade processor |
Operating System | Embedded Linux |
Operating Interface | Web; Local GUI |
SMD Plus |
SMD Plus by Recorder | 8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
Audio and Video |
Analog Camera Input | 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
Camera Input | 1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. 2. TVI: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. |
IP Camera Input | Up to 12 channels of IPC access 4 IP channels by default + 8 channels (analog channels are converted to IP channels) Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP extension is enabled, the AI Function (SMD) will be disabled. |
Encoding Capacity | Main stream: 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps) 5M-N Mode: 5M-N@(1 fps 12 fps); 4M-N/1080p@(1 fps15 fps); 1080N/720p/960H/D1/CIF@(1 fps25/30 fps) Sub stream: D1/CIF@(1 fps15 fps) |
Dual-stream | Yes |
Video Bit Rate | 32 kbps6144 kbps |
Audio Sampling | 8 kHz, 16 bit |
Audio Bit Rate | 64 kbps |
Video Output | 1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
Multi-screen Display | When IP extension mode not enabled: 1/4/8/9 When IP extension mode enabled: 1/4/8/9/16 |
Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF |
Compression Standard |
Video Compression | AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
Audio Compression | G.711a; G.711u; PCM |
Network |
Network Protocol | HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
Mobile Phone Access | iOS; Android |
Interoperability | ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK |
Browser | Chrome; IE; Safari; Edge; Firefox |
Recording Playback |
Record Mode | General; alarm; motion detection |
Recording Playback | 1/4/9 |
Backup Method | USB device and network |
Playback Mode | Instant playback; general playback; event playback; tag playback; smart playback |
Alarm |
General Alarm | Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm |
Anomaly Alarm | Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
Intelligent Alarm | SMD Plus |
Alarm Linkage | Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |

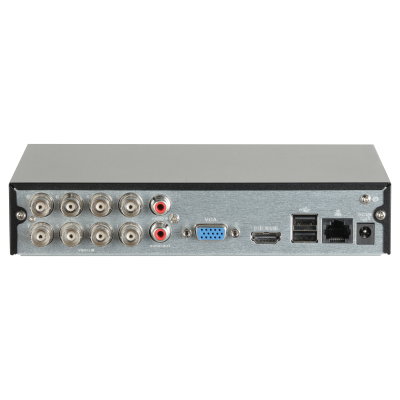

Ports |
Audio Input | 1-channel RCA 8-channel BNC (Coaxial Audio) |
Audio Output |
