System |
Main Processor | Industrial-grade processor |
Operating System | Embedded Linux |
Operating Interface | Web; Local GUI |
AI |
AI by Recorder | Face detection, face recognition, perimeter protection, and SMD Plus |
AI by Camera | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
Perimeter Protection |
Perimeter Performance AI by Recorder (Number of Channels) | 2 channels, 10 IVS rules for each channel |
Perimeter Performance of AI by Camera (Number of Channels) | 8 channels |
Face Detection |
Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
Face Detection Performance of AI by Recorder (Number of Channels) | 1 channel (up to 12 face images/s each channel) |
Face Detection Performance of AI by Camera (Number of Channels) | 8 channels |
Face Recognition |
Face Database Capacity | Up to 10 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
Face Recognition Performance of AI by Recorder (Number of Channels) | 8-channel FD (by camera) + FR (by recorder),image stream: 12 face images/s
1-channel FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
Face Recognition Performance of AI by Camera (Number of Channels) | 8 channels |
SMD Plus |
SMD Plus by Recorder | 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change |
SMD Plus by Camera | 8 channels |
Audio and Video |
Access Channel | 8 channels |
Network Bandwidth | AI disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing
AI enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing |
Resolution | 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF |
Decoding Capability | AI disabled: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps
AI enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 8-channel 1080p@30 fps |

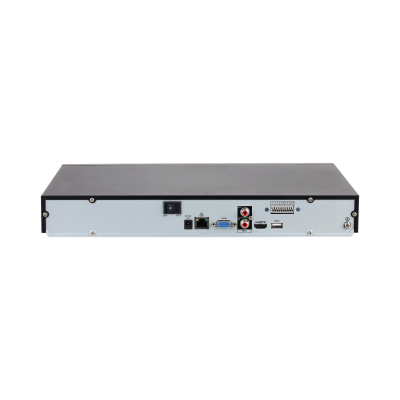

Video Output | 1 HDMI, 1 VGA
HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable. |
Multi-screen Display | 1st Screen: 1/4/8/9
2nd Screen: 1/4/8/9 |
Third-party Camera Access | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon |
Compression Standard |
Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
Audio Compression | G.711a; G.711u; PCM; G726 |
Network |
Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register |
Mobile Phone Access | iOS; Android |
Interoperability | ONVIF 22.06(Profile T; Profile S; Profile G); CGI; SDK |
Browser | Chrome; IE9 and later; Firefox |
Recording Playback |
Multi-channel Playback | Up to 8 channels |
Record Mode | General, motion detection; intelligent; alarm |
... |
