Dahua 8 - Port Unmanaged Ethernet Switch

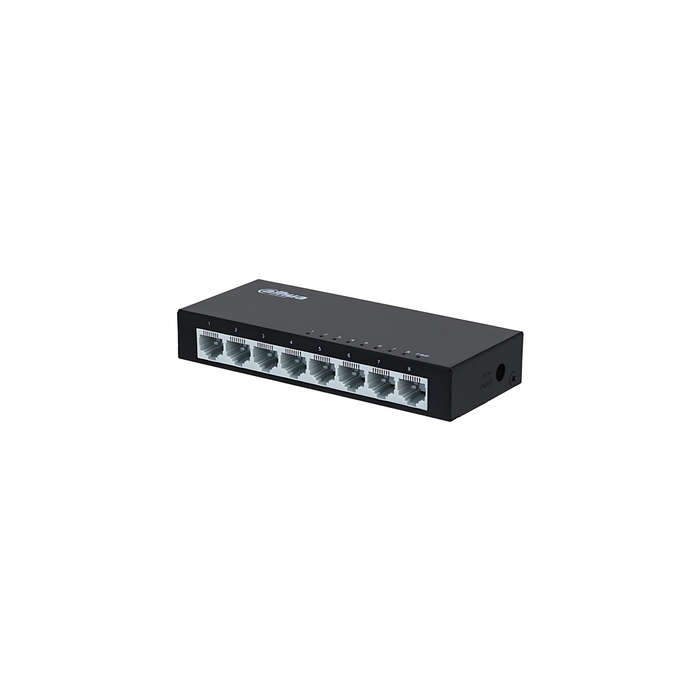

Dahua 8-Port Unmanaged Desktop Switch with 8 Port PoE - DH-PFS3008-8GT-96
System Overview

The DH-PFS3008-8GT-96 commercial PoE switch is specially designed for long-distance video transmission applications

The switch uses LD PoE technology to transmit power and data up to 250 m (820 ft)

LD PoE extends transmission distances beyond the industry-standard 100 m, even with third-party PoE-compliant cameras

The switch provides eight (8) Gigabit Ethernet PoE ports and supports Layer 2 network
management and PoE management with high-speed data - forwarding.

 Specifications:

 Layer 2 Commercial Switch

 Long-distance PoE (LD PoE) Transmits Power and Data 250 m (820 ft)

Conforms to IEEE802.3, IEEE802.3u and IEEE802.3X

 Conforms to IEEE802.3af and IEEE803.3at

Supports Hi-PoE (60 W)
MAC Auto-learning and Aging; 8K MAC Address Capacity
MDI/MDIX Self-adaptation

Metal Enclosure

The parameters and datasheets below can only be applied to V2.0 (version 2.0)

Intelligent PoE

BT 90W

 All-Giga Ports

Long-distance PoE

PoE watchdog

 Wide working temperature

What's in the box:

1 x Dahua 8-Port Unmanaged Desktop Switch
1 x Power Cable
1 x Product Info
