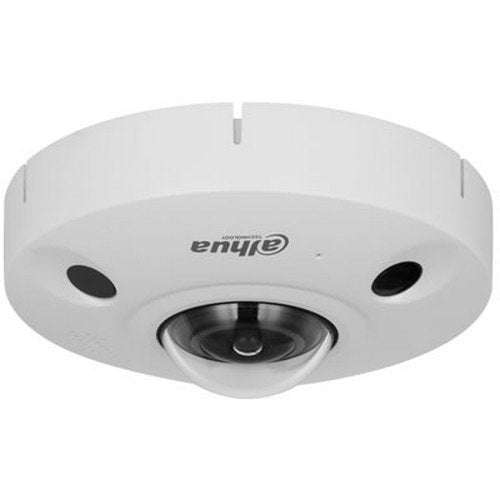

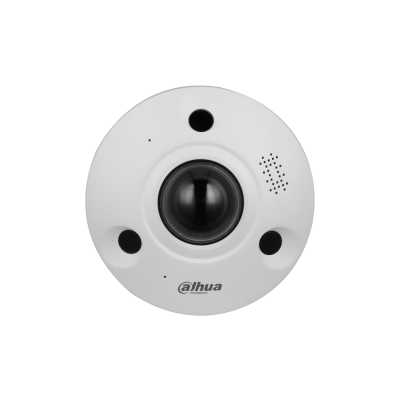

> 8 MP 1/1.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8M (3280 × 2480) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 10 m.
> Intelligent monitoring: Intrusion, tripwire, heat map, and people counting.
> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual-array Mic and speaker.
> 12 VDC/PoE power supply.
> IP67 and IK10 protection.
Camera |
Image Sensor | 1/1.7" CMOS |
Max. Resolution | 3280 (H) × 2480 (V) |
ROM | 4 GB |
RAM | 2 GB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s1/100,000 s |
Min. Illumination | 0.01 Lux@F2.0 (Color, 30 IRE) 0.001 Lux@F2.0 (B/W, 30 IRE) 0 Lux (Illuminator on) |
S/N Ratio | > 56 dB |
Illumination Distance | up to 10 m (32.81 ft) (IR) |
Illuminator On/Off Control | Auto/Manual |
Illuminator Number | 3 (IR LED) |
Lens |
Lens Type | Fixed-focal |
Lens Mount | M12 |
Focal Length | 1.85mm |
Max. Aperture | F2.0 |
Field of View | Horizontal: 185°; Vertical: 180° |
Iris Control | Fixed |
Close Focus Distance | 0.4 m (1.31 ft) |
DORI Distance | Detect | Observe | Recognize | Identify |
40.0 m (131.23 ft) | 16.0 m (52.49 ft) | 8.0 m (26.2 ft) | 4.0 m (13.12 ft) |
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. |
Smart Event |
Heat Map | Yes |
Professional, intelligent |
IVS (Perimeter Protection) | Intrusion; tripwire |
People Counting | Supports 4 rules to count the number of people entering, exiting, and staying separately. It will trigger alarm linkage when the number of people who entering, exiting or staying exceeds the threshold. It can display and export reports based on year, month, week, day or custom time. Supports 4 rules to count the number of people in area and will trigger alarm linkage when the average strand time or people number in the area exceeds the threshold. It can display and export reports based on month, week, day or custom time |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Fisheye |
Installation | Ceiling mount; wall mount; ground mount |
Decoding Mode | Front-dewarp; Back-dewarp; Front-dewarp+Back-dewarp |
Display Mode | Front-dewarp (hardware decoding):1O; 1P; 2P; 1R; 2R; 4R; 1O+ 3R
*O: Fisheye image view; P: Panoramic image view; R: Region image view
Back-dewarp (software decoding): fisheye view; 360° panoramic view + PTZ; dual-channel 180° panoramic view; fisheye + 2PTZ; fisheye + 3PTZ; fisheye + 4PTZ; 360° panoramic view + 6PTZ; fisheye + 8PTZ; 180° panoramic view; 180° panoramic view + 3PTZ; 180° panoramic view + 4PTZ; 180° panoramic view + 8PTZ; VR mode (panorama; semi-circle; cylinder; asteroid) |
Video |
Video Compression | H.265; H.264; H.264H; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+; Smart H.264+ |
Video Frame Rate | Main stream: 3280 × 2480@(125/30 fps) sub stream: 704 × 576@(125/30 fps) third stream: 1280 × 960@(125/30 fps) Fisheye mode: 1O (3280 × 2480) 1P (4096 × 1024) 2P (2432 × 2432) 1R (1216 × 1216) 2R (2432 × 2432) 4R (2432 × 2432) 1O + 3R (2432 × 2432) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total en... |
