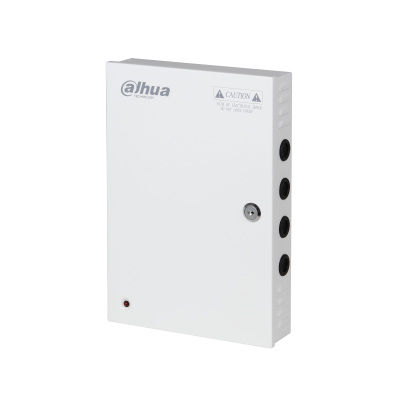

> 9 Channel security camera power supply distribution box with individual LED output indicator and metal case by lock key to prevent unauthorized access.
> Wide voltage input: AC90~264Vac, meet the requirements in different parts for electric network fluctuation.
> High quality and reliability: pass 100% quality examination and 3 months high temperature aging test.
> With overload protection, over-current protection, over-voltage protection, anti-static and anti-interference ability.
> Professional wall-mounted installation with reserved outlet holes, convenient and flexible.
Electrical Specification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model | DH-PFM342-9CH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Voltage Range | AC90~264V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Outputs | 9 x 12VDC (-3%~+7%) outputs | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. output | 10A, 120W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output Protection | 9 replacement fuses, max. per output 3A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Efficiency | 87% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
No Load Power Consumption | <0.21W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Internal ON/OFF Power Switch | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Individual LED Output Indicator | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection/Environmental | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Surge Protected | Line to ground: 4000V Line to line: 2000V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ESD | Contact discharge: 6000V Air discharge: 8000V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Temperature | -20~+45(-4~+113) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Humidity | <90% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Physical Properties | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight | 2.47kg(5.45lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension(LxWxH) | 315mmx215mmx53mm (12.4"x8.46"x2.09") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Wall mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color | White | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Safety Standards | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | CE(EN55032, EN55020) FCC(FCC Part 15 Class B, ISED ICES-003 Issue 6) |
