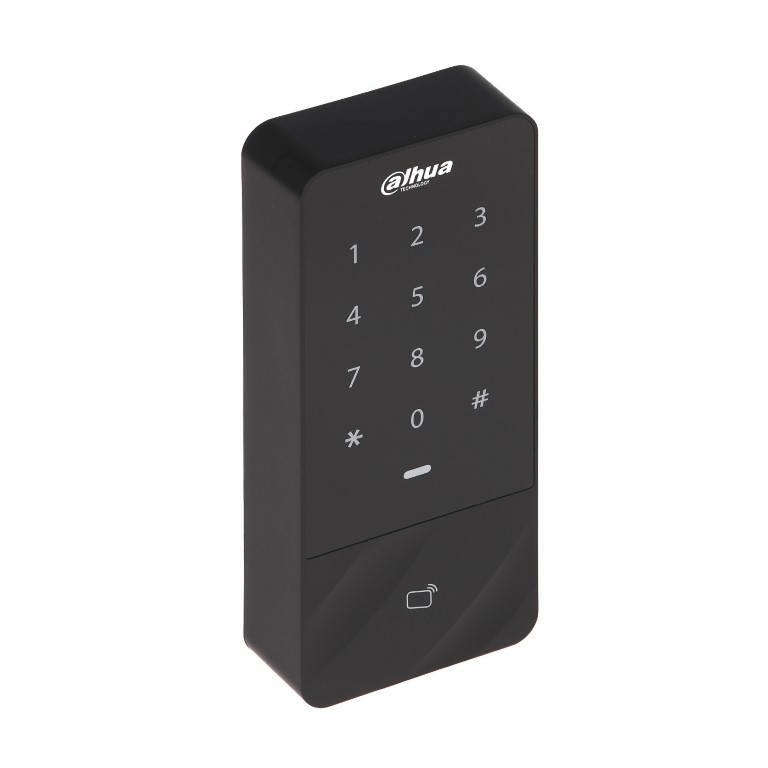

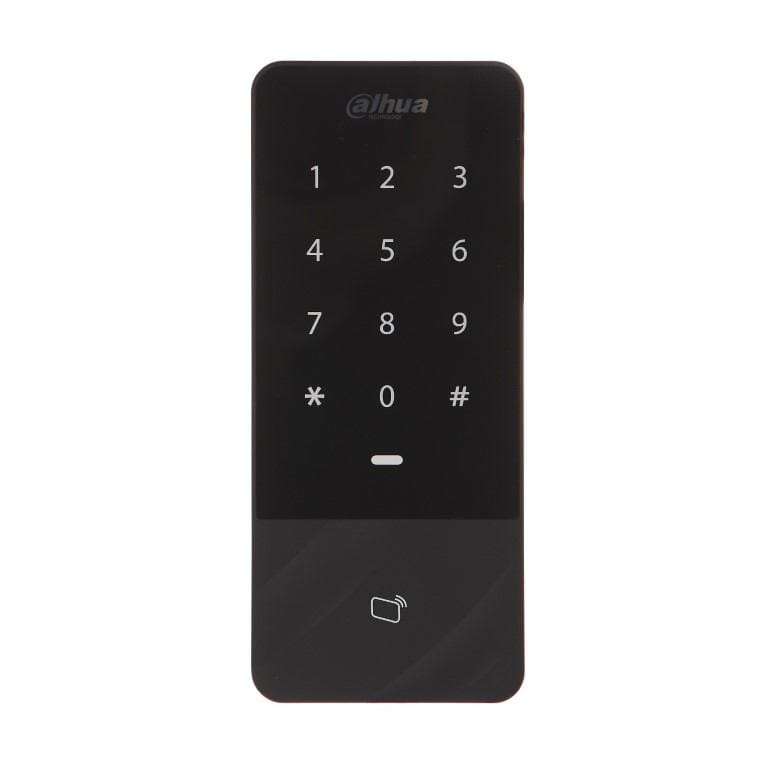

Dahua ASI1201E Water-proof RFID Standalone Terminal

• Support 30,000 valid cards & 60,000 records
• Support multiple cards (default IC card)
• Support card, password and combination
• TCP/IP to PC
• Wiegand or RS-485 interface to reader
• Door time out alarm, intrusion alarm, duress alarm and tamper alarm
• Anti-passback, multi-card open
• Water-proof design
• Support 128 efficient time and holiday schedules
• Watch dog function ensure device free from halting
• IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended)

Specifications

System

Main Processor: 32 Bit

Input/Output Ports

Input: Door sensor x 1, Exit button x 1

Output: Relay x 1 (Door lock,)

Reader: Reader x 1

Card Read

Read Format: 13.56MHz

Read Range: 1cm—2cm (max.)

Response Time: <0.1s

Capacity

Cardholders: 30,000

Events: 60,000

Function

User Management: General, VIP, Guest, Patrol, Black list, Duress

Alarm Function: Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm

Period Setting: Support 128 groups of schedule, 128 groups of periods and 128 groups of holiday periods

Interface

To PC: RJ45(10/100M)

To Reader: Wiegand26/34, RS485

Genreal

Ingress Protection: IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.)

RTC: Yes

Beep Tone: Buzzer

Keyboard: Sensitive touch keypad with blue backlight
