Conductor |
Material | Oxygen free copper (99.97% purity) |
Diameter | 0.50 mm ± 0.01 mm (0.0197"±0.0004") |
American Wire Gauge | 24AWG |
Insulation |
Material | HDPE |
Min. Average Thickness | 0.18 mm (0.0071") |
Diameter | 0.90 mm ± 0.1mm (0.0354"±0.004") |
Color (4 Pairs) | Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown |
Rip Cord |
Material | Polyester |
Specification | 500D |
Sheath |
Material | PVC |
Min. Average Thickness | 0.50 mm (0.0197") |
Diameter | 5.10 mm ± 0.30 mm (0.2008"±0.0118") |
Color | White |
Electrical |
Max. DC Resistance of a Single Conductor | 9.38/100 m |
Min. Insulation Resistance | 5000M·km |
Max. Mutual Capacitance | 5.6nF/100 m |
Max. DC Resistance Unbalance | 5% (pair intra) |
Dielectric Strength | No breakdown with 2.5 kV DC for 2 seconds |
Transmission |
Characteristic Impedance | 100±15 |
Near End Cross Talk | 35.30 dB/100 m @100 MHz |
Max. Attenuation | 22.0 dB/100 m @100 MHz |
Return Loss | 20.1 dB/100 m @100 MHz |
Mechanical |
Tensile Strength | Sheath13.8 MPa, insulation16.5 MPa |
Elongation at Break | Sheath100%, insulation300% |
Installation Bending Radius | >8 times of outer cable diameter |
Conductor Elongation at Break | 10% |
Environmental |
Shrinkage of Insulation | 6% |
Color Migration Resistance of Insulation | No migration |
Sheath Tensile Strength and Elongation at Break after Aging | 11.73 MPa, 50% |
Low Temperature Bending Test | No cracking after the test |
Heat Shock Test | No cracking after the test |
Operating Temperature | 20°C to +60°C (4°F to 140°F) |
Installation Temperature | 0°C to +50°C (32°F to 122°F) |
Storage Temperature and Humidity | 10°C to +40°C (14°F to 104°F), <60% (RH) |
Security |
Vertical Fire Propagation Test | Comply with UL1685 (without smoke measurements) |
Packaging |
Cable Length | 100.0 m (328.08 ft)±1 m (3.28 ft) |
Inner Carton Dimensions | 250 mm × 111 mm × 250 mm (9.84" × 4.37" × 9.84") (L × W × H) |
Net Weight | 2.9 kg±0.3 kg (6.39 lb±0.66 lb) |
Gross Weight | 3.2 kg±0.3 kg (7.05 lb±0.66 lb) |
Packaging Dimensions | 523 mm × 245 mm × 280 mm (20.59" × 9.65" × 11.02") (L × W × H) |

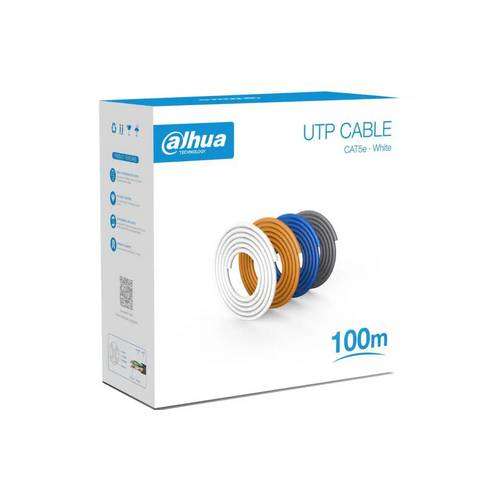

Packaging Method | 100 m/carton, 4 inner cartons in one package |
Compliance |
Executive Standards | ANSI/TIA 568-C.2-2009, UL444-2008 |
Certification |
Certification | UL CM |
