Conductor |
Material | Oxygen free copper (99.97% purity) |
Diameter | 0.57 mm ± 0.01 mm |
American Wire Gauge | 23AWG |
Insulation |
Material | HDPE |
Min. Average Thickness | 0.21 mm |
Diameter | 1.0mm±0.1mm |
Color (4 Pairs) | Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown |
Separator |
Material | PE |
Specification | Translucent 4.5 × 0.4 mm |
Rip Cord |
Material | Polyester |
Specification | 500D |
Sheath |
Material | PVC |
Min. Average Thickness | 0.5 mm |
Diameter | 6.3 mm ± 0.3 mm |
Color | White |
Electrical |
Max. DC Resistance of a Single Conductor | 7.5/100 m |
Min. Insulation Resistance | 5000M·km |
Max. DC Resistance Unbalance | 2% (pair intra), 4% (pairs inter) |
Dielectric Strength | No breakdown with 1KV DC for 1 min |
Transmission |
Characteristic Impedance | 100 ± 15 |
Near End Cross Talk | 39.30 dB/100 m@250 MHz |
Max. Attenuation | 33 dB/100 m@250 MHz |
Return Loss | 17.3 dB/100 m@250 MHz |
Mechanical |
Tensile Strength | Sheath9 MPa, insulation16 MPa |
Elongation at Break | Sheath100%, insulation100% |
Installation Bending Radius | >8 times of outer cable diameter |
Conductor Elongation at Break | 8% |
Environmental |
Shrinkage of Insulation | 5% |
Color Migration Resistance of Insulation | No migration |
Sheath Tensile Strength and Elongation at Break after Aging | 6.3 MPa, 100% |
Low Temperature Bending Test | No cracking after the test |
Heat Shock Test | No cracking after the test |
Operating Temperature | 20°C to +60°C (4°F to 140°F) |
Installation Temperature | 0°C to +50°C (32°F to 122°F) |
Storage Temperature and Humidity | 10°C to +40°C (14°F to 104°F), <60% (RH) |
Security |
Vertical Fire Propagation Test | Comply with IEC 60332-1-2 |

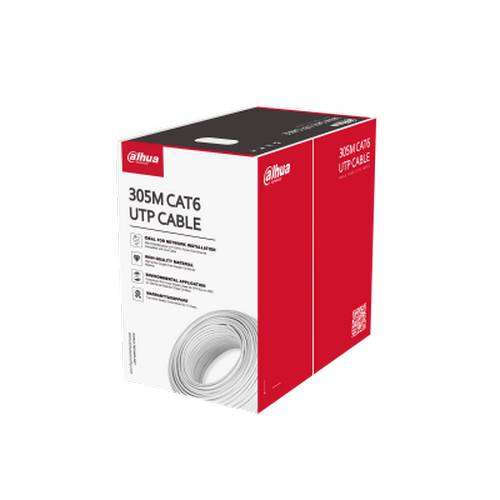

Packaging |
Cable Length | 305.0 m (1000.66 ft) ± 1.5 m (4.92 ft) |
Inner Carton Dimensions | 416.0 mm × 412.0 mm × 220.0 mm (16.38" × 16.22" × 8.66") (L × W × H) |
Packaging Method | 305.0 m (1000.66 ft) a carton, one carton with 2 inner cartons |
Net Weight | 11.9 kg (26.24 lb) |
Gross Weight | 12.9 kg (28.44 lb) |
Compliance |
Executive Standards | ISO/IEC 11801-1-2017, IEC 61156-5-2009 |
Certification |
Certification | CPR Eca |
