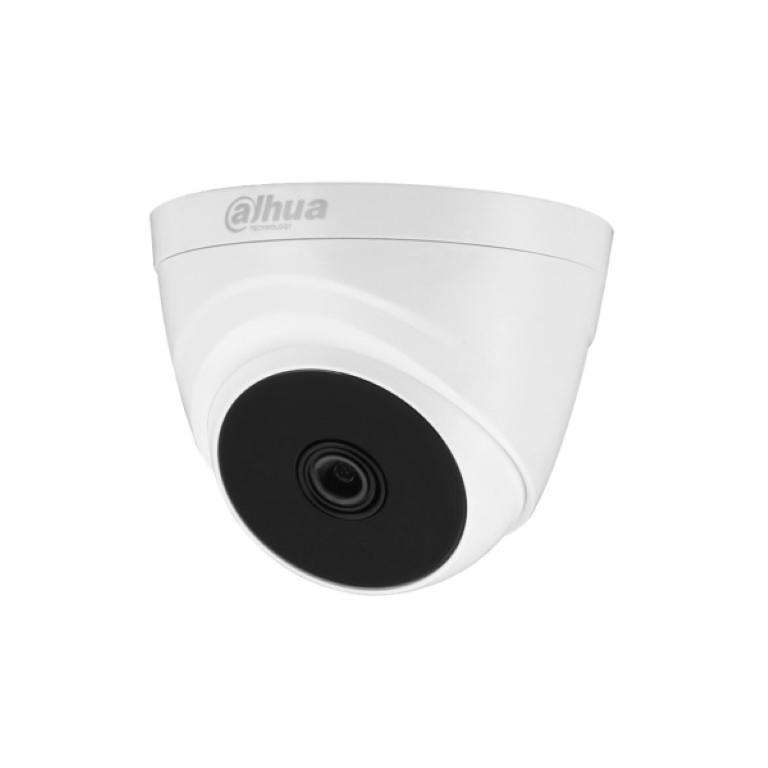

Dahua Cooper Series T1A51 5MP 2.8mm Fixed Eyeball HDCVI Dome Camera

* The parameters and datasheets below can only be applied to A51-S2 series.

* In order to use the 5MP 16:9 HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000001.0.R.200908 or later version.

• Max. 25 fps-5MP (16:9 video output)
• CVI/CVBS/AHD/TVI switchable
• 2.8 mm fixed lens
• Max. IR length 20 m, Smart IR
• DC12V

Specifications

Camera

Image Sensor: 1/2.7" CMOS

Max. Resolution: 2880 (H) × 1620 (V)

Pixel: 5MP

Scanning System: Progressive

Electronic Shutter Speed:

• PAL: 1/25—1/100000 s
• NTSC: 1/30—1/100000 s

Min. Illumination: 0.02 Lux/F2.0, 30IRE, 0 Lux IR on

S/N Ratio: More than 65 dB

Illumination Distance: 20 m (66 feet)

Illuminator On/Off Control: Auto;manual

Lens

Lens Type: Fixed lens / Fixed iris

Mount Type: M12

Focal Length: 2.8mm

Max Aperture: F2.0

Angle of View:

• 2.8 mm: 125° × 106° × 56°(diagonal × horizontal × vertical)

Focus Control: N/A

Close Focus Distance: 2.8 mm: 0.8 m (2.6 ft)

DORI distance

Lens: 2.8mm

Detect: 56.0 m

Observe: 22.4 m

Recognize: 11.2 m

Identify: 5.6 m
