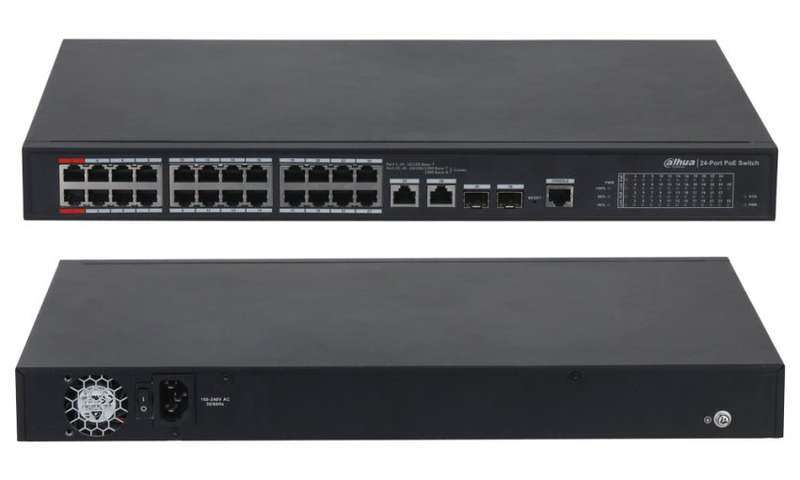

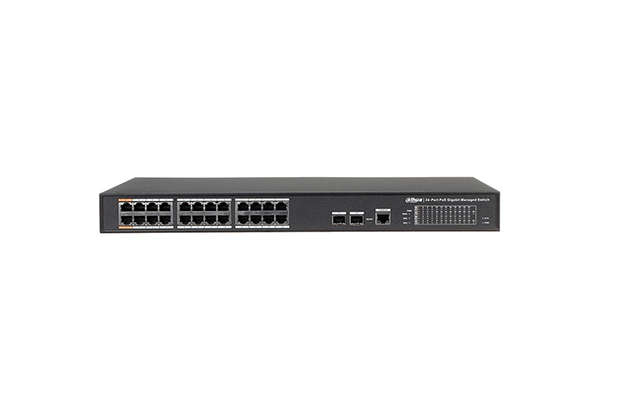

The Dahua DH-PFS4226-24ET-360 is a 24-port PoE-managed switch designed to power and manage IP devices such as cameras, phones, and access points with maximum efficiency. Featuring Hi-PoE support and a total PoE budget of up to 360W, this switch combines power delivery and data transmission across long distances (up to 250m per port in long-distance mode).
With a switching capacity of 8.8 Gbps, support for advanced VLAN, link aggregation, and security functions like IEEE802.1x and IP+MAC binding, the unit offers a reliable, high-capacity core for network deployments requiring power and control over Ethernet.
Key Features & Benefits
24 x 10/100 Mbps PoE ports, with support for Hi-PoE, PoE+, and standard PoE
2 x Gigabit RJ-45 + 2 x Gigabit SFP combo uplink ports
Total PoE budget of up to 360W (30W per port; ports 12 support 60W Hi-PoE)
Supports IEEE802.3af / IEEE802.3at / Hi-PoE protocols
8.8 Gbps switching capacity for reliable data throughput
4K MAC address table and VLAN support (IEEE 802.1Q)
Layer 2 management features: STP, RSTP, port mirroring, LACP, and static aggregation
Web-based management with SNMP v1/v2c/v3 support
Security with IEEE802.1x port authentication and IP+MAC binding
Supports long-distance power and data transmission up to 250m per port
Ideal Uses
Surveillance systems powering IP cameras with high PoE needs
Office deployments combining data and power across workstations
Remote areas requiring extended cable lengths and power delivery
Layer 2 managed network cores with VLAN and traffic control requirements
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: Dahua
Model: DH-PFS4226-24ET-360
Form Factor: 1U Rackmount
Ports:
24 x 10/100 Mbps RJ-45 (PoE)
2 x 10/100/1000 Mbps RJ-45 (Combo)
2 x 1000 Mbps SFP (Combo)
PoE Support: IEEE802.3af, IEEE802.3at, Hi-PoE
PoE Budget: Total 360W (30W per port; ports 12 support 60W)
MAC Table: 4K entries
Switching Capacity: 8.8 Gbps
Forwarding Rate: 6.55 Mpps
VLAN Support: IEEE 802.1Q
Link Aggregation: Static and LACP
Spanning Tree: STP / RSTP
Mirroring: Many-to-one
QoS Support: 802.1p, DSCP, WRR
Management: Web (HTTP/HTTPS), SNMP v1/v2c/v3
Security: IEEE802.1x port authentication, IP+MAC binding
Power Input: 100240V AC
Power Consumption: Max 360W
Lightning Protection: 4KV (Common Mode), 2KV (Differential Mode)
Dimensions: 440 x 300 x 44 mm
Weight: 3.51 kg
Operating Temperature: -10°C to 55°C
Humidity: 10% to 90% (Operating)
Warranty: 3 Month Carry-in Warranty
What's in the Box: Switch
