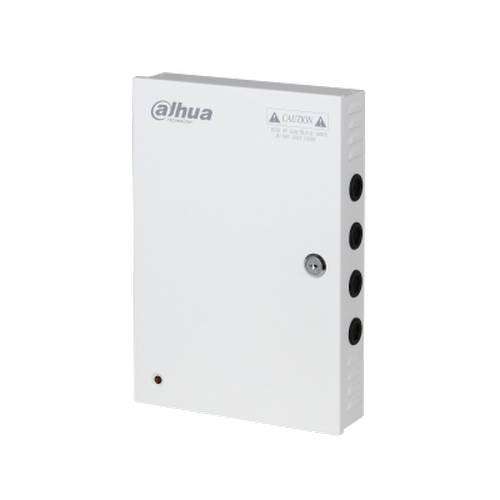

Dahua Distributed Power Supply - 19 Channel

Dahua Distributed Power Supply - 19 Channel

New 1 available
Only 1 left – grab it before it’s gone!
R1,859.00
Shipping
This product qualifies for free shipping in South Africa, using one of our trusted couriers.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 5 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
DH-PFM343-19CH
Bob Shop ID
643642506

Dahua Distributed Power Supply - 19 Channel

> 19 Channel security camera power supply distribution box with individual LED output indicator and metal case by lock key to prevent unauthorized access.
> Wide voltage input: AC90~264Vac, meet the requirements in different parts for electric network fluctuation.
> High quality and reliability: pass 100% quality examination and 3 months high temperature aging test.
> With overload protection, over-current protection, over-voltage protection, anti-static and anti-interference ability.
> Professional wall-mounted installation with reserved outlet holes, convenient and flexible.

Electrical Specification

Model

DH-PFM343-19CH

Input Voltage Range

AC90~264V

Outputs

19 x 12VDC (-3%~+7%) outputs

Max. output

20A, 240W

Output Protection

19 replacement fuses, max. per output 3A

Efficiency

87%

No Load Power Consumption

<0.21W

Internal ON/OFF Power Switch

Yes

Individual LED Output Indicator

Yes

Protection/Environmental

Surge Protected

Line to ground: 4000V

Line to line: 2000V

ESD

Contact discharge: 6000V

Air discharge: 8000V

Working Temperature

-20~+45(-4~+113)

Working Humidity

<90% RH

Physical Properties

Weight

2.52kg(5.56lb)

Dimension(LxWxH)

315mmx215mmx53mm (12.4"x8.46"x2.09")

Installation

Wall mount

Color

White

Safety Standards

Certification

CE(EN55032, EN55020)

FCC(FCC Part 15 Class B, ISED ICES-003 Issue 6)
