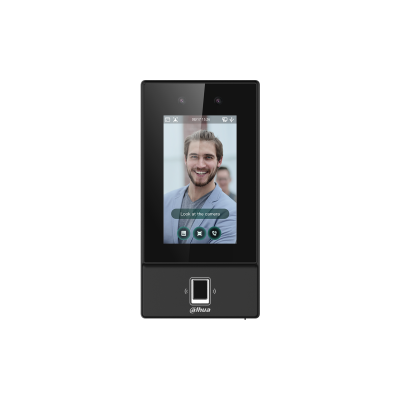

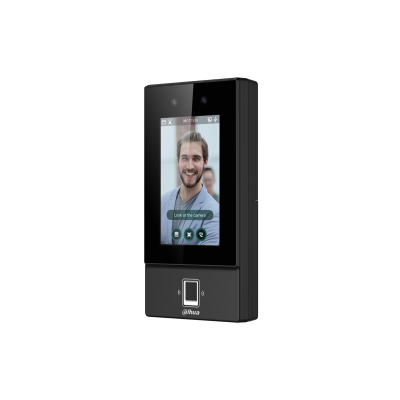

Dahua Face Recognition Access Controller
> 4.3 inch glass touch screen with a resolution of 272 × 480.
> 2-MP wide-angle dual-lens camera with IR illumination and DWDR.
> Multiple unlock methods including fingerprint, face, IC card and password.
> Supports 6,000 users, 6,000 faces, 6,000 passwords, 6,000 fingerprints, 10,000 cards, 50 administrators, and 300,000 records.
> Recognizes faces 0.3 m to 1.5 m away (0.98 ft-4.92 ft); face recognition accuracy rate of 99.9% and the 1:N comparison time is 0.2 s per person.
> Supports improved security and to protect against the device being forcefully opened, security module expansion is supported.
> Features face mask detection and safety helmet detection.
> Supports visitor QR code and doorbell function.
> Supports making video calls and using the app to receive alarm notifications, remotely unlock doors and to perform other tasks.
> TCP/IP connection.
> IP65 rated.
System |
Main Processor | Embedded Processor |
Button Type | Touch button |
Network Protocol | UDP; TCP; IPv4; RTSP; SIP; P2P; RTP |
OSDP Protocol | Yes |
Interoperability | CGI; ONVIF |
SDK and API | Yes |
Basic |
Product Type | Standalone |
Display Screen | 4.3" LCD |
Screen Type | Capacitive Touchscreen |
Screen Resolution | 272 (H) × 480 (V) |
Camera | 2-MP CMOS HD dual-lens camera |
WDR | DWDR |
Light Compensation | Auto IR |
Voice Prompt | Yes |
Buzzer | Yes |
Casing Material | PC+GF |
Function |
Unlock Mode | Fingerprint, Card, remote, password, QR code, face and combination unlock |
Card Type | IC cards |
Period List | 128 periods |
Holiday Period | 128 periods |
Network Update | Yes |
First User Unlock | Yes |
Remote Verification | Yes |
Restricted List/Trusted List | Yes |
Peripheral Card Reader | 1 × RS-485 card reader
1 × Wiegand card reader |
Multi-user Authentication | Yes |
Real-time Monitoring | Yes |
Multi-factor Authentication | Yes |
Capture Function | Yes |
Web Configuration | Yes |
Auto Registration | Yes |
Performance |
Card Reading Distance | 0 cm3 cm (0"1.18") |
Face Recognition Height Range | 1.1 m2.0 m (3.61 ft6.56 ft) |
Face Recognition Distance | 0.3 m1.5 m (0.98 ft4.92 ft) |
Face Recognition Accuracy | 99.9% |
Face Recognition Time | 0.2 s |
Fingerprint Verification Mode | 1:N |
User |
User (Card) Type | Normal user; VIP users; patrol users; guest user; blocklist user; other user; custom user 1; custom user 2 |
Capacity |
User Capacity | 6,000 |
Face Image Capacity | 6,000 |
Card Capacity | 10,000 |
Password Capacity | 6,000 |
Record Capacity | 300,000 |
Port |
RS-485 | 1 |
Wiegand | 1 |
USB | 1 |
Network Port | 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port |
Alarm Input | 1 |
Alarm Output | 1 |
Alarm Linkage | Yes |
Exit Button | 1 |
Door Status Detection | 1 |
Lock Control | 1 |
Alarm |
Anti-pass Back | Yes |
Tamper Alarm | Yes |
Duress Alarm | Yes... |
