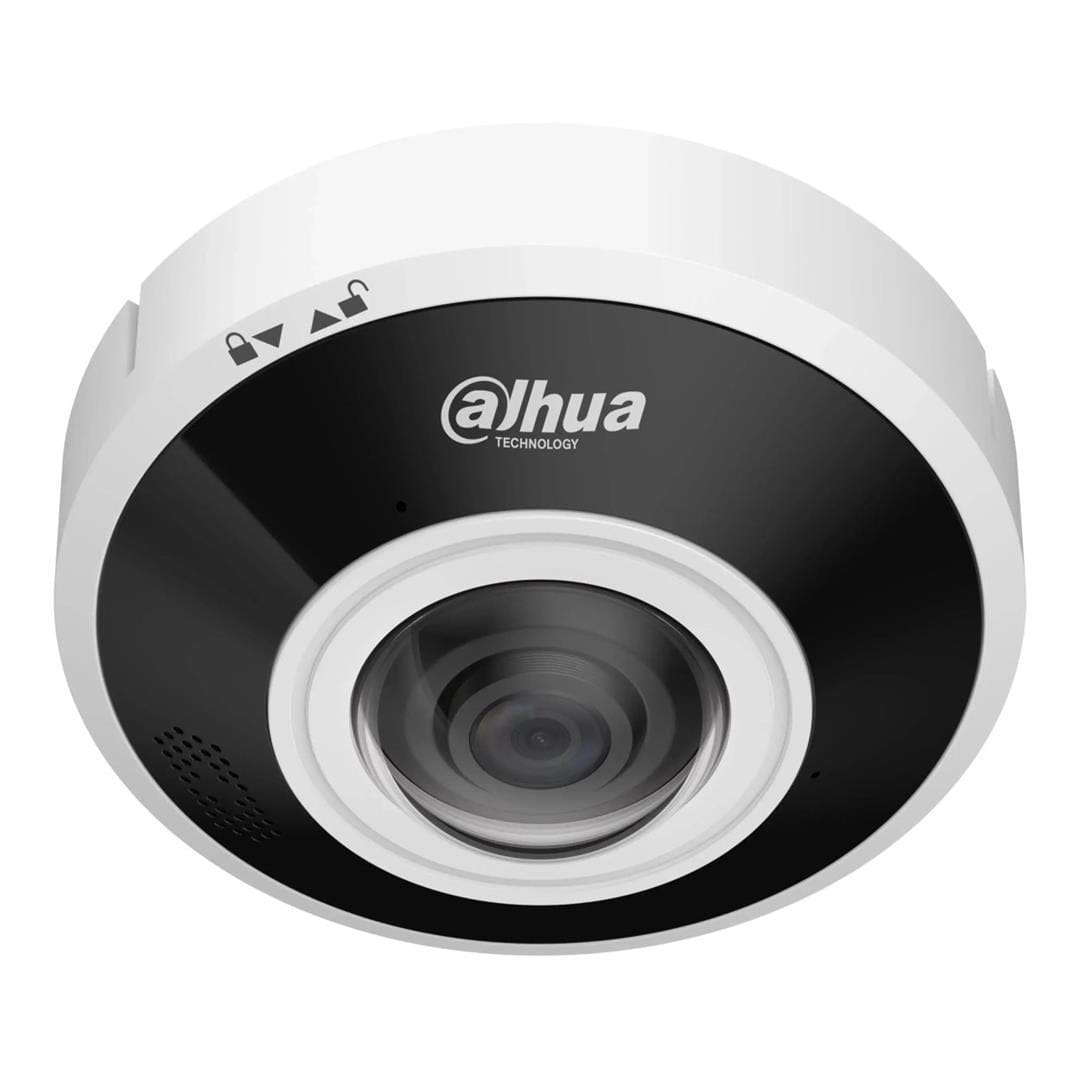

Dahua IPC-EBW5641-AS 6MP IR Fisheye WizMind Network Camera

Available: Mon—Fri, 08:00—17:00 | Closed on weekends & public holidays

Discover 22,000+ In-Stock Products | https://www.bobshop.co.za/store/FirstShop

Brand New & Sealed with Manufacturer Warranty

Dahua IPC-EBW5641-AS 6MP IR Fisheye WizMind Network Camera

Features:

• 6-MP 1/2.5 CMOS image sensor, low luminance, and high definition image.
• Outputs max. 6 MP (2560 × 2560) - 25 / 30 fps.
• 360° fisheye monitoring covers all the corners without any blind zone.
• Supports fisheye front de-warp and back de-warp.
• Supports split screen for 2 and 4 windows.
• Built-in IR LED, and the max. illumination distance is 15 m.
• ROI, AI H.264 / H.265, flexible coding, applicable to various bandwidth and storage environments.
• WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• With deep learning algorithm, it supports: Perimeter Protection, People Counting, Heat map.
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card;
• Built-in speaker and dual Mic. Supports two-way talk.
• 12 VDC / PoE (802.3af) power supply.
• IP67 and IK10 protection.

Specifications:

Image Sensor: 1 / 2.5 CMOS

Max. Resolution: 2560 (H) × 2560 (V)

ROM: 4 GB

RAM: 1 GB

Scanning System: Progressive

Electronic Shutter Speed: Auto / Manual 1 / 3 s — 1 / 100,000 s

Min. Illumination:

• 0.006 lux - F2.0 (Colour, 30 IRE)
• 0.0006 lux - F2.0 (B / W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >56 dB

Illumination Distance: 1.68 mm: Up to 15 m (49.21 ft) (IR)

Illuminator On/Off Control: Auto; Manual

Illuminator Number: 3 (IR LED)

Lens Type: Fixed-focal

Lens Mount: M12

Focal Length: 1.68 mm

Max. Aperture: F2.0

Field of View: H: 185°; V: 185°; D: 185°

Iris Control: Fixed

Close Focus Distance: 1.68 mm: 0.3 m (0.98 ft)

DORI Distance:

• Detect: 33.6 m
• Observe: 13.4 m
• Recognise: 6.7 m
• Identify: 3.4 m

EPTZ: Yes

IVS (Perimeter Protection): Tripwire, intrusion (supports accurate human detection)

People Counting: Tripwire people counting, area counting, queue management with report generation (day / month / year); 4 configurable rules

Heat Map: Yes

Smart Search: Works with Smart NVR for refined intelligent search, event extraction and merging

Video Compression:

• H.265; H.264; H.264H; H.264B; MJPEG (sub stream only)
• AI Coding: AI H.265; AI H.264 (includes Smart H.265+ / H.264+)

Video Frame Rate:

• Main stream: 2560 × 2560 - (1 — 25 / 30 fps)
• Sub / third streams: see split / panoramic window modes

Streaming Capability:

• 3 streams: Resolution: 6M (2560 × 2560); 4M (2048 × 2048); 1.6M (1280 × 1280); 2M (1440 × 1440); 1M (1024 × 1024); 720 × 720; SVCD (480 × 480); 2.5M (2560 × 960); 1.5M (2048 × 768); 1.3M (1920 × 720); 1280 × 480; 640 × 240; VGA (640 × 480); QVGA (320 × 240); 3M (2048 × 1536); 2.7M (1920 × 1440); XVGA (1024 × 768); UVGA (1600 × 1200)
• Bit Rate Control: VBR; CBR; ABR

Video Bit Rate:

• H.264: 3 kbps — 16384 kbps
• H.265: 3 kbps — 16384 kbps

Day / Night: Auto (ICR) / Colour / B / W

BLC / HLC: Yes / Yes

WDR: 120 dB

Scene Self-adaptation (SSA): Yes

White Balance: Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control: Auto / Manual

Noise Reduction: 3D NR

Motion Detection: OFF / ON (4 areas, rectangular)

Region of Interest (RoI): Yes (4 areas)

Defog: Yes

Image Rotation: 0° / 180°

Mirror: Yes

Privacy Masking: 4 mosaics + 4 colour blocks

Fisheye Installation: Ceiling mount; wall mount; ground mount

Decoding Mode: Front de-warp / Back de-warp (various panoramic / PTZ views supported)

Built-in MIC: Yes, built-in dual Mic

Built-in Speaker: Yes, built-in speaker

Audio Compression: PCM; G.711a; G.711Mu; G.726

Alarm: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; scene changing; tripwire; intrusion; audio detection; intensity change; voltage detection; external alarm; people counting; abnormal number of people; security exception.

Network Port: RJ-45 (10 / 100 Base-T)

SDK and API: Yes

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability: ONVIF (Profile S & Profile G & Profile T); CGI

User / Host: 20

Storage: FTP; SFTP; Micro SD card (support max. 1 TB); NAS

Browser: IE11; Chrome; Firefox

Management Software: Smart PSS Lite; DSS; DMSS; DoLynk Care

Security: Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade; Session security; Security warning

Certification: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014 / 30 / EU

RS-485: 1 (baud rate 1200 — 115200 bps)

Audio Input: 1 channel (RCA port)

Audio Output: 1 channel (RCA port)

Alarm Input: 1 channel in: wet contact, 5 mA, 3—5 VDC

Alarm Output: 1 channel out: wet contact, 300 mA, 12 VDC
