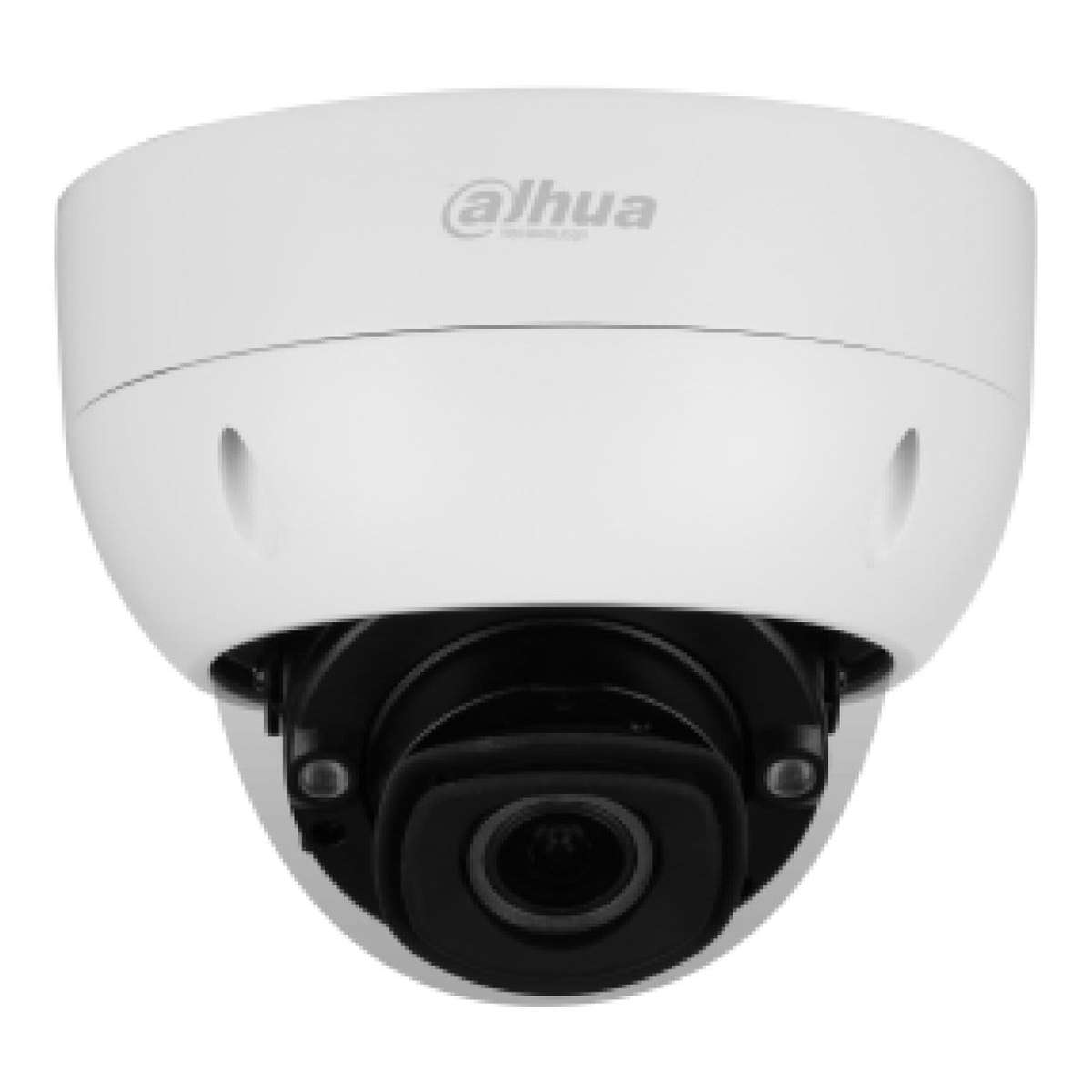

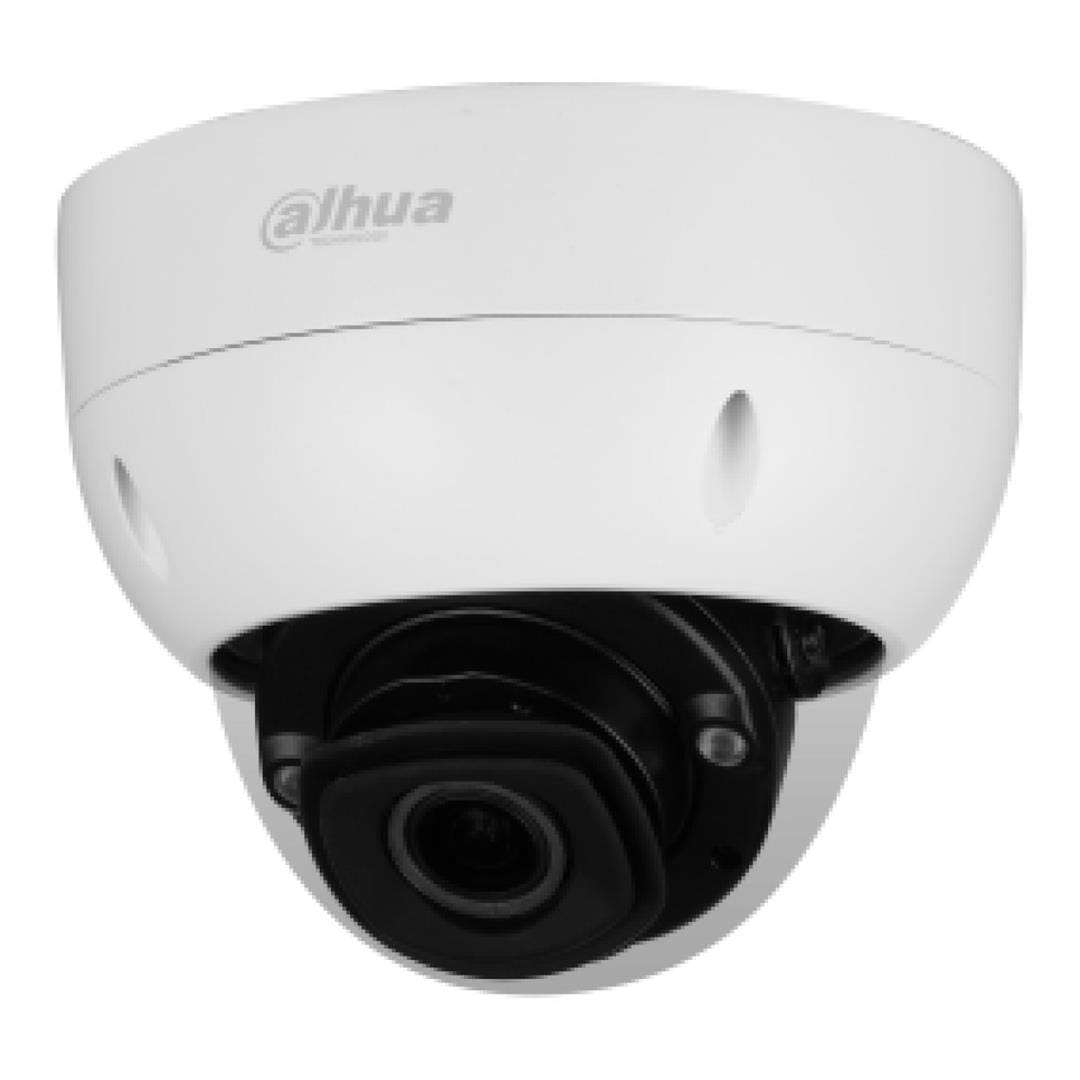

Dahua IPC-HDBW7442H-Z-S2 4MP 12mm IR WizMind Dome Network Camera

Available: Mon—Fri, 08:00—17:00 | Closed on weekends & public holidays

Discover 22,000+ In-Stock Products | https://www.bobshop.co.za/store/FirstShop

Brand New & Sealed with Manufacturer Warranty

Dahua IPC-HDBW7442H-Z-S2 4MP 12mm IR WizMind Dome Network Camera

Features:

• It supports more AI functions: Face and Body Detection(include PPE Detection), Face Recognition,Video Metadata, Face Detection, People Counting, Perimeter Protection.
• 7442 support Privacy Protection.Mosaics can be automatically placed over the face or body of a person to protect their privacy.
• 7442 supports 4MP-50/60fps high frame rate.
• Anti-Corrosion coating ,NEMA 4X report(-ATC model).
• Rich interfaces: Alarm: 3 in, 2 out; Audio: 1 in, 1 out; RS485, BNC.

Specifications:

Image Sensor: 1/1.8" CMOS

Max. Resolution: 2688 (H) × 1520 (V)

ROM: 4 GB

RAM: 2 GB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3 s—1/100,000 s

Min. Illumination:

• 0.001 lux-F1.2 (Color, 30 IRE)
• 0.0002 lux-F1.2 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >56 dB

Illumination Distance: 40 m (131.23 ft)

Illuminator On/Off Control: Auto; Manual; Zoomprio

Illuminator Number: 3 (IR LED)

Pan/Tilt/Rotation Range:

• Pan: 0°—355°
• Tilt: 0°—80°
• Rotation: 0°—355°

Lens Type: Motorized vari-focal

Lens Mount: Module interface

Focal Length: 2.7-12 mm

Max. Aperture: F1.2

Field of View:

• Horizontal: 114° (W)—48° (T)
• Vertical: 59° (W)—27° (T)
• Diagonal: 141° (W)—55° (T)

Iris Control: Auto; P-iris

Close Focus Distance: 1 m (3.28 ft)

Stream Capability: 5 streams

Resolution: 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control: CBR/VBR

Video Bit Rate:

• H.264: 32 kbps—10240 kbps
• H.265: 12 kbps—9984 kbps

Day/Night: Auto(ICR)/Color/B/W

BLC: Yes

HLC: Yes

WDR: 140 dB

Scene Self-adaptation (SSA): Yes

White Balance: Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control: Auto; Manual

Noise Reduction: 3D NR

Motion Detection: OFF/ON (4 areas, rectangular)

Region of Interest (RoI): Yes (4 areas)

Image Stabilization: Electronic Image Stabilization (EIS)

Smart Illumination: Yes

Defog: Yes

Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror: Yes

Privacy Masking: 4 areas

Network Port: RJ-45 (10/100/1000 Base-T)

SDK and API: Yes

Cyber Security: Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP

Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P

User/Host: 20 (Total bandwidth: 80M)

Storage: FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser:

• IE: IE9 and later
• Chrome: Chrome 42 and later
• Firefox: Firefox 48.0.2 and later

Management Software: Smart PSS; DSS; DMSS

Mobile Client: iOS; Android
