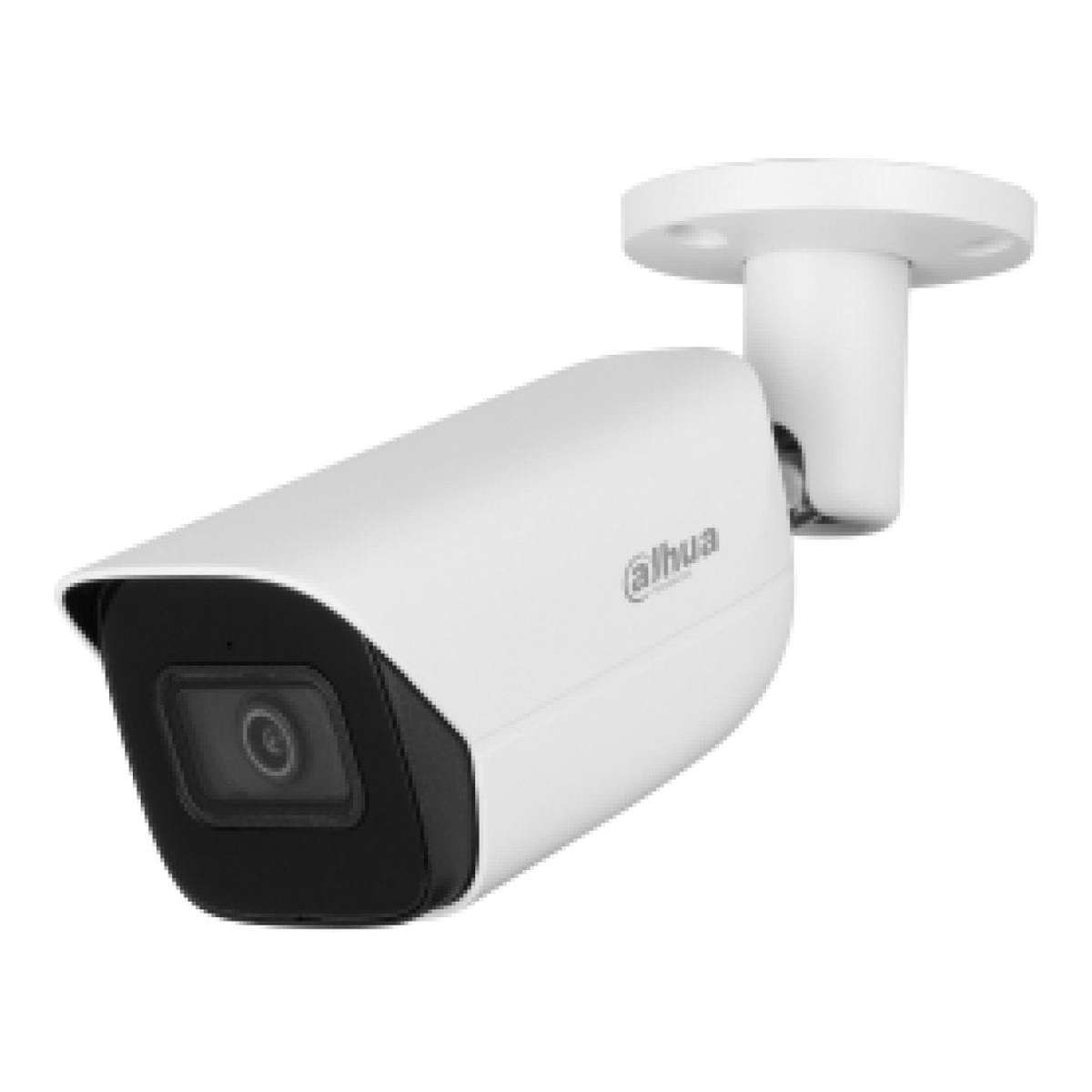

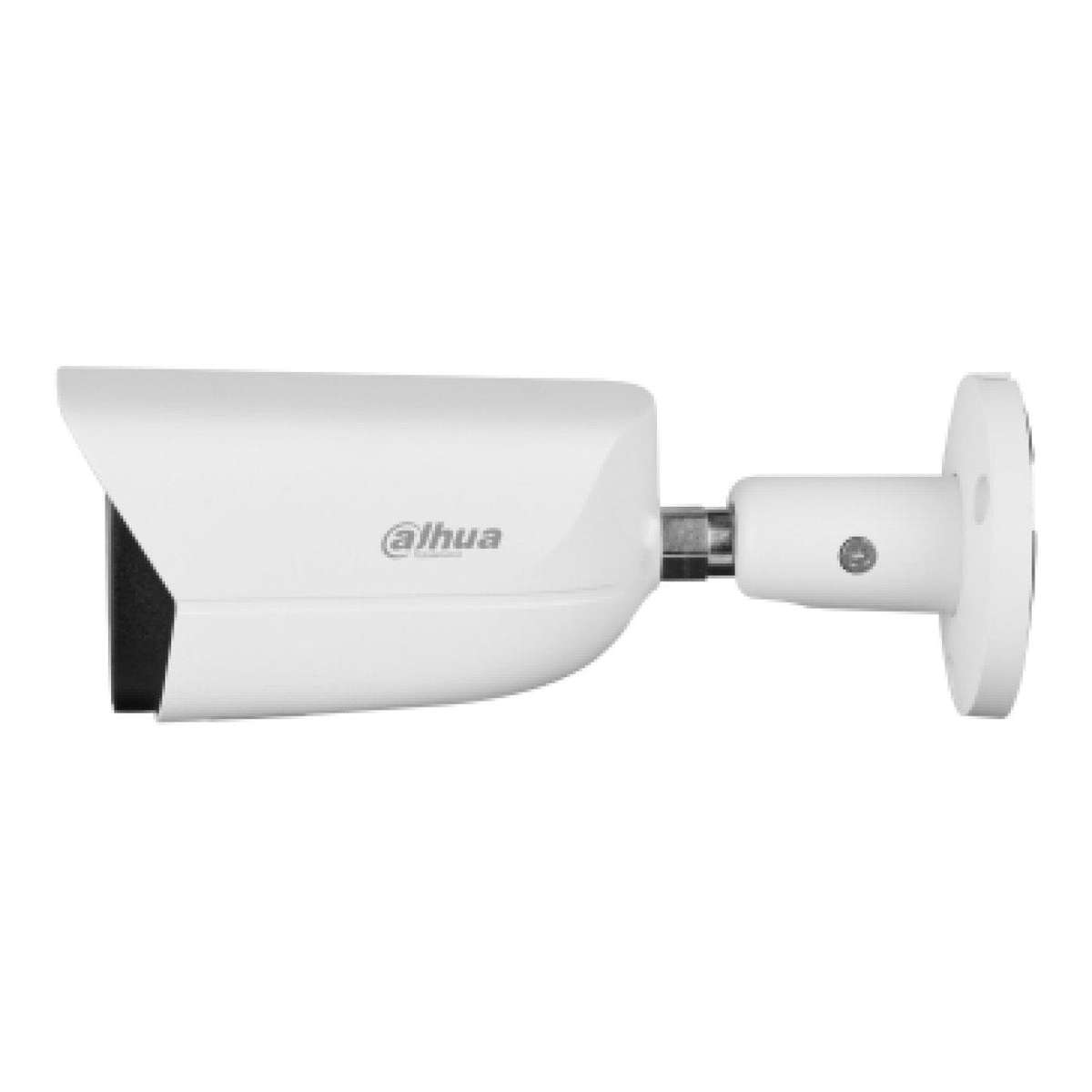

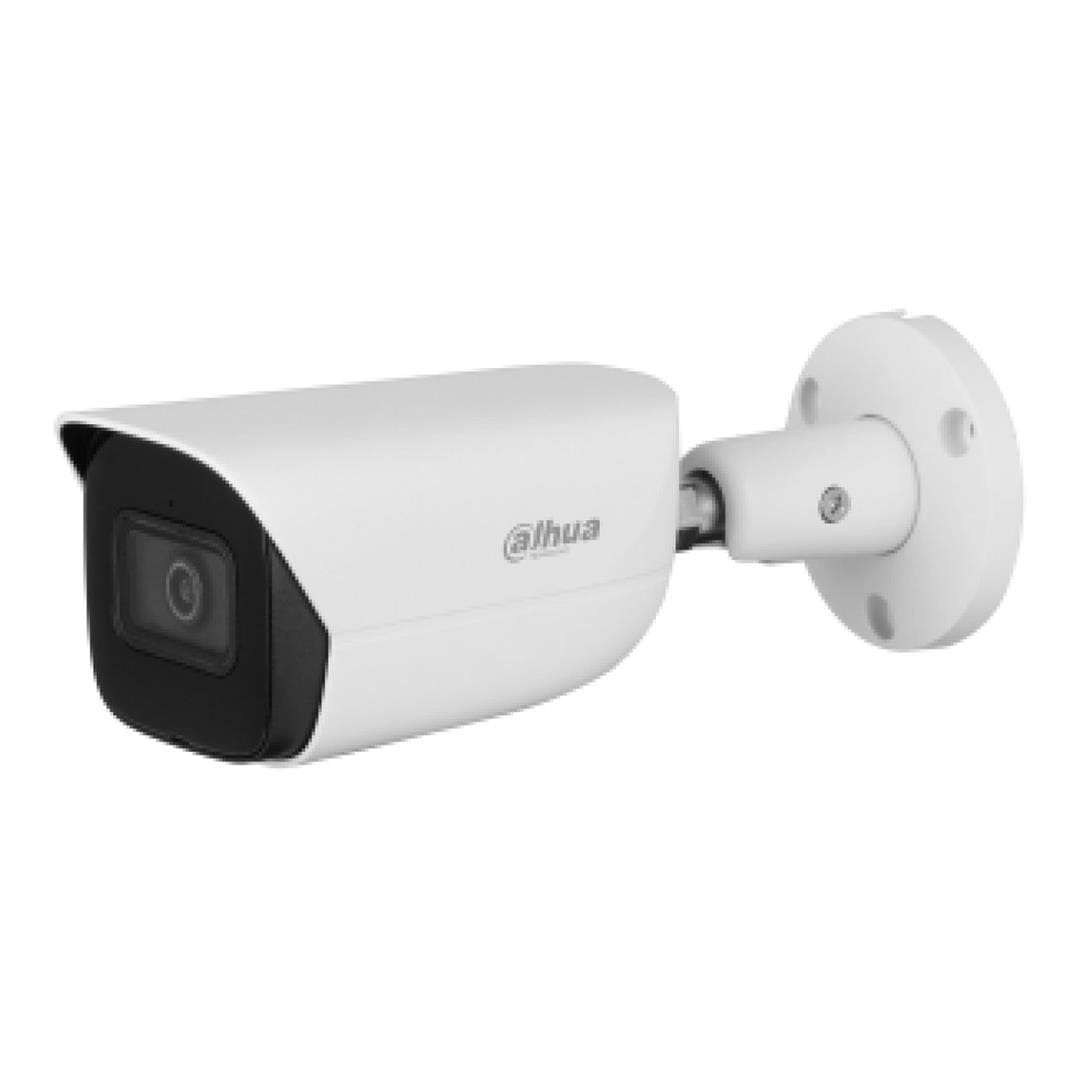

Dahua IPC-HFW5541E-ASE WizMind 5MP 2.8mm IR Fixed-focal Bullet Network Camera

Available: Mon—Fri, 08:00—17:00 | Closed on weekends & public holidays

Discover 22,000+ In-Stock Products | https://www.bobshop.co.za/store/FirstShop

Brand New & Sealed with Manufacturer Warranty

Dahua IPC-HFW5541E-ASE WizMind 5MP 2.8mm IR Fixed-focal Bullet Network Camera

5MP IR Fixed-focal Bullet WizMind Network Camera

* The parameters and datasheets below can only be applied to 5541-ASE-S3 series.

• 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
• Outputs max. 5 MP (2960×1668) -25/30fps.
• Built-in IR LED, and the max. illumination distance is 50 m.
• ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1 TB Micro SD card, built-in MIC.
• 12VDC/PoE power supply; ePoE.
• IP67 protection.
• SMD 3.0.

Specifications:

Image Sensor: 1/2.7" CMOS

Maximum Resolution: 2960 (H) × 1668 (V)

ROM: 4 GB

R.A.M: 1 GB

Scanning System: Progressive

Electronic Shutter Speed: Auto/Manual 1/3s-1/100,000s

Minimum illumination:

• 0.0009 lux-F1.6 (Color, 30 IRE)
• 0.0005 lux-F1.6 (B/W, 30 IRE)
• 0 lux (Illuminator on)

S/N Ratio: >56 dB

Illumination Distance: Up to 50 m (164.04 ft) (IR)

Illuminator On/Off Control: Car; Manual

Illuminator Number: 1 (IR LED)

Angle Adjustment:

• Pan: 0°-360°
• Tilt: 0°-90°
• Rotation: 0°-360°

Lens Type: Fixed-focal

Lens Mount: M12

Focal Length: 2.8 mm

Maximum Aperture: F1.6

Field of View: 2.8mm: H: 111°; V: 58°; D: 132°

Iris Control: Fixed

Close Focus Distance: 2.8mm: 1.1m (3.06ft)

Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec: Smart H.265+; Smart H.264+

AI Coding: AI H.265; AI H.264

Video Frame Rate:

• Main stream: 2960 × 1668-(1-25/30 fps)
• Sub stream: D-(1-25/30 fps)
• Third stream: 1080p-(1-25/30 fps)
• Fourth stream: 720p-(1-25/30 fps)

*The values ââabove are the max. frame rates of each stream; for multiple streams, the values ââwill be subject to the total encoding capacity.

Stream Capability: 4 streams: resolution: 5M (2960×1668/2880×1620); 4M (2688×1520); 3.6M (2560×1440); 3M (2048×1536/2304×1296); 1080p (1920×1080); 1.3M (1280×960); 720p (1280×720); D1 (704×576/704×480); VGA (640×480); CIF (352 × 288/352 × 240)

Bit Rate Control: CBR/VBR

Video Bit Rate:

• H.264: 32kbps - 16384kbps
• H.265: 12kbps - 11776kbps

Day/Night: Auto(ICR)/Color/B/W

BLC: Yes

HLC: Yes

WDR: 120 dB

Scene Self-adaptation (SSA): Yes

White Balance: Car; natural; street lamp; outdoor; manual; regional custom

Gain Control: car

Noise Reduction: 3D NR

Motion Detection: OFF/ON (4 areas, rectangular)

Region of Interest (RoI): Yes (4 areas)

Smart Illumination: Yes

Defog: Yes

Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 4M (2688 × 1520) resolution and lower)

Mirror: Yes

Privacy Masking: 8 areas

LDC: Yes (only 2.8mm/3.6mm supports)

Network Port: RJ-45 (10/100 Enhancement Base-T)

SDK and API: Yes

Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNA; DDNS; QoS; UPnP; NTP; multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Register

Interoperability: ONVIF (Profile S/Profile G/Profile T/Profile M); CGI

User/Host: 20 (Total bandwidth: 80 M)

Storage: FTP; SFTP; Micro SD card (support max. 1 TB); NAS

browser:

• IE: IE 9 and later
• Chrome: Chrome 102 and later
• Firefox: Firefox 88 and later

Management Software: SmartPSS Lite; DSS; DMSS

Mobile Client: iOS; Android

Cybersecurity: Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
