Brand New & Sealed with Manufacturer Warranty

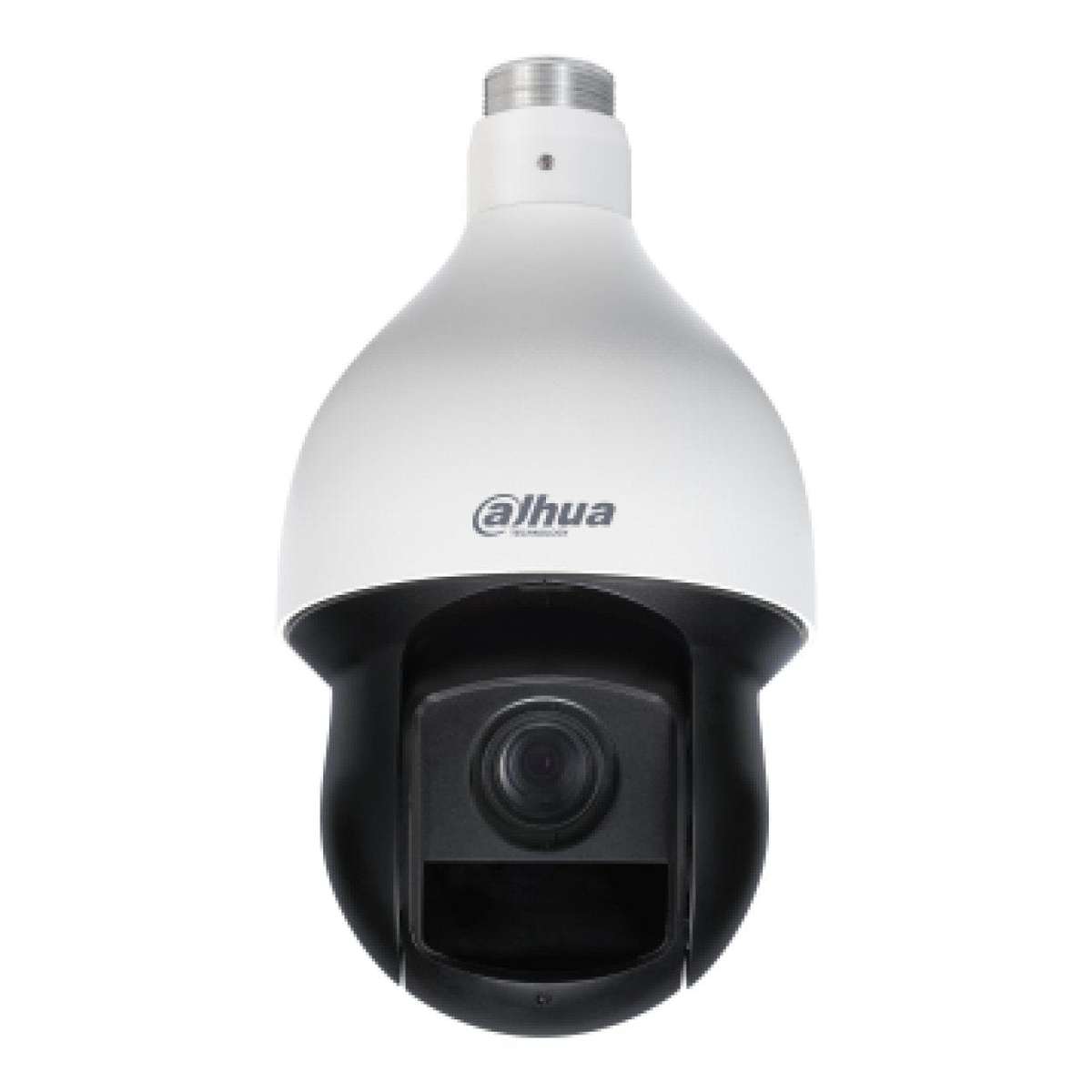

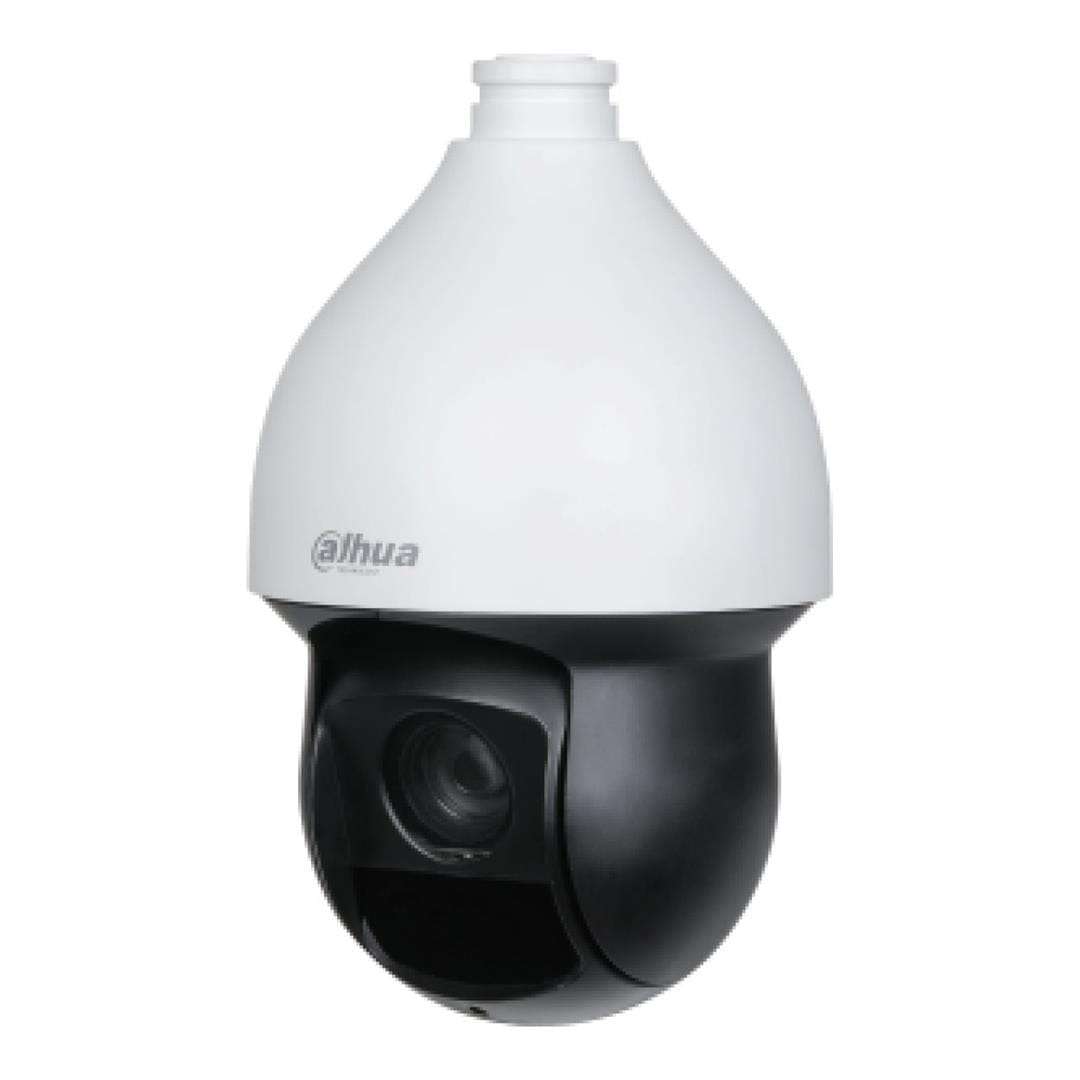

Dahua SD59225DB-HC 2MP 25x 150m Starlight IR HDCVI PTZ Camera
With its powerful optical zoom, and accurate pan and tilt capabilities, the HDCVI PTZ camera series provides an all-in-one solution for largescale monitoring. It harnesses the latest starlight technology, allowing it to produce highly detailed images even in low light conditions. These cameras offer smooth control and high-grade protection that enable them to meet the requirements of video surveillance in small and medium-sized scenes.
Starlight Technology
With advanced image processing technology and optical technology, Dahua Starlight technology can provide clear colorful video in the environment of low illuminance. It widely applies to various environments of low illuminance.
3DNR
Dahua's 3DNR technology reduces image noise with little to no impact on image sharpness, especially in poor lighting conditions. It detects the noise, and compares the sequential frames to effectively reduce the noise. It also makes efficient use of bandwidth, saving on storage space.
Long Distance Transmission
HDCVI technology provides long distance transmission in real time without transmission loss. It supports transmission distances up to 300m for 2MP HD videos through coaxial cables, and up to 200m through UTP cables.
3 Signals over 1 Coaxial Cable
HDCVI technology supports 3 signals (video, audio* and data) which are simultaneously transmitted over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform various actions such as sending control signals and triggering alarms. * Audio input is available for select HDCVI camera models.
Wide Dynamic Range
The camera produces vivid images, even in high-contrast lighting conditions, by using industry-leading wide dynamic range (WDR) technology. For scenes that quickly alternate between bright and low lighting, WDR adjusts to fully capture both the bright and dark areas of a scene, producing superior quality videos.
PFA Technology
PFA technology has introduced new methods of judgment that ensure the accuracy and predictability of the direction of subject distance adjustment. The result is a set of advanced focusing algorithms that ensure image clarity when zooming and that shorten focus time. This makes the camera highly advanced in its functions, substantially improving the quality of your experience.
Protection (IP66, TVS 6000 V)
IP66, TVS 6000 V lightning proof, surge protection, and voltage transient protection.
Specifications:
Image Sensor: 1/2.8" CMOS
Pixel: 2 MP
Max. Resolution: 1920 (H) × 1080 (V)
ROM: 128 MB
RAM: 256 MB
Electronic Shutter Speed: 1/3 s—1/30,000 s
Scanning System: Progressive
Min. Illumination:
Illumination Distance: 150 m (492.13 ft) (IR)
Illuminator On/Off Control: Zoom Prio; manual
Illuminator Number: 4 (IR)
Lens
Focal Length: 4.8 mm—120 mm
Max. Aperture: F1.6—F3.5
Field of View
Optical Zoom: 25×
Focus Control: Auto; semi-auto; manual
Close Focus Distance: 0.1 m—2 m (0.33 ft—6.56 ft)
Iris Control: Auto; manual
Pan/Tilt Range
Manual Control Speed
Preset Speed
Preset: 300
Tour: 8 (up to 32 presets per tour)
Pattern: 5
Scan: 5
Power-off Memory: Yes
Idle Motion: Pattern;Preset;Scan;Tour
PTZ Protocol
Video
Resolution: 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480)
Video Frame Rate: 1080p (25/30 fps); 720p (25/30/50/60 fps)
Day/Night: Yes
BLC: Yes
WDR: 120dB
HLC: Yes
White Balance: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control: Auto; manual
Noise Reduction: 2D NR; 3D NR
Defog: Electronic
Digital Zoom: 16×
Image Rotation: 180°
Privacy Masking: Yes
S/N Ratio: 50 dB
Analog Output: 1 channel (CVBS/CVI output, BNC)
RS-485: 1 (baud rate range: 1200 bps—9600 bps)
Audio Input: 1 channel (LINE IN, bare wire)
Alarm Input: 2 (on-off value input: 0—5 VDC)
Alarm Output: 1
Alarm Linkage: Scan; preset; tour; pattern; alarm digital output
Alarm Event: Alarm input
