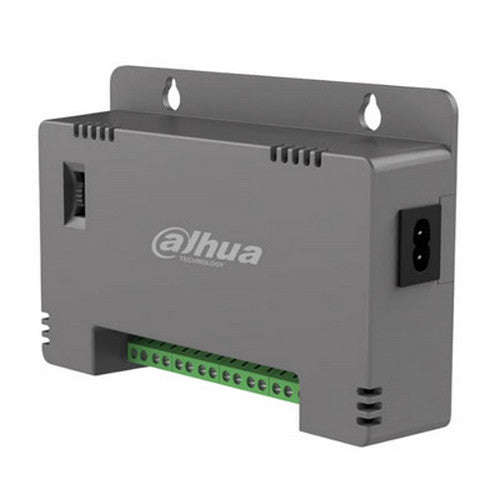

Dahua Switching Power Supply

Function

Input Voltage

100 VAC240 VAC

Output Voltage

Normal: 12 VDC
Long: 13.5 VDC
Ex-Long: 15 VDC

Rated Output Current

Normal: 5 A
Long: 4.5 A
Ex-Long: 4 A

Rated Power

Output power: 12 W (for one channel)
Total power: 60 W

Power Consumption In Idle

0.21 W

Efficiency

88%

Port

Input Port

2-core female seat C8, with European standard cable

Output Plug

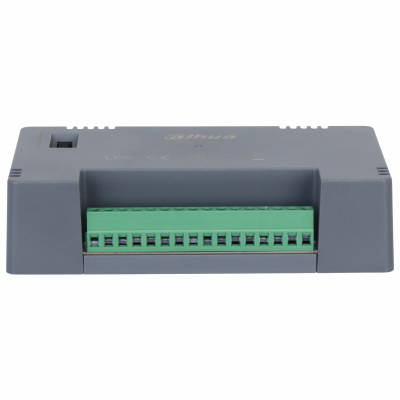

8 channel output terminal

Protection

Types of Protection

Overcurrent protection, short circuit protection and overvoltage protection

Surge Protection Grade

Common mode: ±4 kV
Differentiate mode: ±2 kV

Statics Protection

Air discharge: ±8 kV
Contact discharge: ±6 kV

Structure

Installation

Wall mount

Product Dimensions

140.1 mm × 94.5 mm × 34.2 mm (5.52" × 3.72" × 1.35") (L × W × H)

Appearance Color

Gray

Net Weight

0.27 kg (0.60 lb)

Gross Weight

0.35 kg (0.77 lb)

Packaging Dimensions

143 mm × 41 mm × 144 mm (5.63" × 1.61" × 5.67") (L × W × H)

Input Cable Length

1000 mm (39.37")

Environment

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F)

Operating Humidity

10%90% (RH)

Storage Temperature

40 °C to +80 °C (40 °F to +176 °F)

Storage Humidity

5%95% (RH)

Certifications

Certifications

CE
