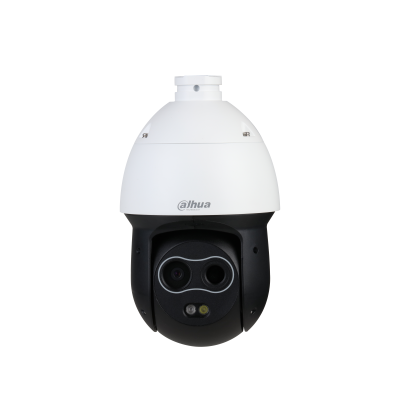

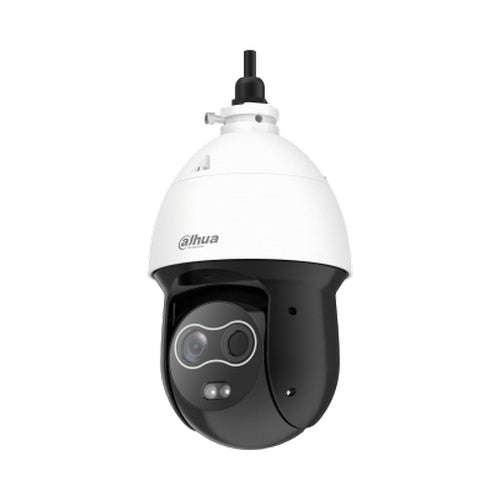

Dahua Thermal Network Hybrid Speed Dome Camera 35m

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

256 (H) × 192 (V)

Pixel Pitch

12 m

Spectral Range

8 m14 m

Sensitivity (NETD)

40 mK@f/1.0

Focal Length

3.5 mm; 7 mm; 10 mm

Field of View

3.5 mm: H: 50.6°; V: 37.8°

7 mm: H: 24°; V: 18°

10 mm: H: 17.3° V: 13.1°

Thermal Focus Control

Fixed-focal

Close Focus Distance

3.5 mm: 0.5 m (1.64 ft)

7 mm: 1 m (3.28 ft)

10 mm: 1 m (3.28 ft)

Detection Distance

3.5 mm: Vehicle: 449 m (1,472.17 ft);

Human: 146 m (479.00 ft)

7 mm: Vehicle: 897 m (2,944.34 ft);

Human: 292 m (958.01 ft)

10 mm: Vehicle: 1,282 m (4,206.20 ft);

Human: 416 m (1,364.83 ft)

Recognition Distance

3.5 mm: Vehicle: 110 m (361.10 ft);

Human: 38 m (124.67 ft)

7 mm: Vehicle: 220 m (722.20 ft);

Human: 75 m (246.06 ft)

10 mm: Vehicle: 314 m (1,031.71 ft)

Human: 107 m (351.05 ft)

Identification Distance

3.5 mm: Vehicle: 56 m (182.27 ft);

Human: 19 m (62.34 ft)

7 mm: Vehicle: 111 m (364.54 ft);

Human: 38 m (124.67 ft)

10 mm: Vehicle: 159 m (520.77 ft);

Human: 53 m (173.88 ft)

Note:

Detection Distance: Detects objects, but cannot recognize their characteristics

(objects must cover more than 3.6 pixels of the image).

Recognition Distance: Classifies objects into general categories, such as human,

vehicle (the object must cover more than 14 pixels of the image).

Identification Distance: Classifies objects into specific categories based on their

characteristics, such as engineering truck, car (the object must cover more than 28

pixels of the image).

Digital Detail Enhancement (DDE)

Yes

Digital Zoom

16 levels

Thermal AGC

Auto/Manual

Thermal Noise Reduction

2D NR/3D NR

Image Flip

180°

Color Palettes

18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)

Visible

Image Sensor

1/2.7" CMOS

Max. Resolution

2336 (H) × 1752 (V)

Pixel

4 MP

Horizontal Definition

1600 TVL

Min. Illumination

Color: 0.05 lux
B/W: 0.005 lux
0 lux (IR on)

Visible AGC

Auto/Manual

Visible Noise Reduction

2D NR/3D NR

S/N Ratio

55 dB

White Balance

Auto; indoor; outdoor; tracking; manual; natural; street lamp

Defog

Electronic defog

Electronic Shutter Speed

1 s1/30,000 s (auto/manual)

BLC

Yes

WDR

DWDR

HLC

Yes

Day/Night

Auto (ICR); Color; B/W

Iris Control

Fixed

Image Flip

180°

Exposure Compensation

Yes

Visible Focus Control

Fixed-focal

Focal Length

4 mm; 8 mm; 12 mm

Field of View

4 mm: H: 71.2°; V: 52°

8 mm: H: 33.4°; V: 25°

12 mm: H: 22...
