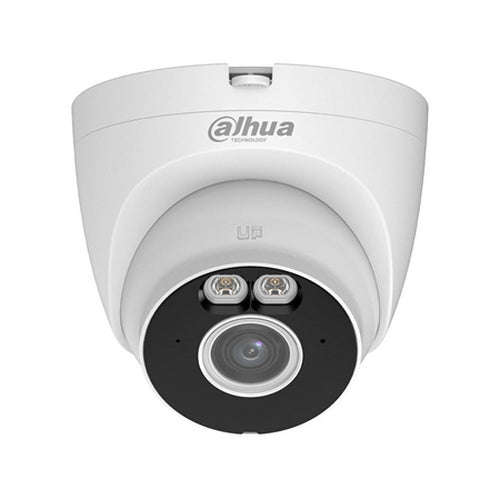

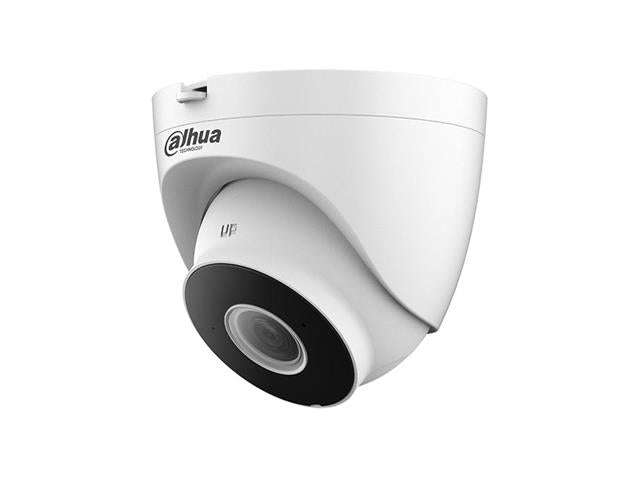

Dahua WiFi Dome IP Camera 4MP 2.8mm Lens, 30m IR

Dahua WiFi Dome IP Camera 4MP 2.8mm Lens, 30m IR

• 4-MP 1/3" CMOS image sensor, low luminance, and high definition image.
• Outputs max. 4 MP (2560 × 1440) @20 fps, and max.supports 3 MP (2304 × 1296) @25 fps/30 fps.
• H.265 codec, high compression rate, ultra-low bit rate.
• Built-in IR LED, and the max. illumination distance is 30 m.
• SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
• DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
• Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access.
• Built-in dual-antenna 2.4G Wi-Fi that covers a range of up to 120 m in an open area.
• Supports max.256 G Micro SD card. Built-in MIC and speaker.
• 12 VDC power supply.
• IP67 protection.

• Camera

  • Image Sensor : 1/3" CMOS
  • Max. Resolution : 2560 (H) × 1440 (V)
  • ROM : 16 MB
  • RAM : 64 MB
  • Scanning System : Progressive
  • Electronic Shutter Speed : Auto/Manual 1/3 s1/100,000 s Min. Illumination:
    • 0.03 Lux@F2.0 (Color, 30 IRE)
    • 0.003 Lux@F2.0 (B/W, 30 IRE)
    • 0 lux (Illuminator on)
  • S/N Ratio : > 56 dB
  • Illumination Distance 30 m (98.43 ft)
  • Illuminator On/Off Control Auto; Manual
  • Illuminator Number 1 (IR LED)
    • Pan/Tilt/Rotation Range Pan: 0°360°
    • Tilt: 0°78°
    • Rotation: 0°360°

  Lens

  • Lens Type : Fixed-focal
  • Lens Mount : M12
  • Focal Length : 2.8 mm
  • Max. Aperture : F2.0
  • Field of View : 2.8 mm : Horizontal: 90°; Vertical: 50°; Diagonal: 107° Iris Control Fixed
  • Close Focus Distance : 2.8 mm: 1.0 m (3.28 ft)

  DORI Distance

  • Lens : 2.8 mm
  • Detect :  68.0 m (223.10 ft)
  • Observe : 27.2 m (89.24 ft)
  • Recognize : 13.6 m (44.62 ft)
  • Identify : 6.8 m (22.31 ft)

  Video

  • Video Compression : H.264B; H.264; H.264H; H.265
  • Smart Codec Smart : H.265+; Smart H.264+
  • Video Frame Rate
    • Main stream:
      • 2560 × 1440 (120 fps)
    • Sub stream:
      • 640 × 480@(125 fps)
      • 640 × 480@(130 fps)
    • *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
  • Stream Capability : 2 streams
  • Resolution : 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296);
  • 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 ×
  • 720)
  • Bit Rate Control : CBR/VBR
  • Video Bit Rate
    • H264: 24 kbps4096 kbps
    • H265: 9 kbps4096 kbps
  • Day/Night : Auto (ICR)/Color/B/W
  • BLC : Yes
  • WDR : DWDR
  • White Balance : Auto; natural; street lamp; outdoor; manual; regional custom
  • Gain Control : Auto
  • Noise Reduction : 3D NR
  • Motion Detection : OFF/ON (4 areas, rectangular)
  • Smart Illumination : Yes
  • Image Rotation : 0°/180°
  • Mirror : Yes

  Audio

  • Built-in MIC : Yes
  • Built-in Speaker : Yes
  • Audio Compression : G.711a; G.711Mu

  Alarm

  • Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; intensity change; SMD (human)

  Network

  • Network Port : RJ-45 (10/100 Base-T)
  • Wi-Fi : IEEE802.11b/g/n 2.42.4835 GHz; 2.4 G
  • Wireless Range : Up to 120 m (The performance varies based on
  • actual environment)
  • SDK and API : Yes
  • Cyber Security :
  • Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
  • Network Protocol : IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP
  • Interoperability : ONVIF (Profile S/Profile T); CGI; P2P
  • User/Host : 6 (Total bandwidth: 36 M)
  • Storage : Micro SD card (support max. 256 GB) Browser
    • IE
    • Chrome
    • Firefox
  • Management Software Smart PSS; DSS; DMSS
  • Mobile Client iOS; Android

  Power

  • Power Supply : 12 VDC
  • Power Consumption :
  • Basic: 2 W (12 VDC)
  • Max. (H.265 + IR intensity): 6.1 W (12 VDC)

  Environment

  • Operating Temperature : 30 °C to +60 °C (22 °F to +140 °F)
  • Operating Humidity : 95%
  • Storage Temperature : 30 °C to +60 °C (22 °F to +140 °F)
  • Protection : IP67

  Structure

  • Casing :
    • Inner core: Metal + Plastic
    • Cover: Plastic
  • Product Dimensions : Ø109.9 mm × 102.2 mm (Ø4.33" × 4.02")
  • Net Weight : 352 g (0.77 lb)
  • Gross Weight : 530 g (1.17 lb)
