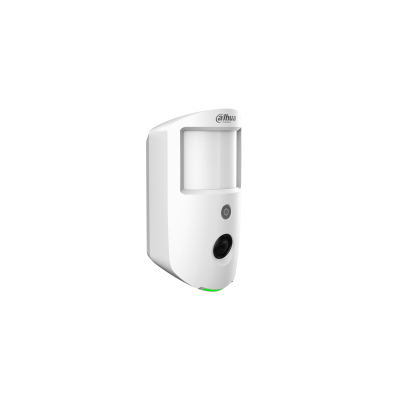

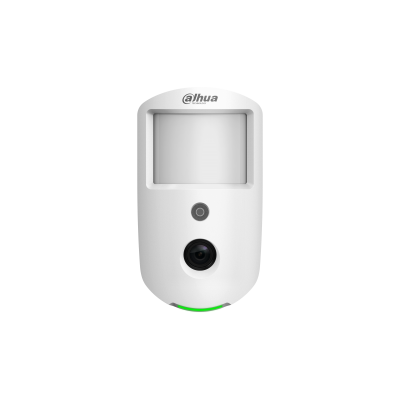

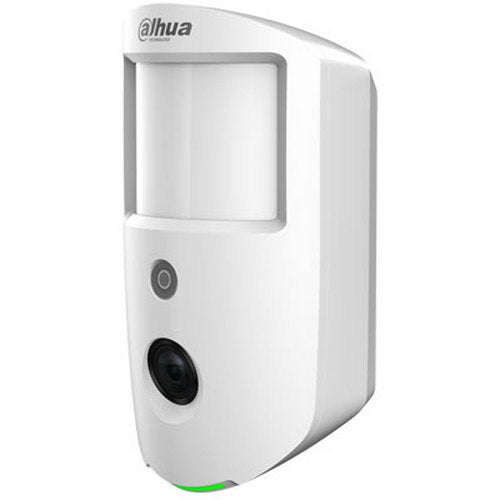

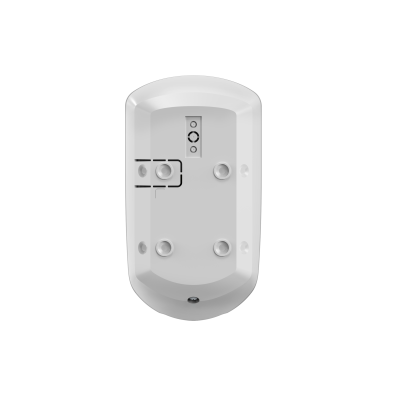

Dahua Wireless PIR-Camera

Video & Audio

Field of View

88° (H); 68° (V

Image Type

JPEG

Resolution

1600 × 1200; 1280 × 960; 640 × 480; 320 × 240

Frame Rate

2

Illumination Mode

Infrared Light

Illumination Range

12 m (39.37 ft)

Day/Night Switch

Color/Black & White

Function

Indicator Light

1 × green alarm indicator

Button

1 × power switch

Remote Update

Cloud update

Low Battery Detection

Yes

Tamper

Tamper alarm

Technical

Detection Mode

PIR

Sensitivity

3 levels adjustable

Detection Range

12 m (39.37 ft) (86°) with installation height of 2.2 m (7.22 ft)

Detection Speed

0.3 m/s3 m/s (0.98 ft/s9.84 ft/s)

Pet Immunity Level

18 kg (39.68 lb)

White Light Resistance Level

2000 lux

Two-way Digital Temperature Compensation

Yes

Scenario

Indoor

Operating Current

2 A (Max), 65 uA (Standby) (Battery 3V)

Wireless

Carrier Frequency

RF: 868.0 MHz868.6 MHz

RF-HD: 2.4 GHz (Upload images at high speed)
865.340 MHz866.66 MHz (Upload images at normal speed)

Transmitter Power (EIRP)

Limit 25 mW

Communication Mechanism

Two-way

Communication Distance

RF: Up to 1,600 m (5,249.34 ft) in an open space

RF-HD:
Upload images at high speed: Up to 300 m (984.25 ft) in an open space
Upload images at normal speed: Up to 1,600 m (5,249.34 ft) in an open space

Encryption Mode

AES128

Frequency Hopping

Yes

General

Power Supply

CR123A*3

Battery Life

4 years (if triggered twice a week with a battery efficiency of 70%)

Power Consumption

6 W (Max), 0.2 mW (Standby)

Operating Temperature

10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%90% (RH)

Product Dimensions

71.0 mm × 53.2 mm × 127.6 mm (2.80" × 2.09" × 5.02")

Net Weight

202 g (0.45 lb)

Gross Weight

333 g (0.73 lb)

Installation

Wall mount

Protection

PC + ABS

Certifications

CE
EN 50131-1:2006 + A1:2009 + A2:2017 + A3:2020
EN 50131-2-2:2021
EN 50131-6:2017
EN 50131-5-3:2017
EN 50130-4:2011 + A1:2014(+)
Security Grade 2
Environmental Class II

Anti-corrosion Level

Basic Protection

Storage Temperature

10 °C to +55 °C (+14 °F to +131 °F)

Storage Humidity

10%90% (RH)

Packaging Dimensions

121.0 mm × 65.0 mm × 170.0 mm (4.76" × 2.56" × 6.69") (L × W × H)

Wi-Fi

Wi-Fi Standard

802.11b/g/n

Wi-Fi Frequency Range

2400-2483.5MHz
