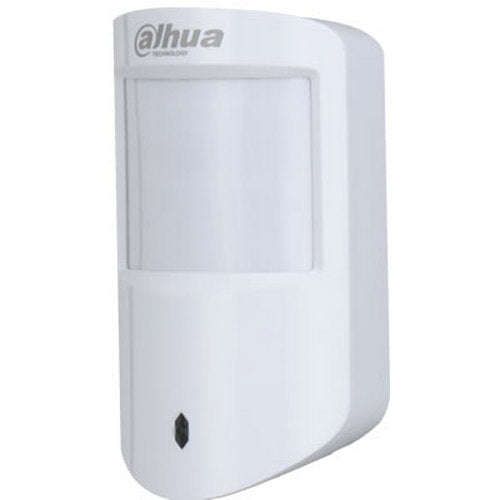

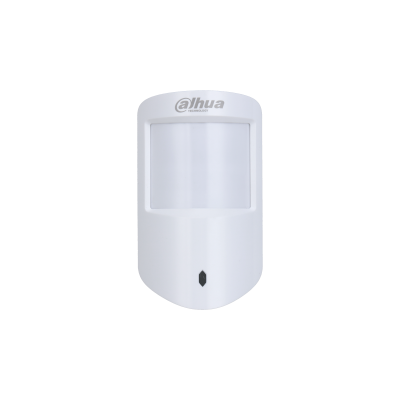

Dahua Wireless PIR detector

Function

Indicator Light

1 × green alarm indicator

Button

1 × power button

Remote Update

Cloud update

Low Battery Detection

Yes

Tamper

Yes

Measuring Range (Temperature)

15 °C to +65 °C (+5 °F to +149 °F) (indoor)

Technical

Sensor

Dual elements low-noise PIR sensor

Detection Mode

PIR

Sensitivity

3 levels adjustable

Detection Range

12 m (39.37 ft) (90°) with installtion height of 2.2 m (7.21 ft)

Detection Speed

0.3 m/s3 m/s (0.98 ft/s9.84 ft/s)

Pet Immunity Level

18 kg (39.68 lb)

White Light Resistance Level

2000 lx

Two-way Digital Temperature Compensation

Yes, no attenuation of detection distance in high temperature

Test Mode

Yes

Wireless

Carrier Frequency

868.0 MHz868.6 MHz

Transmitter Power (EIRP)

Limit 25 mW

Communication Mechanism

Two-way

Communication Distance

Up to 1,600 m (5,249.34 ft) in an open space

Encryption Mode

AES128

Frequency Hopping

Yes

General

Power Supply

CR123A battery

Battery Life

4 years

Power Consumption

Max. 120 mW

Operating Temperature

10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Operating Humidity

10%90% (RH)

Product Dimensions

104.0 mm × 60.0 mm × 50.0 mm (4.09" × 2.36" × 1.97") (L × W × H)

Net Weight

100 g (0.22 lb)

Gross Weight

170 g (0.37 lb)

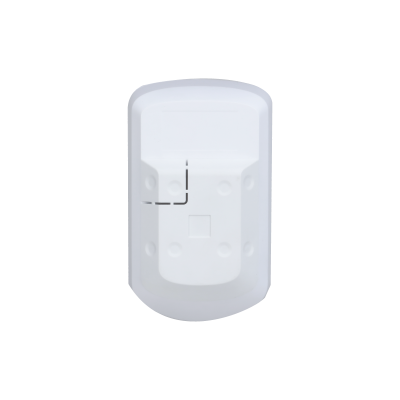

Installation

Wall mount

Casing Material

PC + ABS

Certifications

CE
EN 50131-1:2006+A1:2009+A2:2017+A3:2020
EN 50131-2-2:2017
EN 50131-6:2017
EN 50131-5-3:2017
Security Grade 2
Environmental Class II

Anti-corrosion Level

Basic Protection

Storage Temperature

10 °C to +55 °C (+14 °F to +131 °F) (indoor)

Storage Humidity

10%90% (RH)

Packaging Dimensions

135.0 mm × 98.5 mm × 56.8 mm (5.31" × 3.88" × 2.24") (L × W × H)
