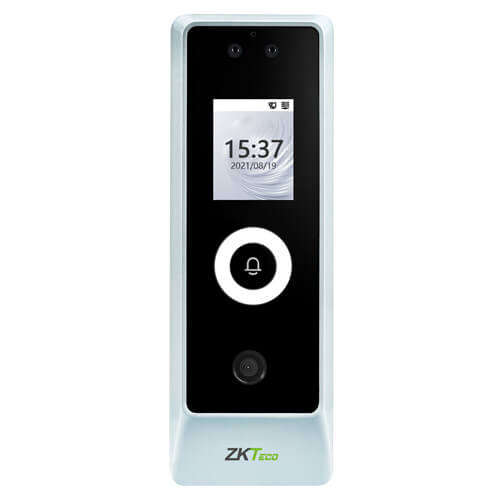

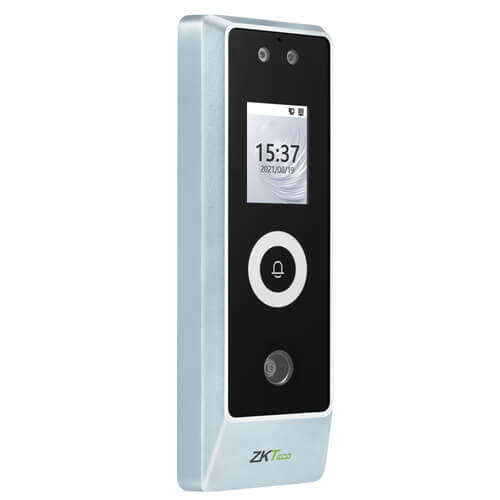

Dahua ZKTeco ProMA Stand Alone Access Control Device
ProMA is a high-end outdoor multi-biometric access control standalone terminal built with ultra-robust aluminum alloy casted casing.
ProMA series enhance its protection level to reach water and dust proof standard (IP66) and vandal proof standard (IK07). There are three models under ProMA series, which have equipped with different authentication combinations, facial recognition, fingerprint recognition and multi-tech RFID recognition, named as ProMA-QR (Face, QR code, RFID), ProMA-RF (Face+RFID), ProMA (Face, Fingerprint, RFID). Additionally, the latest touchless palm recognition is also available in this terminal as a customized feature.
Despite its compact size, these terminal's authentication template capacity is top notch in the industry, which supports up to 10,000 fingerprint / 30,000 face / 5,000 palm / 50,000 RFID. Besides, the authentication speed of these terminals is stunning, facial recognition speed of less than 0.3 sec per face, touchless palm recognition performed in 0.35 per hand, and completed RFID recognition in 0.2 sec, all these incredible features making them a perfect choice for most application scenes. The series supports the ZKTeco PUSH communication protocol and fully integrates with ZKBio CVSecurity and the latest hybrid biometric technology.
Capacity
Fingerprint: 10,000 (Only ProMA)
Face: 30,000 (Optional: 50,000 only ProMA-QR & ProMA-RF)
Palm: 5,000(Customized)
Cards: (Optional: 100,000 only ProMA-QR & ProMA-RF)
Transactions: 500,000
Hardware
1.0GHz Quad Core CPU
Memory 1G RAM / 8G Flash
BioID+ Fingerprint Sensor (Available on ProMA only)
QR code Sensor (Available on ProMA-QR only)
2.0 Inches color TFT Monitor
Hi-Fi Voice & Indicator Tamper Switch Alarm
Optional Functions
Palm recognition
PoE IEEE 802.3af/ at(external)
HID Proxy / iClass / multi-tech Card module
Scramble QR code recognition (Supports: PDF417, Data Matrix, MicroPDF417, Aztec,
available on ProMA-QR only)
Communication
1* TCP/IP ( TLS1.2, AES-256 end to end secured communication channel)
1* Wiegand input/Output
1*Standard RS485 / OSDP V2.1.7 over RS485 (AES-128, OSDP V2.1.7 Secured Channel)
Standard Function
On-board Web server function
Access Levels / Groups / Holidays
DST / Bell Schedule /14-digit User ID
Duress Mode / Tamper Switch Alarm, Multiple Anti-Passback
Access Control Interface
1* Lock Relay Output
1* Alarm Output / Auxiliary Input
1* Exit Button / Door Sensor
1* Doorbell Output
Compatibility
Security Relay Box: DM10
Wiegand / OSDP/ RS485 / RS232 Slave Reader with FP / RFID / QR-code
Software: ZKBio CVSecurity /ZKBioTalk
Mobile App: ZSmart
SIP Protocol: VT07-B01
Special Functions
IP66 (water & dust proof)
IK07 (vandal proof)
0.3s High Speed Facial Recognition
Fully complied with ZKCSBL (ZKTeco Cyber Security Base Line)
Video intercom
ONVIF Protocol (Compatible with Pro le S, Pro le T, Pro le G, Pro le C, Pro le Q & Pro le A)
Additional Info
ZKFace v3.9& ZKFinger v10.0
ZKPalmVein12.0 Algorithms
Operating Temperature: -26 °C to 55 °C (-14.80°Fto 131°F)
Operating Humidity: 93%RH
Storage Temperature: -30 °C to 65 °C (-22°F to 149°F)
Storage Humidity: 93%RH
Dimensions(W*H*D): 68.7*194.7*28.3mm
Heavy duty aluminium alloy casing
RFID Module
ID: EM05
IC: IC08
ID&IC: B133
ID&IC&HID Prox / HID iclass: MTR30
BLE / NFC(coming soon)
Power
Operating Voltage: 12V DC
Current Draw: < 550mA
