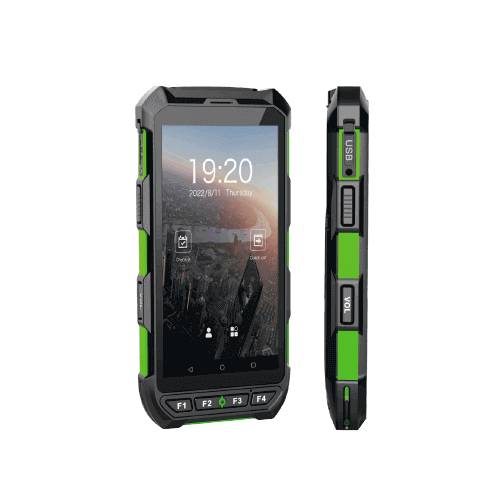

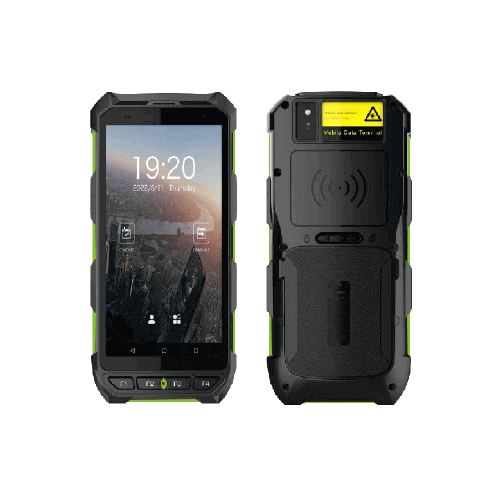

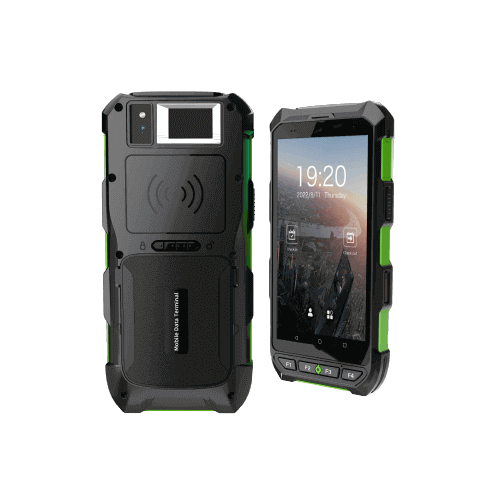

Dahua ZKTeco's Horus H1

Dahua ZKTeco's Horus H1

ZKTeco's Horus H1, a handheld mobile time and attendance terminal designed for versatile use. With the  rechargeable 5200mAh Li-ion battery, Horus H1 can operate for 5 hours without recharging. Also, the high-capacity  battery provides ample power to support Horus H1 to perform hybrid biometric verifications, including facial  recognition, fingerprint verification, NFC, and QR code management.

Parameters

• System



• Operation System

  Android 10.0

• CPU

  64bit Octa-core Cortex-A53 CPU, 2.0GHz

• Storage

  4GB RAM / 64GB ROM, Micro SD card (max 256GB expansion)

• SDK

  PUSH SDK

• Display

  5.5 inch IPS Capacitive LCD touch screen

• Screen Resolution

  720*1440

• Camera

  Dual Lens Rear camera (13 megapixels); Front camera (5 megapixels)

• QR Code & Barcode

  Dynamic QR codes on the ZKBioSecurity mobile application
  QR code, PDF417, Data Matrix, MicroPDF417, Aztec scanning in third-party development projects

• Supported Card Type

  ISO14443A &15693, NFC-IP1, NFC-IP2

• Communication



• 3G/4G

  TDD LTE Band 38, 39, 40, 41
  FDD LTE Band 1, 2, 3, 4, 5,7,8,12, 17, 20
  WCDMA (850 / 1900 / 2100MHz)
  GSM / GPRS / Edge (850 / 900 / 1800 / 1900MHz)

• WLAN

  2.4GHz/5.0GHz Dual Frequency
  IEEE 802.11 a/b/g/n/ac

• Bluetooth

  Bluetooth Class v2.1+EDR
  Bluetooth v3.0+HS
  Bluetooth v4.2

• GPS

  GPS (embedded A-GPS), Glonass (accuracy distance of 5m)

• Performance



• Card Reading Distance (NFC)

  3cm - 5cm max

• Biometric Authentications

  Face, Fingerprint (Optional)

• Facial Recognition Algorithm

  ZKFace 5.6.2

• Facial Recognition Distance

  0.3m to 2m

• Facial Recognition Speed

  < 1s

• Facial Recognition Accuracy Rate

  99%

• Fingerprint Sensor Type

  Semiconductor

• Fingerprint Comparison Time

  0.5s

• Capacity



• User Capacity

  50,000

• Face Capacity

  50,000

• Fingerprint Capacity

  30,000 (Optional)

• Logs Capacity

  1,000,000

• Interface

  1*USB 2.0 Type-C

• Protection level

  IP65

• Supported Software

  ZKBio Time 8.0, ZKBio Security, ZKBioCV Security

• Firmware Functions

  Push, Schedule Bell, Automatic Status Switch, Record Query, Groups, Holidays, DST, Workcode, Duress Mode (Password & Fingerprint), Customization of Wallpaper & Screen Saver

• Language

  English, Korean, Latin American, Indonesian, Vietnamese, Traditional Chinese, Portuguese, Spanish, Farsi, Japanese, Russian and Thai

• General



• Embedded Li-ion Battery

  5200mAh

• Casing Material

  ABS plastic, tempered glass surface

• Operating Temperature

  -20°C to 50°C (-4°F to 122°F)

• Storage Temperature

  -20°C to 70°C (-4°F to 158°F)

• Working Humidity

  <90% RH

• Storage Humidity

  <90% RH

• Operating Environment

  Outdoor

• Gross Weight

  400g

• Weigh with Packaging

  700g

• Dimensions (H*W*D)

  170mm*80mm*20mm (6.7in*3.1in*0.8in)

• Certifications

  ISO9001, ISO14001, CE, FCC
