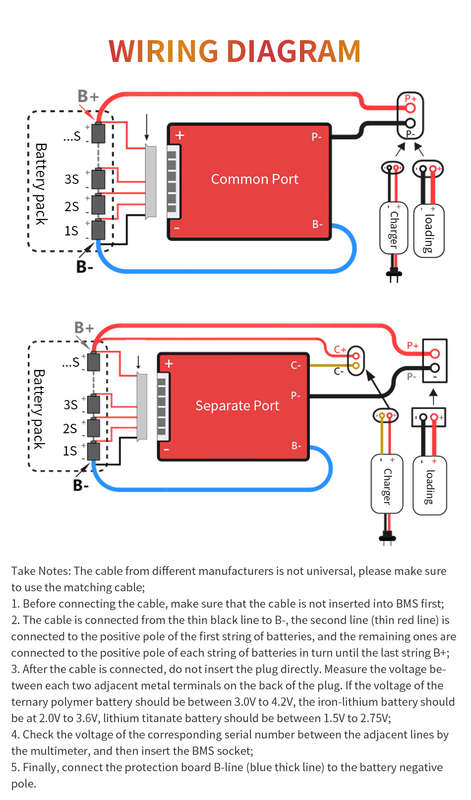

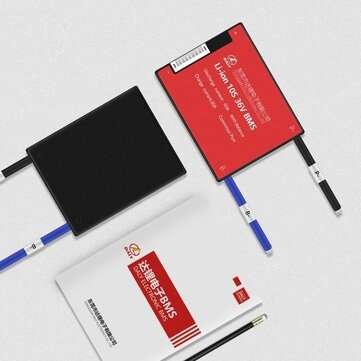

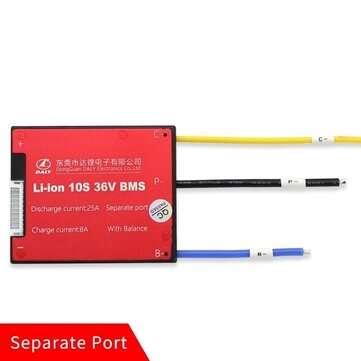

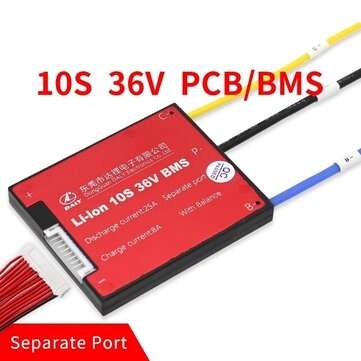

Description: Battery Protection BMS PCB Board 10Series 36V 20A continuous 50A peak for Li-Ion Li-Polymer Batteries With balance function Model: DL10S (3.7V rated Li-ION Battery not for 3.2V Rated LiFePO4) Separate Version : separate port for charge/discharge. We can customize any PCB from 1S to 30S lithium batteries with different current. Used for 36v 8ah, 36v 10ah, 36v 12ah, 36v 15ah, 36v 20ah,36v 25ah lithium battery.
Overview: aDL10S36V20A bms is used for 10series 36V battery pack. aWe can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc. aThe main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc. aAccording to the customer request we can develop PCM in different sizes and structures. aBMS manufactured by high quality Mos and IC imported . Keep your battery long cycle serivce life time.

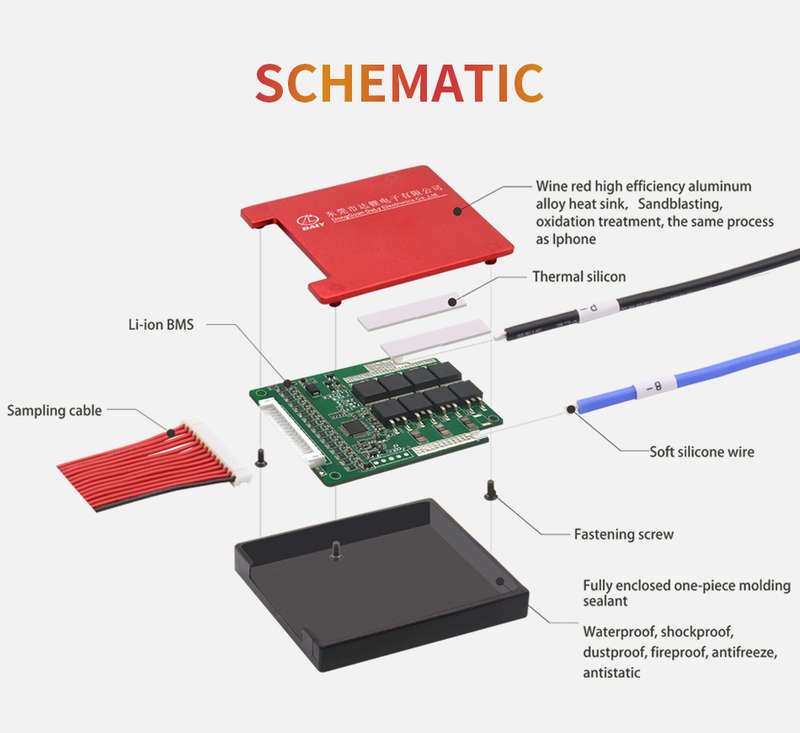

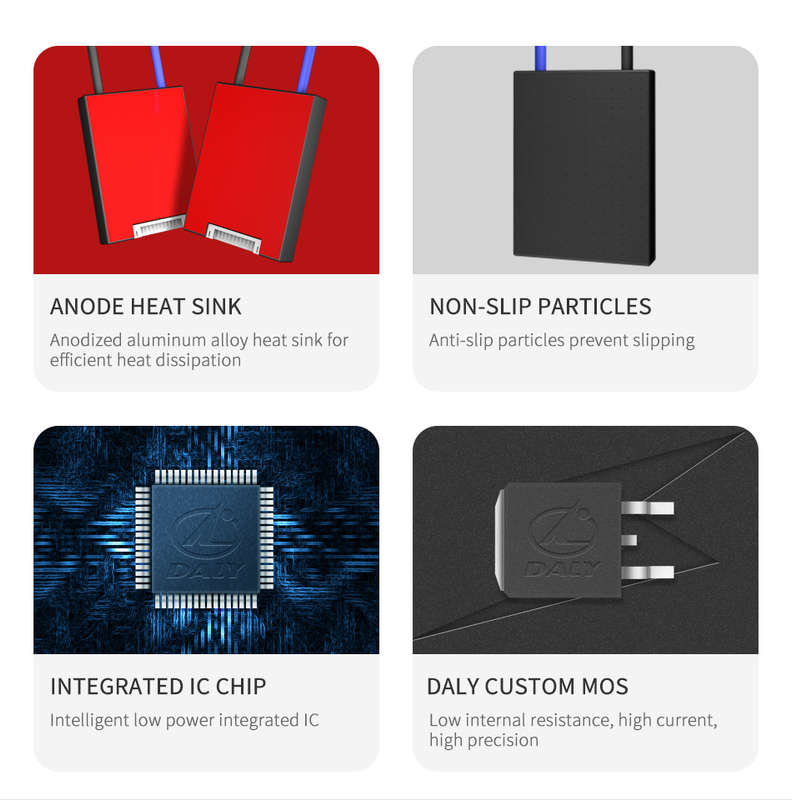

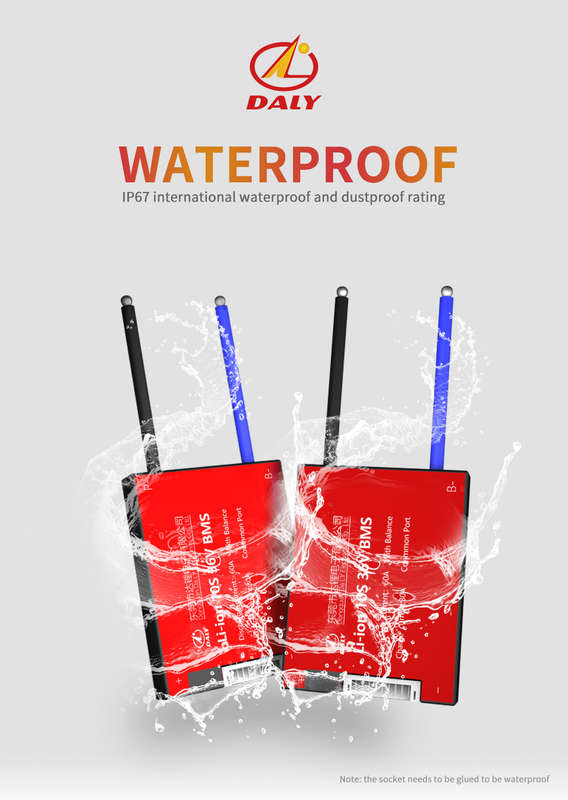

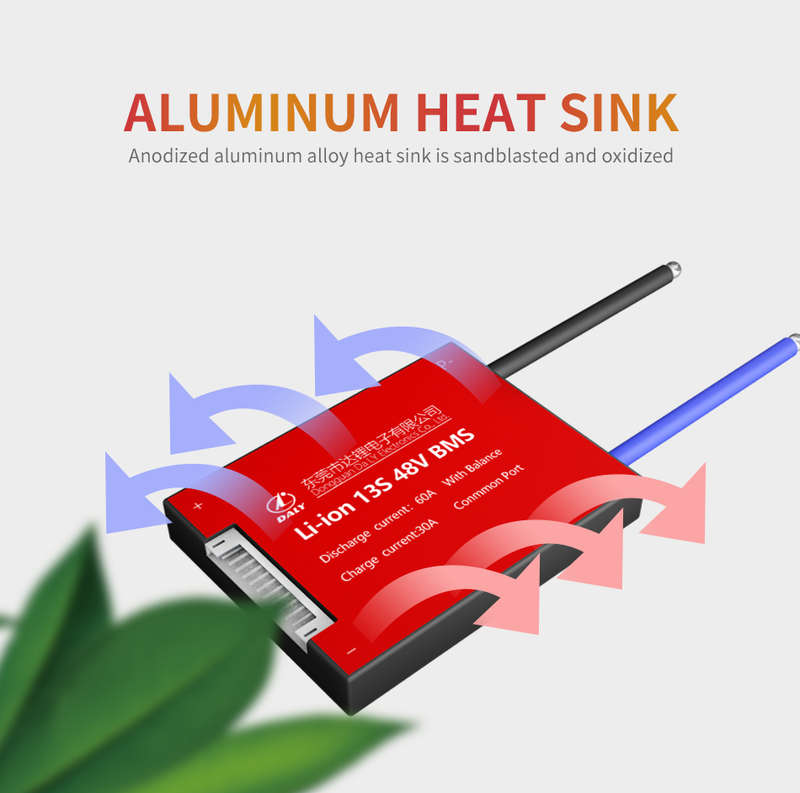

Features: aUse top quality (A-level) protective integrated circuit IC, from the solution of Japan. aStrong load ability, constant discharge current 20A , use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling. aIC itself has power balancing function. The circuit is simple and reliable. aTypical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long time short circuit of the load wonat affect the PCB and the battery.Temperature protection during charging and discharging. aExtreme low power consumption. The consumption of the whole device is less than 50uA. aPCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.

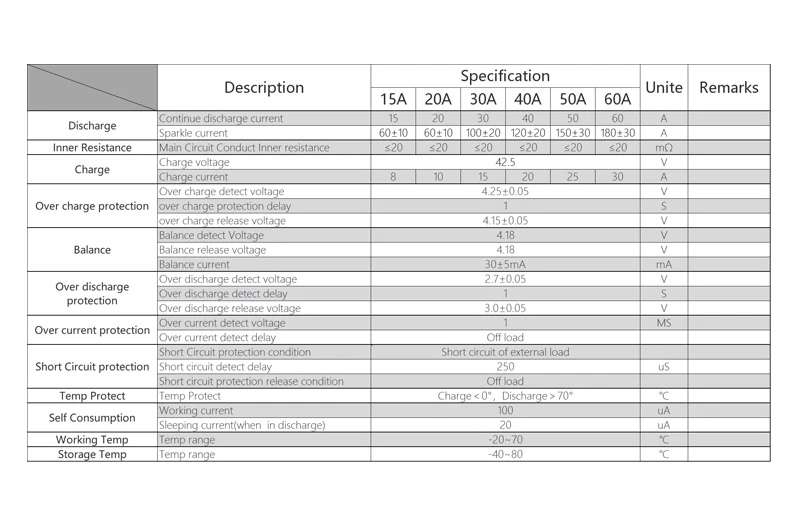

Specification: Brand Name: DALY Model Number: DL10S Applications: 3.7V lithium battery rated Battery series: 10S Over charge protection: Yes Over discharge voltage: Yes Short circuit protection: Yes Balance function: Yes Voltage: 36V Working Current: 20A Number in series: 10S Balanced Current: 30mA Application: 10S 36V li-ion battery Certification: CE/ FCC/ RoHS/PSE Accessory Type: Battery Accessories
Package included: 1 x Protection BMS PCB Board
