SELECTED OPTION:
TYPE: 60A48VCOMMONPORT

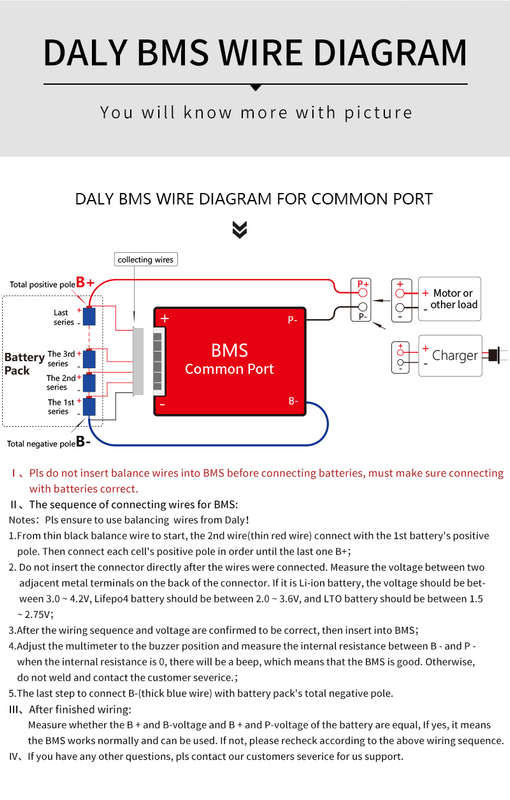

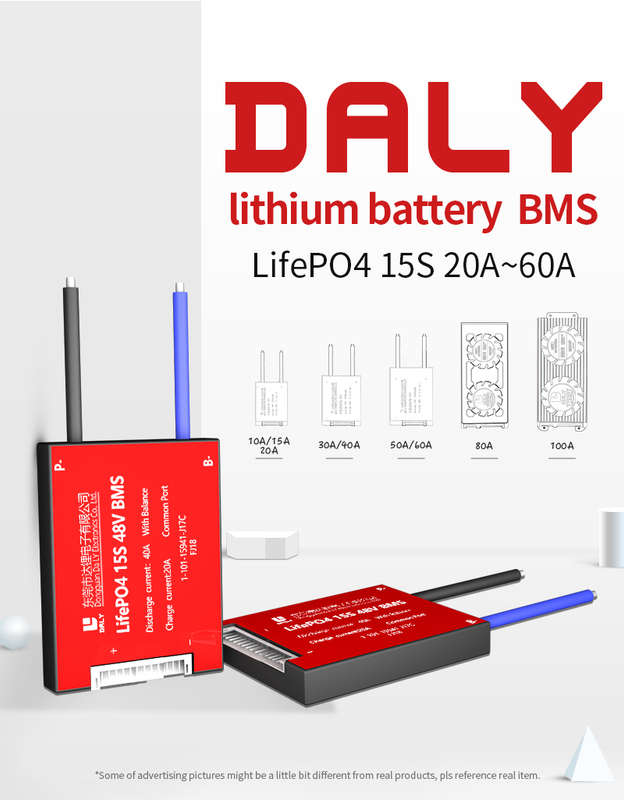

Description: Daly 3.2V 48v LiFePo4 15S bms 48V 15A 20A 30A 40A 50A 60A 18650 PCM battery protection board BMS with balanced lithium battery module Model: DL15S (3.2V Rated LiFePO4 Battery bms not for 3.7V rated Li-ION Battery bms) Common Version : common port for charge/discharge Separate Version : separate port for charge/discharge We can customize any PCB from 1S to 30S lithium batteries with different current. For the same model, its charge current is less than discharge current because Daly PCBAs were updated to well protect customer battery.

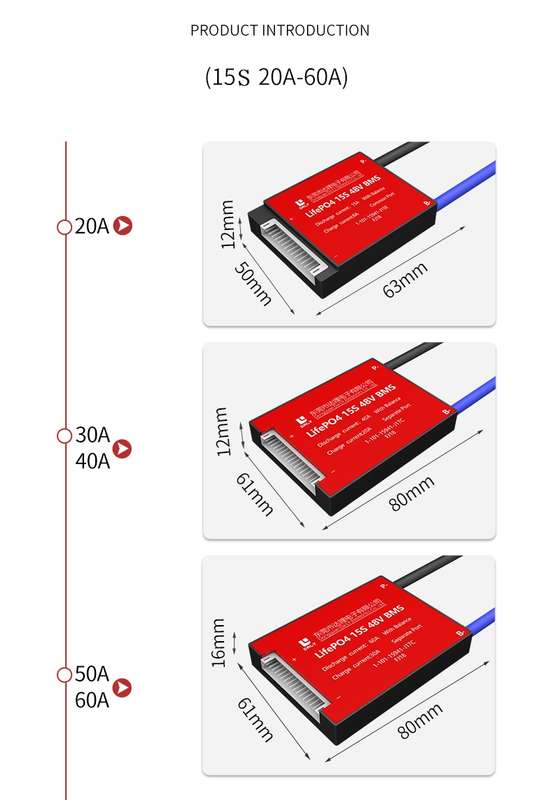

Overview: aDL 15S 48V 15A 20A 30A 40A 50A 60A PCB is used for 15 series 48V lifepo4 battery pack. aWe can design it for various lithium batteries like LiFepo4, LiMn2O4, and Li-polymer etc. aThe main functions are: over charge protection, over discharge protection, over current protection, short-circuit protection, temperature protection etc. aAccording to the customer request we can develop PCM in different sizes and structures. aBMS manufactured by high quality Mos and IC imported . Keep your battery long cycle serivce life time.

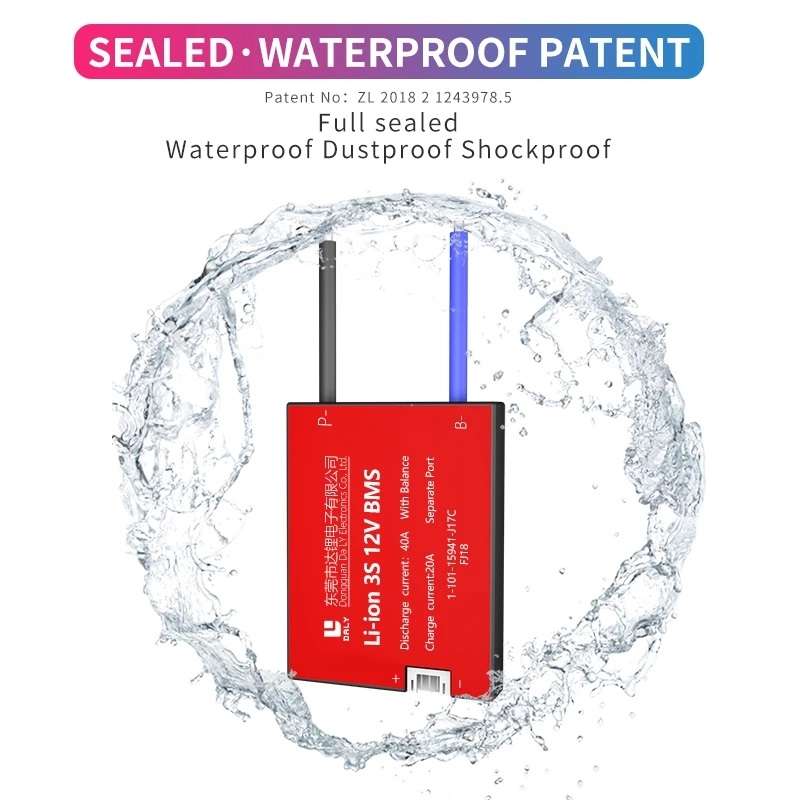

Features: aUse top quality (A-level) protective integrated circuit IC, from the solution of Japan. aStrong load ability, constant discharge current 15A 20A 30A 40A 50A 60A, use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling. aIC itself has power balancing function. The circuit is simple and reliable. aTypical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long time short circuit of the load wonat affect the PCB and the battery.Temperature protection during charging and discharging. aExtreme low power consumption. The consumption of the whole device is less than 50uA. aPCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.

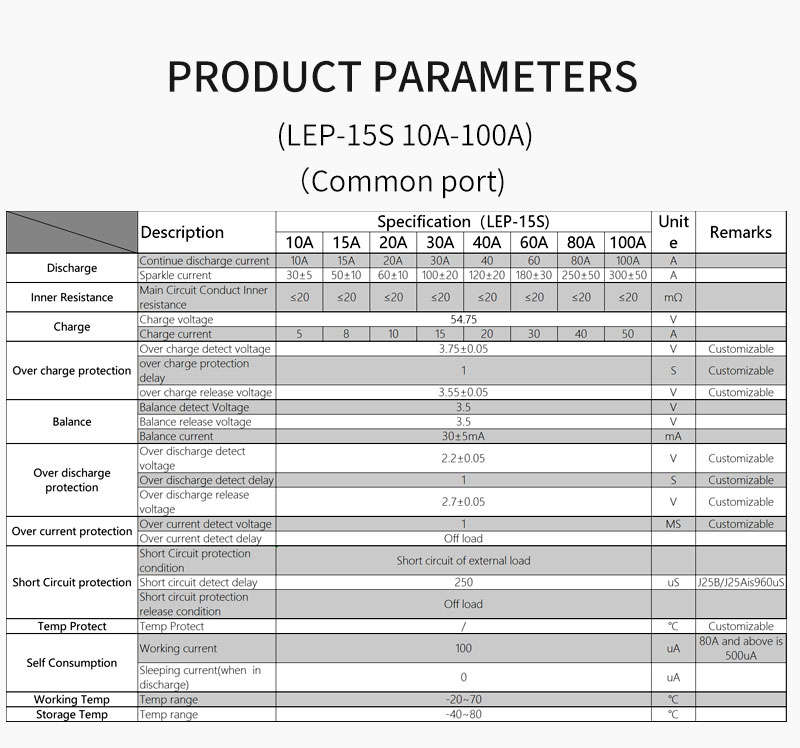

Specification: Brand Name: DALY Certification: CE/FCC/RoHS/PSE Accessory Type: Battery Accessories Model Number: DL15S Applications: 3.2V lithium battery rated Battery series: 15S Over charge protection: Yes Over discharge voltage: Yes Short circuit protection: Yes Balance function: Yes
Package included: 1 xBattery Protection Board
