DANIU HT106B EU Plug Socket Outlet Tester Circuit Polarity Voltage Detector Wall Plug Break Finder R

Features:

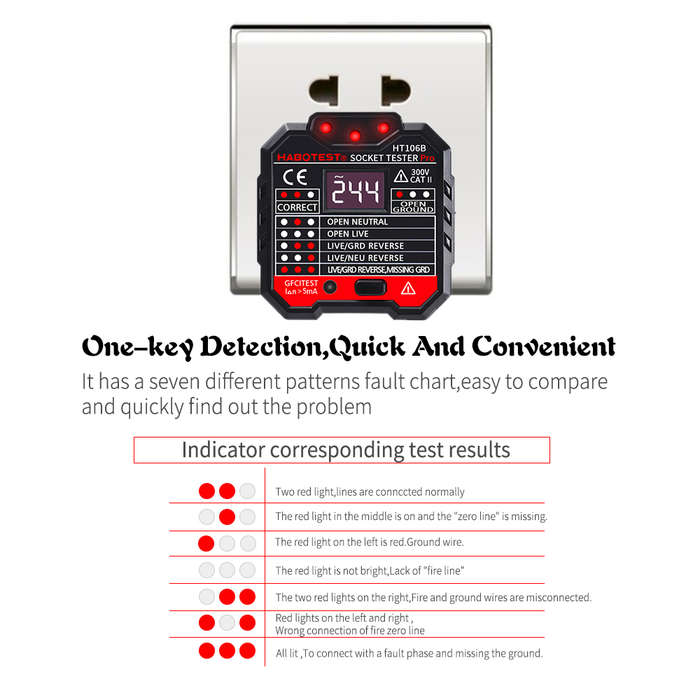

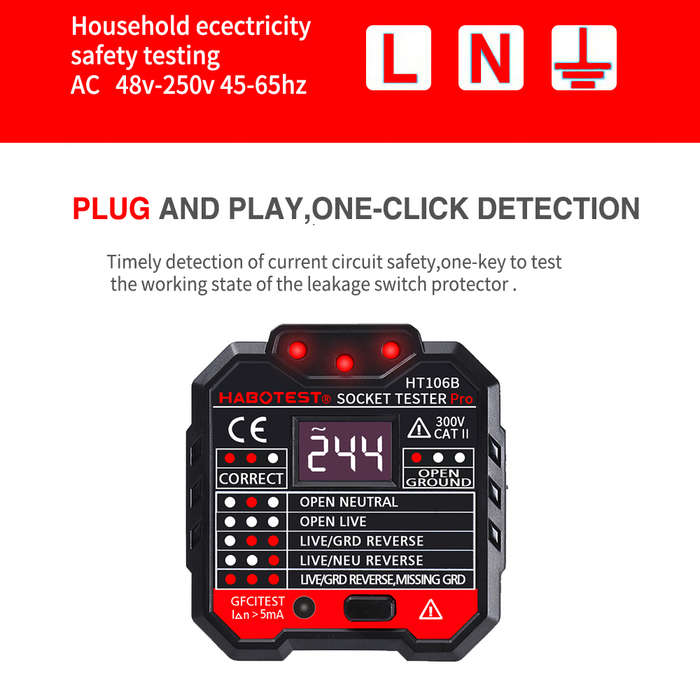

Socket Tester:
Socket tester is mainly used for power socket wiring detection and RCD test. It can detect the wiring status of the socket quickly and accurately. With LCD, it can also measure the voltage of the socket and display it.

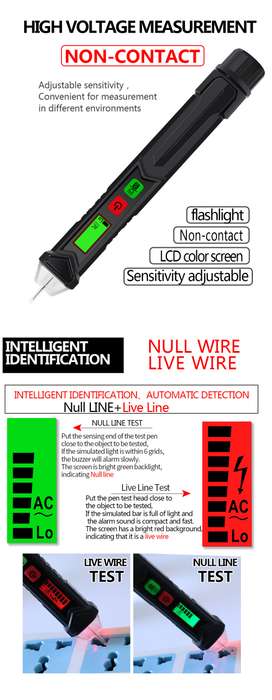

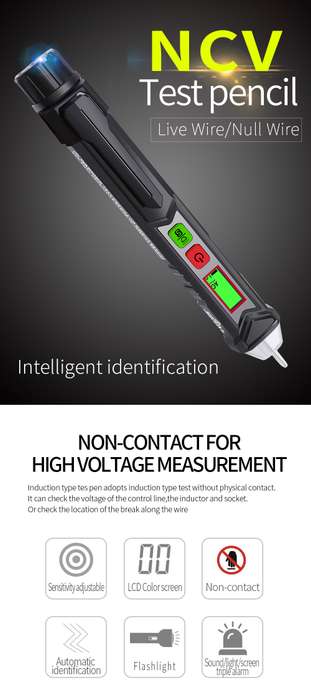

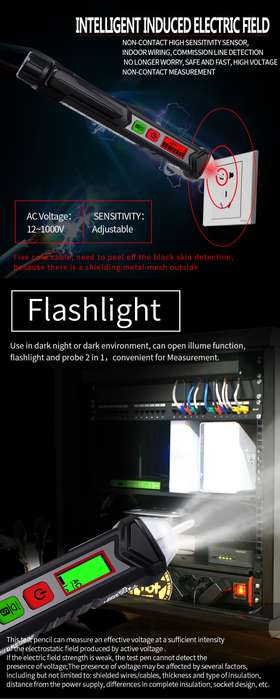

Voltage Tester pen:
Double Range Testing
LCD flashlight
Adjustable Sensibility
Non-contact Tip
Breakpoint Checking
Live wire measurement
Full wire measurement
Auto power off
Auto indication
Red and Green Double color Backlight

Specification:

Socket Tester: a| operating voltage: 48~250V/45~65Hz a|Measure voltage (with LCD): 48~250V/45~65Hz a|accuracy:± (2.0%+2) a|operating temperature: 0ﾣC~40ﾣC a|operating Humidity: 20%~75%RH a|Storage temperature: -10ﾣC~50ﾣC a|Storage Humidity: 20%~80%RH a|Altitude: a2000m a|RCD test: >30mA a|RCD working voltage: 220V±20V a|GFCI test: >5mA a|GFCI working voltage: 110V±20V

Voltage Tester pen:

Function
Display	Bargraph
Range of voltage detection	high sensitivity: AC12~1000V ; Low sensitivity: AC48~1000V
frequency	50/60Hz
Alarm mode	Sound and light alarm
Probe shape	Prolate shape
Backlight	Red and green double color backlight
Live and Neutral	According to backlight color change: green is neutral wire; red islive wire.
Signal intensity display	Four level sensitivity of bargraph
Signal intensity indication method	sound from slow to fast ; backlight from green to red ; bargraphfrom low to high
Flashlight	No operation, no sensing signal will shut down automatically in about 3 minutes.
Auto power off	No operation, no sensing signal will shut down automatically in about 3 minutes.
Low-battery indication	a
Power Supply	2x1.5VAAAbatteries(not included)
Weight	Approx. 45g
Size	155mm x 20mm x 20mm
Safety rating	EN61010-1,-2-030 ; EN61326-1 , CAT III 1000V

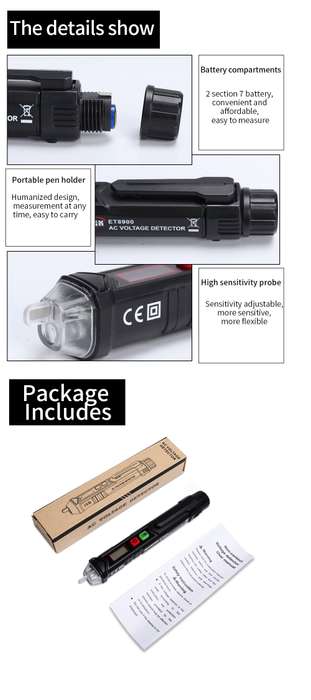

Package Included:

1 x EU Plug Socket Tester
1 x English User Manual
1 x ET8900 Non-contact Voltage Tester pen (batteries not incluced)

Detail Pictures:
