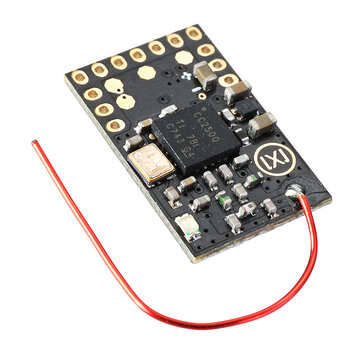

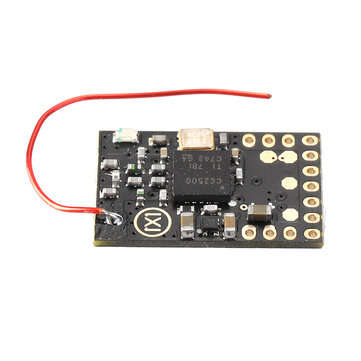

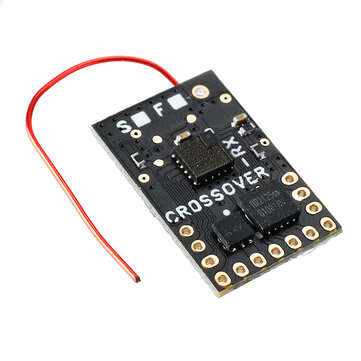

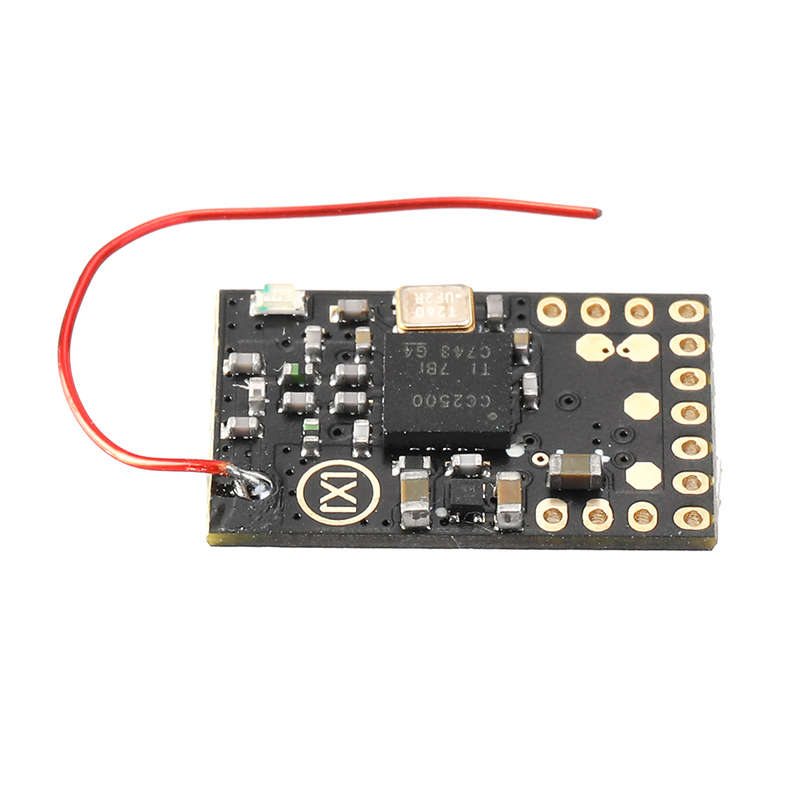

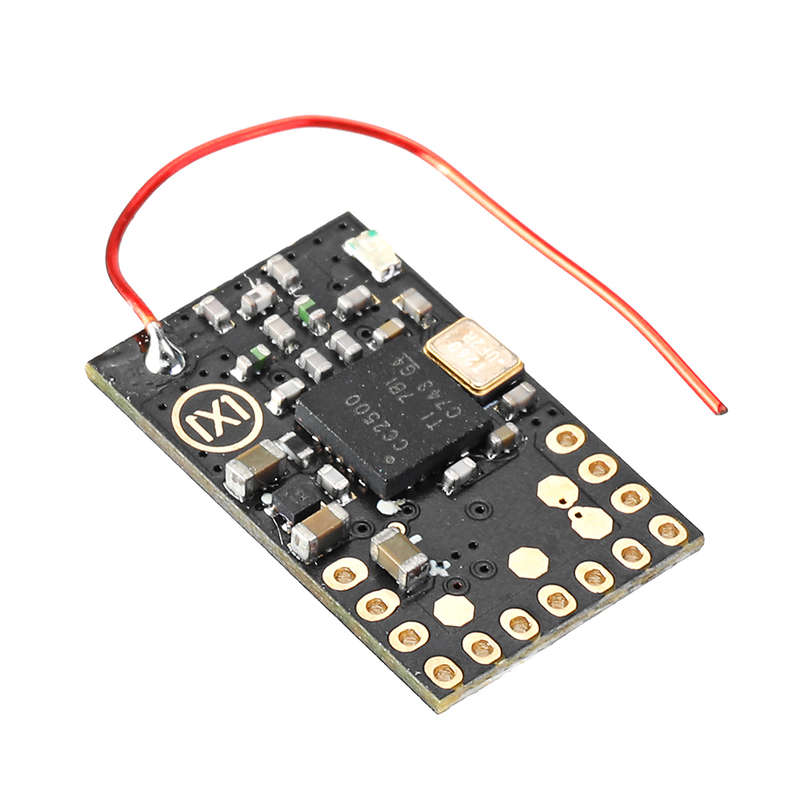

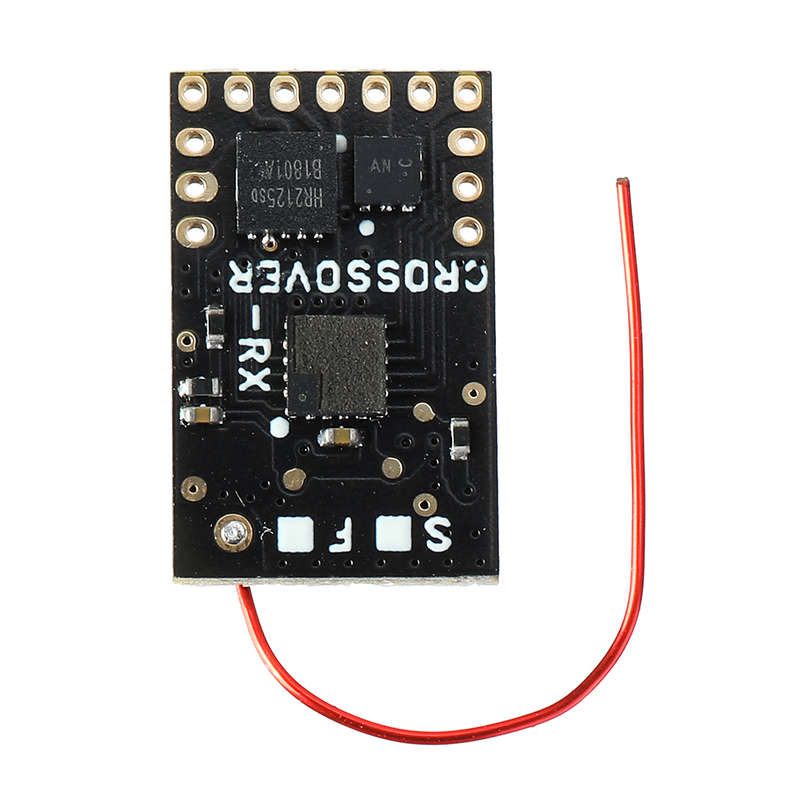

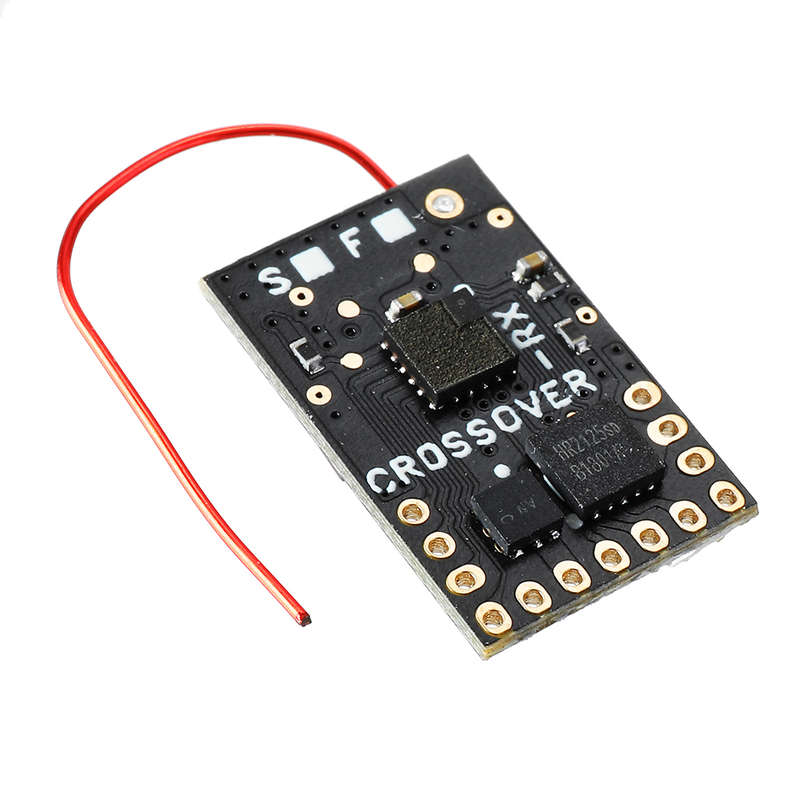

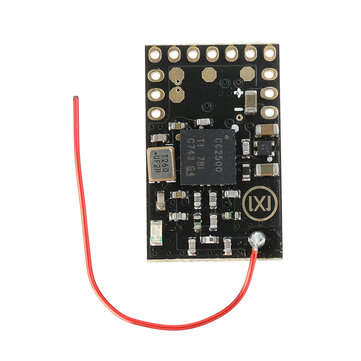

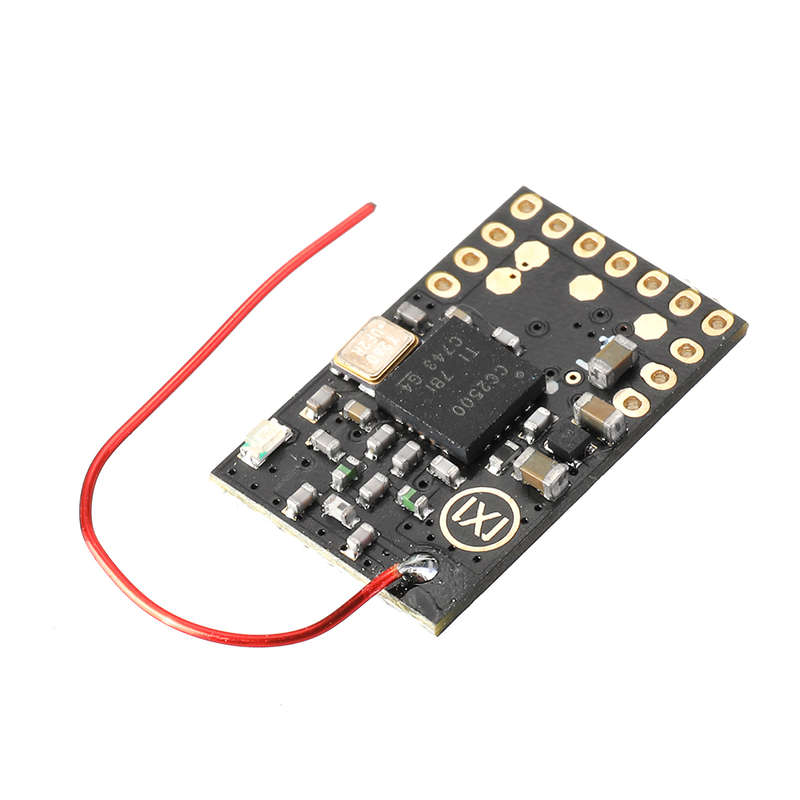

DasMikro Das87 FrSky Nano 7CH RC Receiver Integrated 2 Mixed Bi-directional ESC for Tank Type

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;} Description: This RC receiver unit is FrSky D8 compatible. It offers full 7-channel support in ultra-light weight and mini size. It is suitable for 1/87 RC conversion.

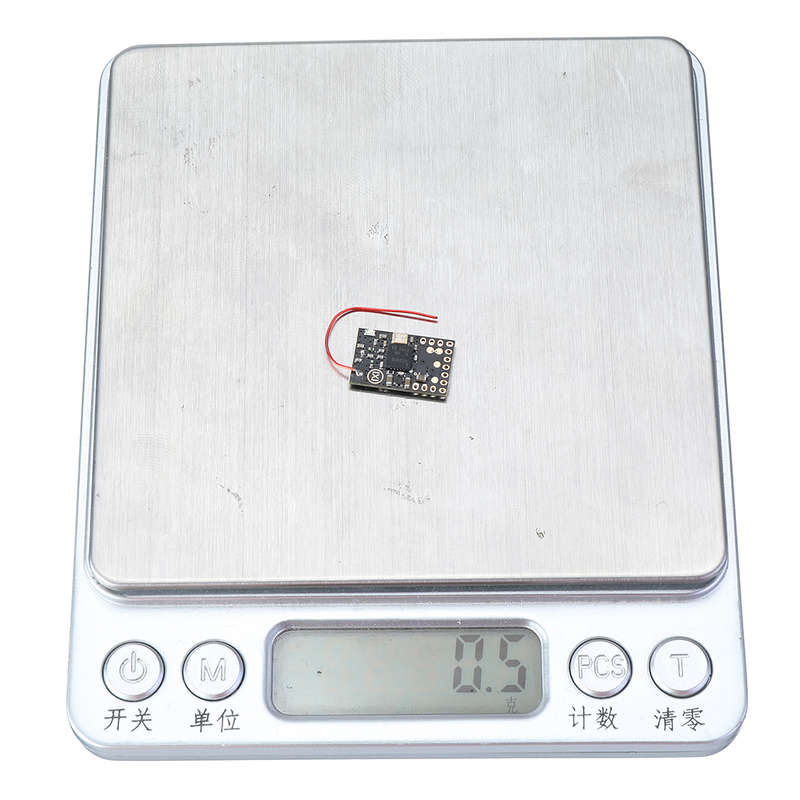

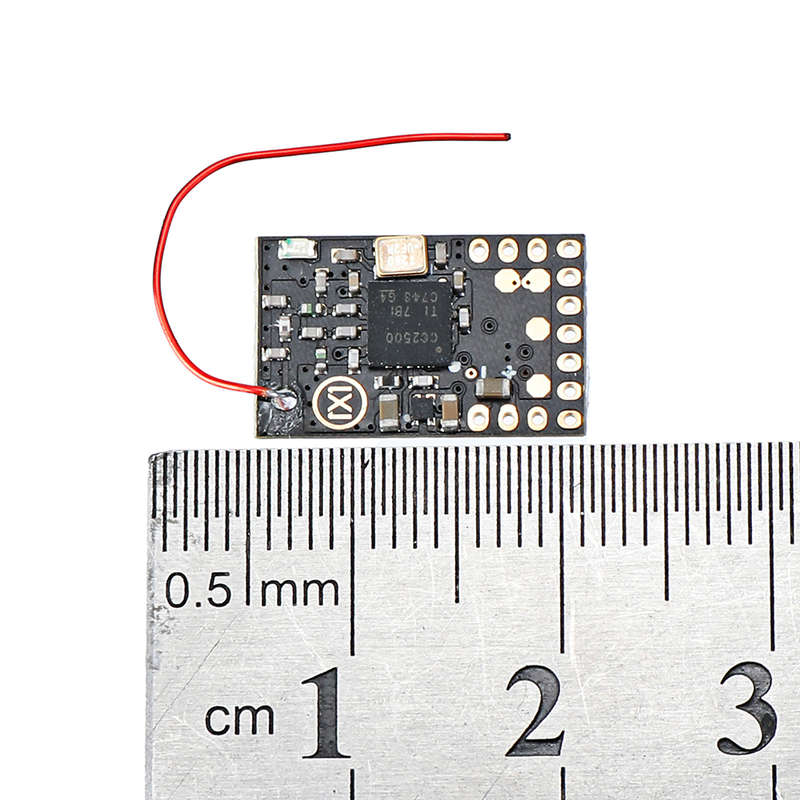

Features: 1. FrSky 2.4GHz D8 compatible? 2. 7 channel support 3. Integrated two standalone Bi-directional ESC (maximum 1A currency) 4. Integrated one Single-directional ESC (maximum 3A currency) 4. Mini size (16.0 x 10.0 x 2.5mm) 5. Operating Voltage 3.0V a?? 4.2V 6. Product Weight: 0.5g
Output Usage: Servo signal output: CH1: (Spare, normally use to control the sound unit or light unit) CH2: (Throttle) CH3: (Spare, normally use to control the sound unit or light unit) CH6: (Spare) CH7: (Spare) Bi-directional ESC output: OUT1/OUT2: ?connect a brushed motor, tank mode mixed controlled by CH2/CH4 signal from transmitter OUT3/OUT4: ?connect a brushed motor, tank mode mixed controlled by CH2/CH4 signal from transmitter CH2 is throttle and CH4 is steering Single-directional ESC or LED output: OUT5: connect a brushed motor or LEDs, controlled by CH5 signal from transmitter
Compatible Transmitters: FrSky Stick-type transmitter Jumper Stick-type transmitter like T8SG/T12/T12PRO/T16/T16PRO Any OPENTX and Deviation Stick-type transmitter installed with CC2500 RF module
Package Included: 1 x Receiver
Bind: Power on the receiver, LED will flash slowly. Wait 15 seconds and the LED will flash quickly, this means the receiver is in paring mode. Now you could operate your transmitter to start the bind operation. Once the bind is successful, the LED on receiver will be on. Power off both your transmitter and receiver then power them on again, now the receiver should be controlled by your transmitter.

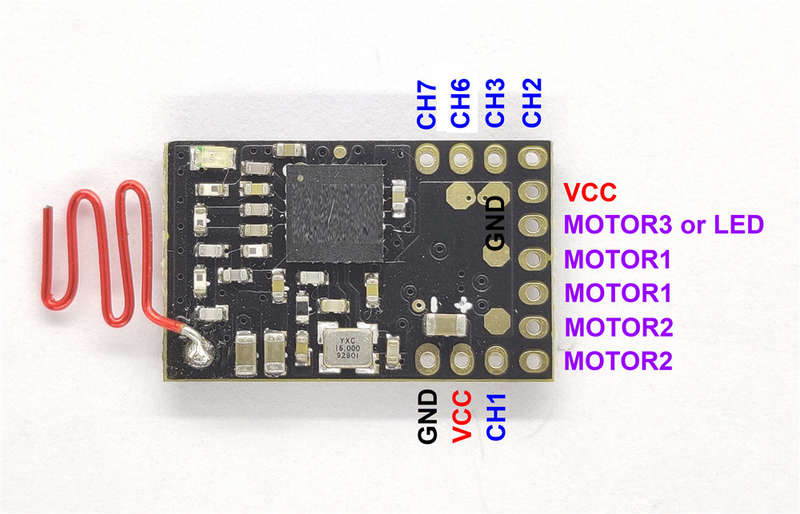

Wire Connection:
