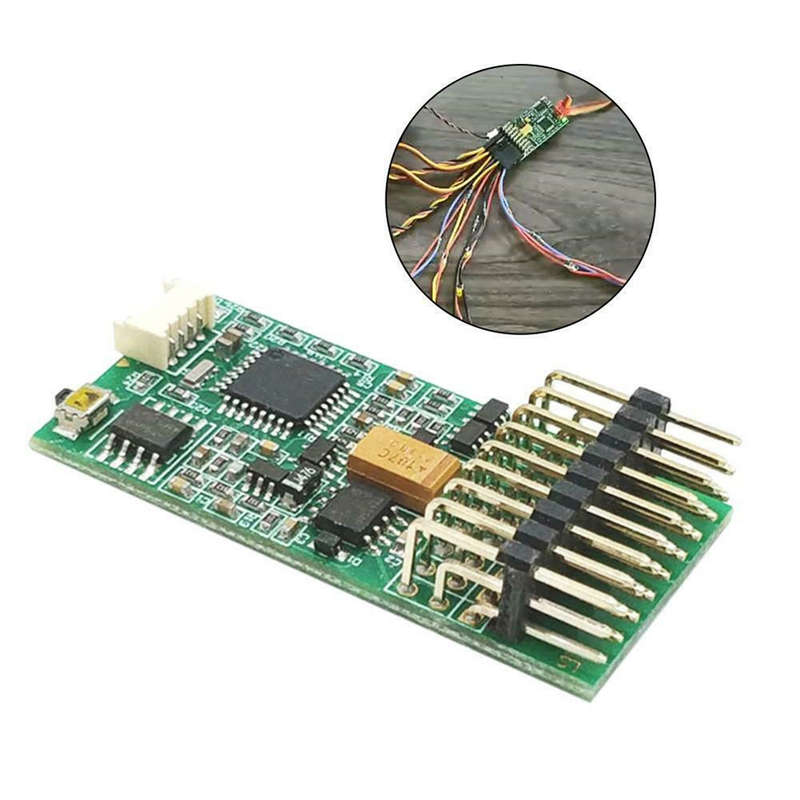

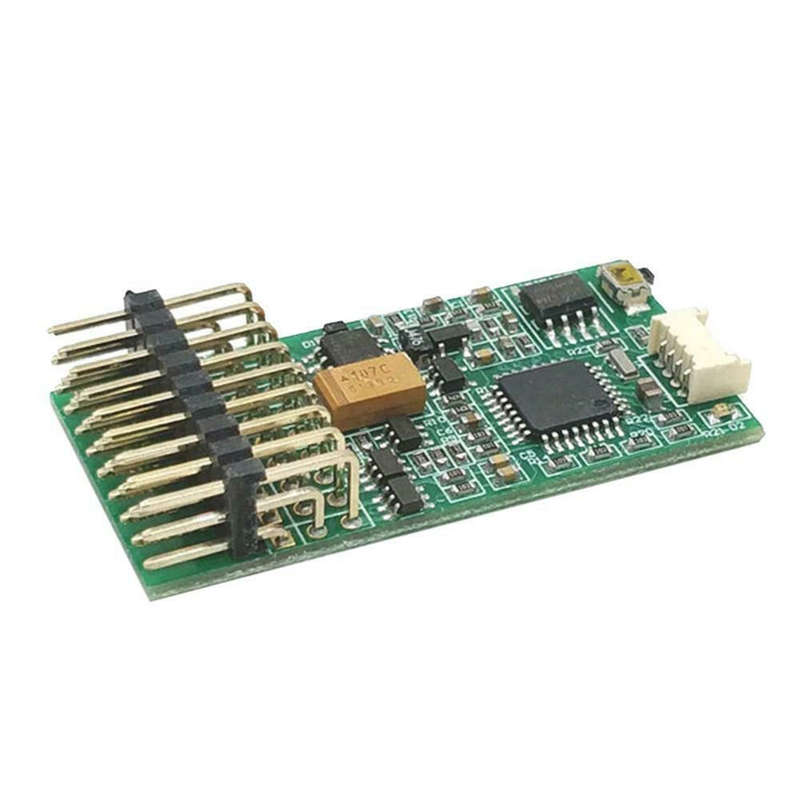

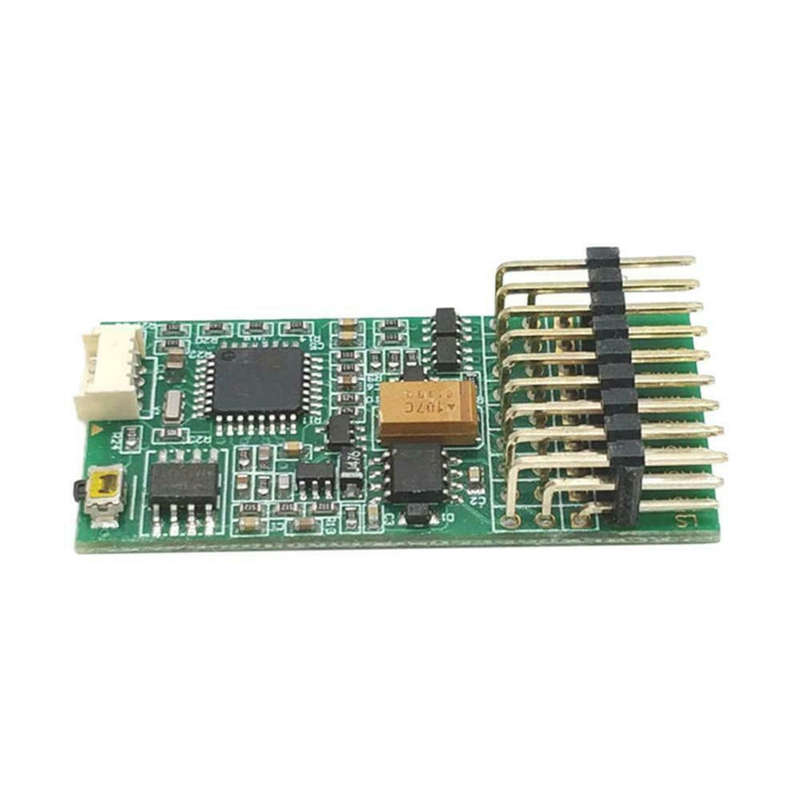

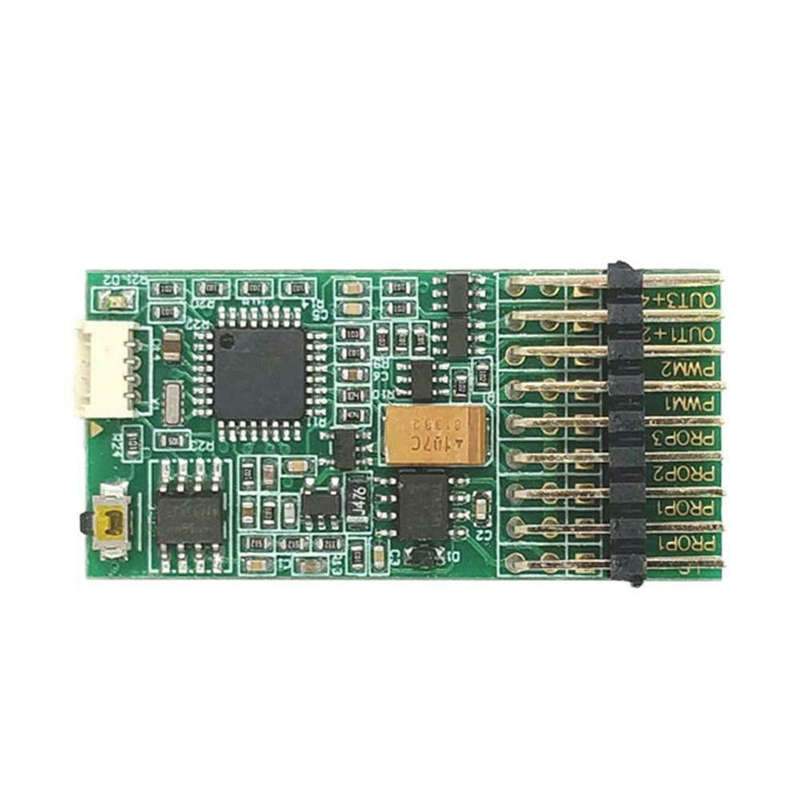

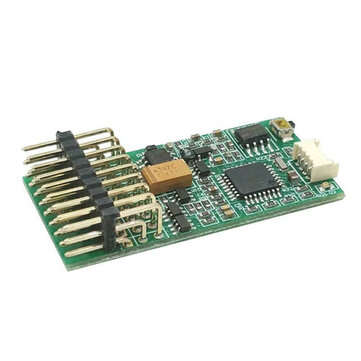

DasMikro TBS Mini Programmable Sound and Light Control Unit for RC Model Car Parts

Description:
This?sound unit is developed for all kinds?of RC controlled models, including trucks, crawlers,?tanks,?airplanes...
?
Features:
Fully customer programmable, you?could load your?own sounds
Large sound?library of original recordings?is?available
Sound?quality at 22KHz
Capability to play two sounds simultaneously (engine and one special sound)
16Mbit sound?memory, enough for 93sec. of sound?recordings at 22KHz
Internal 1,2W amplifier at 8 Ohm speakers
Remote volume control (depending on control mode)

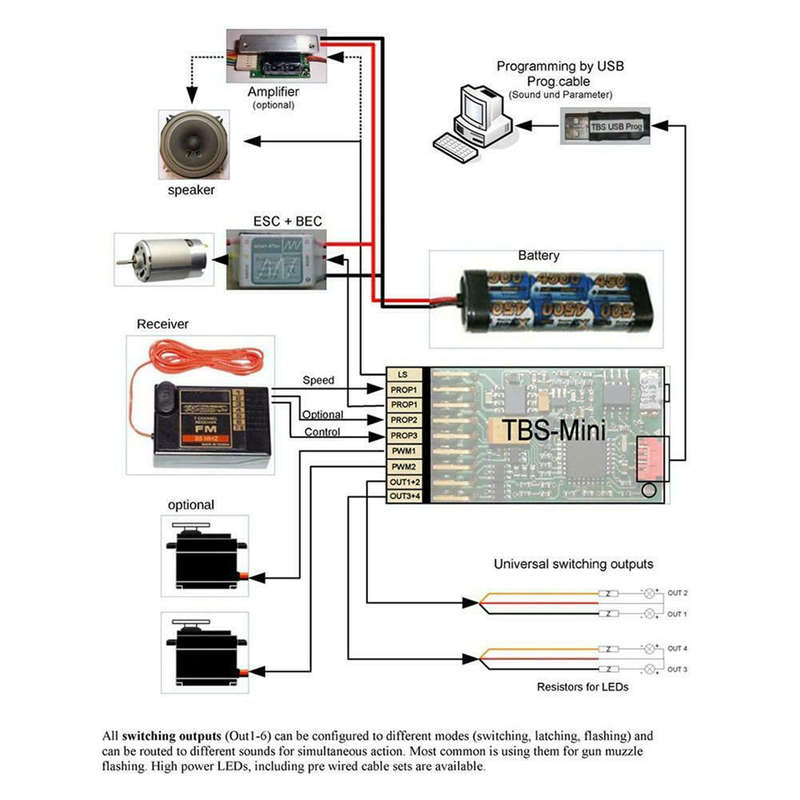

Up to 6 electronic switching outputs
Two servo signal outputs

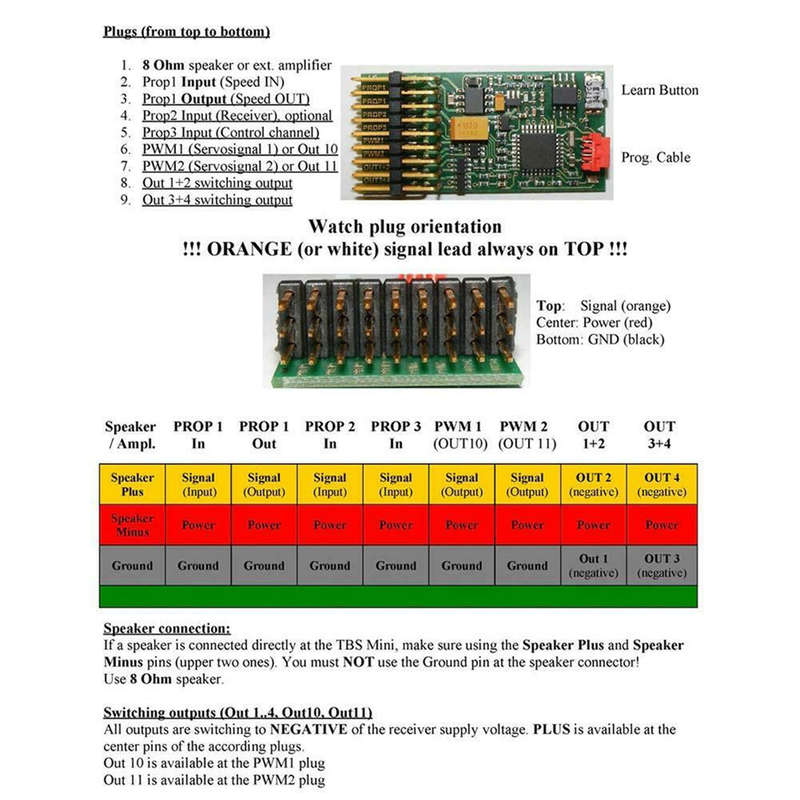

All connections made by plugs, no solder?work necessary
Fully assembled in SMD technology (no heavy, vibration sensitive components)
Speed signal derived from the receiver. This allows combination with brushless or brushed?motors.
Horizontal plug connections, this allows total electric isolation by shrinking plastic tube.
?

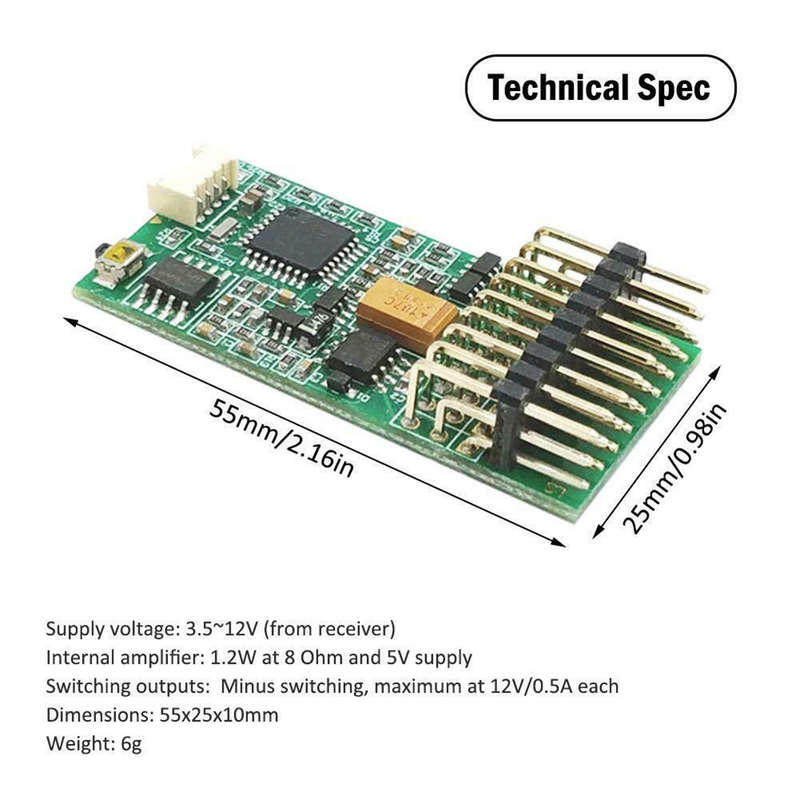

Technical Spec:
Supply?voltage: 3.5~12V (from receiver)
Internal amplifier: 1.2W at 8 Ohm and 5V supply
Switching outputs: ?Minus switching, maximum at?12V/0.5A each
Product Dimensions: 55x25x10mm
Product Weight: About 6g

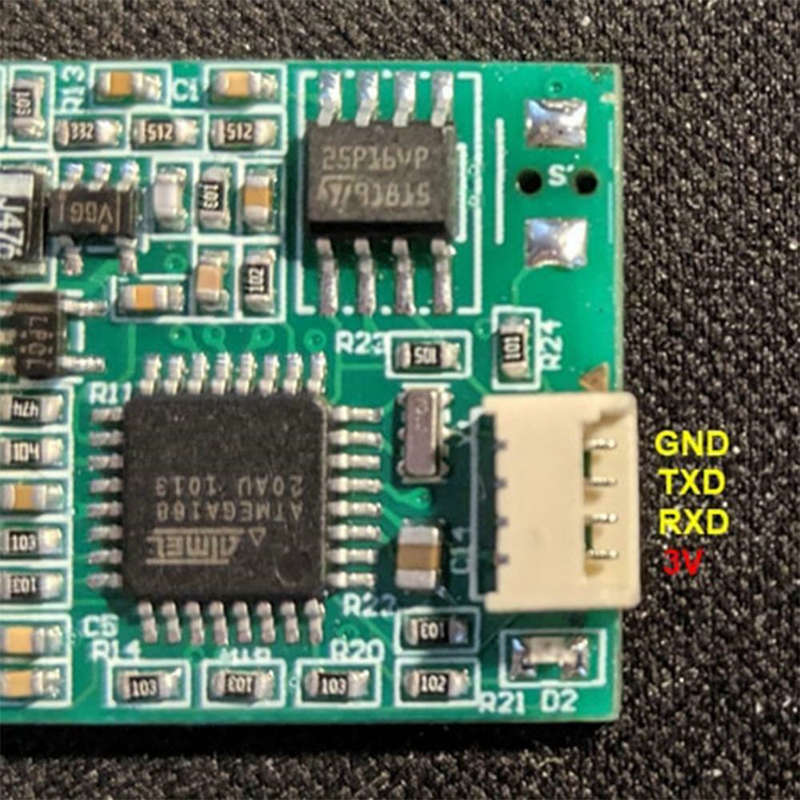

About the software and manual,please to download

Package Included:?
1 x DasMikro TBS Mini Sound And Light Control PCB
2 x 10cm 3P receiver connection servo cable
1 x 10cm 3P receiver connection servo Y cable (for tank second ESC speed input)
1 x 20cm 2P speaker connection cable
4 x 30cm 3P external switching connection cable
