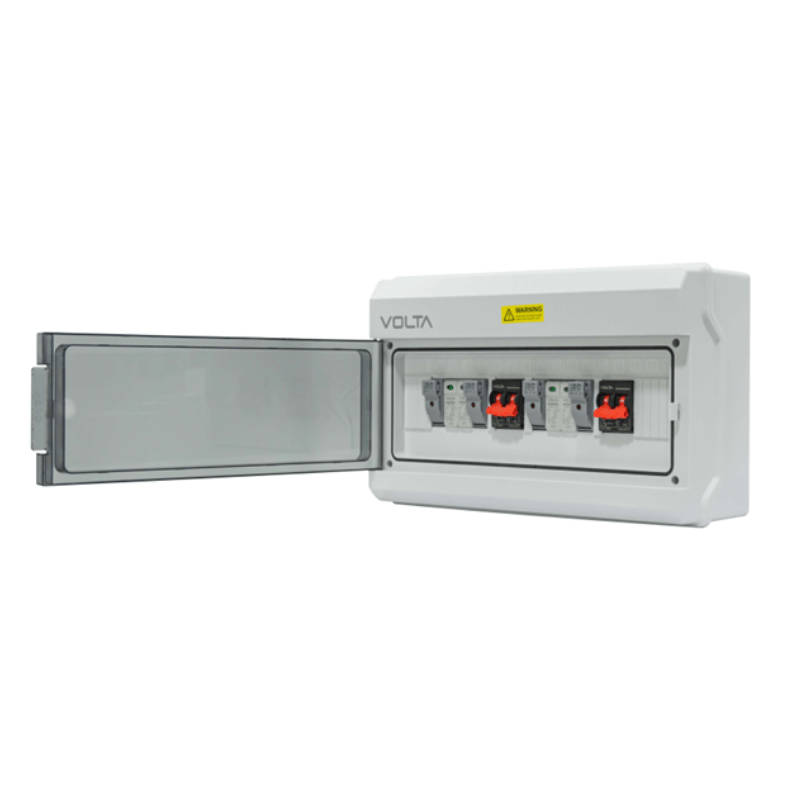

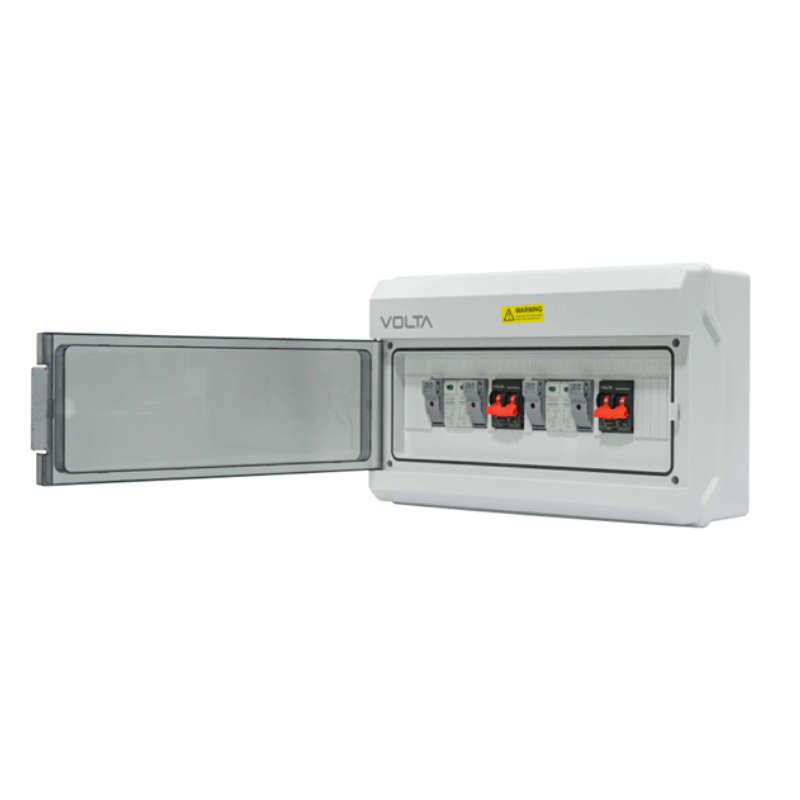

DB Combiner Box 2 String in / 2 string out
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Free collection from
Bartlett, Boksburg
The seller allows collection for this item and will be in contact with the full collection address once the order is ready.
Ready for collection by Monday, 24 June.
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 5 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Product details
Condition
New
Location
South Africa
Product code
STW-18-PV 2/2
Bob Shop ID
616092079
Model | STW-18-PV 2/2 |
Array string mumber | 2 |
Max PV voltage Uocstc | 600VDC |
Max PV current Imppstc | 30A |
Circuit connection ( input / output) | Terminal |
DC Mini Circuit Breaker | Yes |
Fuse wire protection of branch circuit | Optional |
Type 2 Surge protection device | STW-D40 |
Max PV voltage Ucpv | 600VDC |
Nominal discharge current In | 20KA |
Max discharge current Imax | 4 OKA |
Voltage protection level Up | 2.0KV |
Structural parameters | |
Shell material | ABS PC |
Ingress protection | IP65 |
