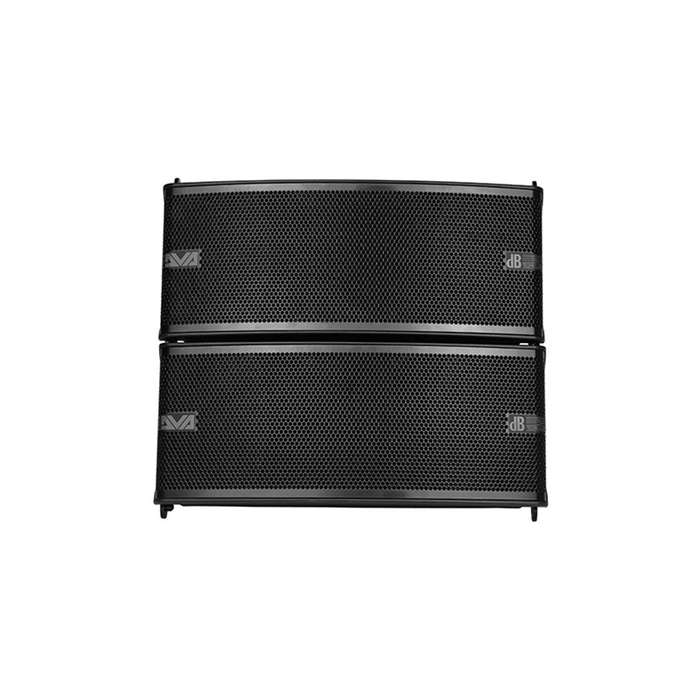

The DB Technologies DVA M2M+ M2S (DVA Mini) 2-Way Active Line Array System offers exceptional sound quality in a compact design. Featuring a Master+Slave configuration, it delivers high SPL and easy setup, making it perfect for portable and permanent installations. With robust construction and flexible positioning options, this system is an essential choice for audio professionals seeking performance and convenience.
Lightweight and Compact Design: The DVA M2M+ M2S (DVA Mini) features a lightweight and compact design, making it easy to transport and set up in various environments. Weighing just 16.8 lbs for the master module and 15.7 lbs for the slave module, it offers excellent portability without compromising sound quality.
Master+Slave Configuration: This system utilizes a Master+Slave design, which allows the DVA Mini to deliver high SPL while maintaining small dimensions. The M2M master module contains a 400-watt Digipro G3 amplifier, providing power to both modules for exceptional audio performance. This configuration optimizes space and setup efficiency, ideal for both portable and permanent installations.
Superior Sound Quality: Each module is equipped with two 6.5-inch neodymium woofers and two 1-inch high-frequency compression drivers, ensuring high-quality audio reproduction across a wide frequency range. The DVA Mini achieves a frequency response of 68 Hz to 20 kHz and a maximum SPL of 126 dB per unit, making it suitable for diverse applications.
Fast-Lock Mechanic Design: The innovative fast-lock mechanic design simplifies the setup process. Users can easily stack modules by sliding one module beneath the other until it locks securely in place. This feature ensures stability during performances and streamlines the assembly process.
Flexible Positioning: The DVA Mini includes a back mechanic with incremental steps, allowing users to adjust the line array positioning angles quickly. This flexibility enables precise sound projection, adapting to various venue layouts and requirements.
Integrated DSP Processing: The system features a 56-bit DSP controller with nine presets, including HF and Low-Mid corrections. This functionality allows for tailored audio performance, optimizing sound quality in different settings.
Robust Build Quality: Constructed from solid polypropylene and reinforced with an internal anti-vibration structure, the DVA Mini is designed to withstand the rigors of frequent use. Its durable construction ensures long-lasting performance, making it a reliable choice for sound professionals.
Specifications:
- Speaker Type:
- M2M: 2-Way Active Master Line Array Module
- M2S: 2-Way Slave Line Array Module
- Acoustical Data:
- Frequency Response [-6dB]: 78 — 19,000 Hz
- Frequency Response [-10dB]: 68 — 20,000 Hz
- Max SPL: 126 dB per unit
- HF Drivers: 2 x 1 Neodymium
- LF Drivers: 2 x 6.5 Neodymium
- Voice Coil HF: 1
- Voice Coil LF: 1.5
- Directivity: 90° x 15°
- Amplifier:
- Amp Technology: Digipro® G3
- Amp Class: Class D
- RMS Power HF Amp: 200 W (100 W + 100 W)
- RMS Power LF Amp: 200 W (100 W + 100 W)
- Cooling: Convection
- Processor:
- Controller: DSP 56 bit
- AD/DA Converter: 24 bit / 48 kHz
- System Presets: 9 (8 x HF and Low-Mid corrections, 1 for service use)
- Limiter: Multiband, RMS/Peak, Thermal
- Crossover Frequency LF-HF: 1800 Hz
- Slope LF-HF: 24 dB/Octave
- Input/Output:
- Signal Input: 1 x XLR female, Balanced
- Signal Output: 1 x XLR male, Balanced
- Power Supply: 400W SMPS with Auto-range PSU (110V~ and 220V~)
- Power Socket: 1 x PowerCon In, 1 x PowerCon Out
- Signal Input M2S: 1 Custom connector
- Mechanics:
- Housing: Polypropylene (PP)
- Handles: 2 x Back Side
- Fittings: Integrated hardware with fast lock mechanics
- Splay Angles: 0°, 1.5°, 3°, 4.5°, 6°, 8°, 10°, 12.5°, 15°
- Dimensions:
- Width: 460 mm (18.1 in)
- Height: 190 mm (7.5 in)
- Depth: 345 mm (13.6 in)
- Weight:
- M2M: 7.6 kg (16.8 lbs)
- M2S: 7.1 kg (15.7 lbs)
