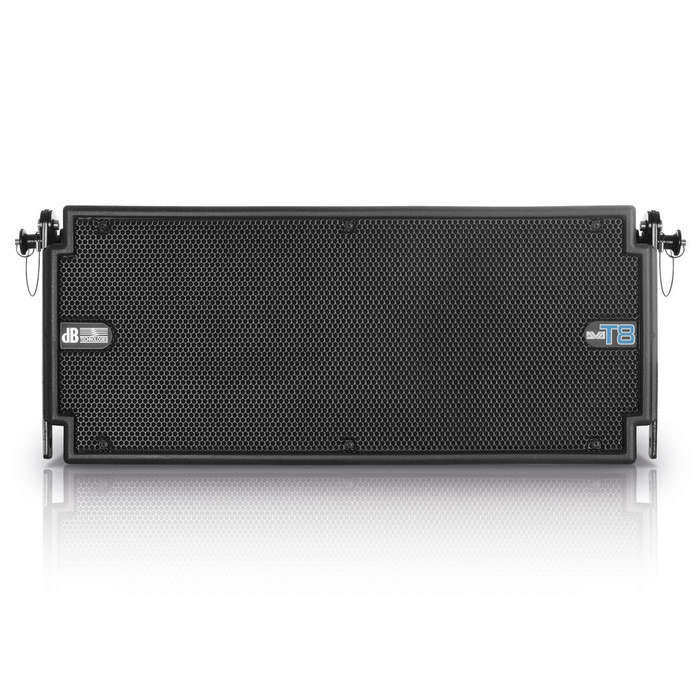

The DB Technologies DVA T8 is an advanced 3-way active line array system featuring an 8" neodymium woofer, a 6.5" midrange driver, and two 1" high-frequency drivers. With a powerful Class D 700 W RMS amplifier, it achieves a maximum SPL of 132 dB. Its compact design ensures exceptional sound quality, while RDNET connectivity allows for remote monitoring and control. Weighing only 14.2 kg, the DVA T8 offers impressive portability and versatility for various sound reinforcement applications.
3-Way Active Speaker: The DVA T8 is a sophisticated 3-way active speaker that incorporates an 8" bass reflex neodymium woofer, a 6.5" midrange driver, and two 1" high-frequency drivers. This combination ensures full-range sound reproduction and precise audio clarity across various frequencies.
700W RMS Digital Power Amp: Equipped with a Class D 700W RMS Digipro G2 digital amplifier, the DVA T8 provides powerful audio output. This amplifier efficiently drives the speaker components, delivering exceptional sound levels while maintaining high fidelity.
High-End 56-Bit DSP On Board: The integrated 56-bit digital signal processor (DSP) enhances audio processing capabilities. It allows for precise filtering and sound shaping, ensuring optimal performance for different environments and applications.
96kHz Sampling Rate: With a sampling rate of 96kHz, the DVA T8 guarantees high-resolution audio reproduction. This feature supports complex audio signals and minimizes latency, resulting in a seamless listening experience.
Network Ready with Integrated RDNET Port: The DVA T8 includes an integrated RDNET port, enabling remote control and monitoring through dBTechnologies' network control software. This feature allows sound engineers to manage the system in real-time, enhancing operational flexibility.
Acoustically Compatible with DVA T12: The DVA T8 is designed to be acoustically compatible with the DVA T12, ensuring consistent sound quality when used in conjunction with other models from the DVA series. This compatibility simplifies system design and deployment.
Mechanically Compatible with DVA T12: In addition to acoustic compatibility, the DVA T8 is mechanically compatible with the DVA T12. This feature facilitates easy integration into existing setups, making it a versatile choice for various sound reinforcement applications.
Specifications:
Technical Data:
- Speaker Type: 3-Way Active Line Array Module
Acoustical Data:
- Frequency Response [-6dB]: 66 — 18,000 Hz
- Max SPL (One Unit): 132 dB
- HF Drivers: 2 x 1
- Directivity: 100° x 15° (Single Unit)
- MF Driver: 1 x 6.5
- LF Driver: 1 x 8
Amplifier:
- Amp Technology: Digipro® G2
- Amp Class: Class D
- HF Amp: 175 W RMS
- MF Amp: 175 W RMS
- LF Amp: 350 W RMS
- Cooling: Convection
Processor:
- Controller: 56-bit DSP with double precision filters
- AD/DA Converter: 24 bit / 96 kHz
- System Presets: 9 (8x HF and Low-Mid correction)
- Limiter: Dual Active Limiter (Multiband RMS, Peak, Thermal)
- Crossover Frequency MF-HF: 1900 Hz
- Slope MF-HF: 24 dB/Octave
- Crossover Frequency LF-MF: 400 Hz
- Slope LF-MF: 24 dB/Octave
Input:
- Signal Input: 1 x XLR Female, Balanced
- Signal Output: 1 x XLR Male, Balanced
- Network: RDNET remote control RJ45 connector IN/OUT
- Power Socket: 1 x Powercon In, 1 x Powercon Out
- Voltage Range: 90 — 240 V
Mechanics:
- Housing: Polypropylene (PP), Metal Reinforced
- Housing Design: Trapezoidal 15°
- Rain Cover: Included
- Rigging Points: Integrated rigging hardware
- Width: 580 mm (23.2 in)
- Height: 240 mm (9.6 in)
- Depth: 327 mm (13.08 in)
- Weight: 14.2 kg (31.3 lbs)
