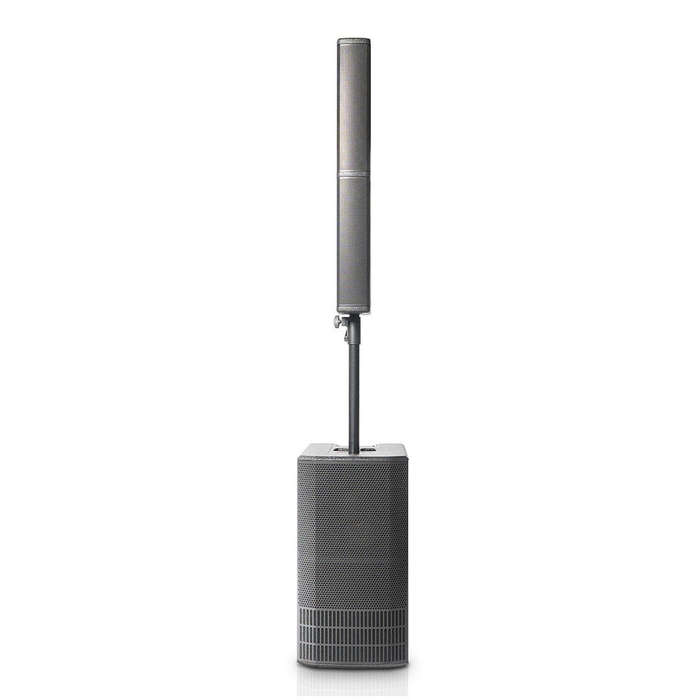

The DB Technologies ES1002 Column PA System delivers powerful performance with an impressive peak output of 1800 watts. This compact and lightweight system features a bi-amped design, ensuring exceptional sound quality for musicians and DJs. Its innovative phase-plug technology enhances intelligibility, while eight EQ presets offer versatile sound customization for various applications. With durable plywood construction and road-ready design, the ES1002 is perfect for any performance setting.
Bi-Amped 1800 W Active PA System: The DB Technologies ES1002 delivers a powerful 1800 W peak output, ensuring robust sound performance in various settings.
Improved Power/Size Ratio: This compact PA system provides exceptional sound output while maintaining portability, making it ideal for on-the-go performances.
Extra-Precise Coverage Dispersion (Horizontal and Vertical): The design allows for precise sound dispersion, ensuring that audio reaches every corner of the audience area without unnecessary overlap.
New Phase-Plug Design for Perfect Intelligibility: Each mid-range woofer features an innovative phase-plug design that enhances vocal clarity, ensuring intelligible sound across all listening positions.
Enhanced Usability for Control Panel: The inclined design of the control panel improves accessibility, making adjustments quick and intuitive for users during performances.
8 EQ Presets: With eight preset EQ settings available, users can easily adapt the system's sound profile to suit various applications, including playback, live music, and speeches.
Specifications:
- Speaker Type: Bi-Amped Mono Column System
- Frequency Response [-10dB]: 43 — 20,000 Hz
- Max SPL: 130.7 dB
- Mid-High Frequency Drivers: 8 x 4" Neodymium
- Low Frequency Drivers: 2 x 12"
- Directivity (HxV): 97° x 40°
- Amplifier Technology: Digipro® G3
- Amplifier Class: Class-D
- Power Amplifier Peak: 1800 W
- Controller: DSP 24 Bit/48 kHz
- System Presets: Flat, Bass Boost, Bass Reduction, Playback, Speech, Long Throw, HPF 80 Hz, HPF 120 Hz
- Limiter: Dual Active (Peak, RMS, Thermal)
- Controls: DSP Rotary Encoder, Volume Controls, MIC/LINE Switch
- Crossover Frequency (LF-HF): 160 Hz
Input Connections:
- Mains Connection: VDE
- Signal Input: 1 x Combo (XLR/Jack) balanced/unbalanced input (Mic/Line), 1 x RCA stereo input
- Signal Output: 1 x XLR balanced output with aux volume, 1 x Speakon to top
Mechanical Specifications:
- Housing (Subwoofer): Black Painted Plywood
- Housing (Tops): Multiplex Plywood
- Handles: 3 (1 on top, 1 each side on sub)
- Pole Mount: 36 mm (M20 threaded hole)
Dimensions:
- Width (Top): 110 mm (4.33 in)
- Height (Top): 905 mm (35.63 in)
- Depth (Top): 160 mm (6.3 in)
- Width (Subwoofer): 360 mm (14.17 in)
- Height (Subwoofer): 680 mm (26.77 in)
- Depth (Subwoofer): 545 mm (21.46 in)
Weight:
- Weight (Top): 5.8 kg (12.79 lbs)
- Weight (Subwoofer): 29.3 kg (64.59 lbs)
