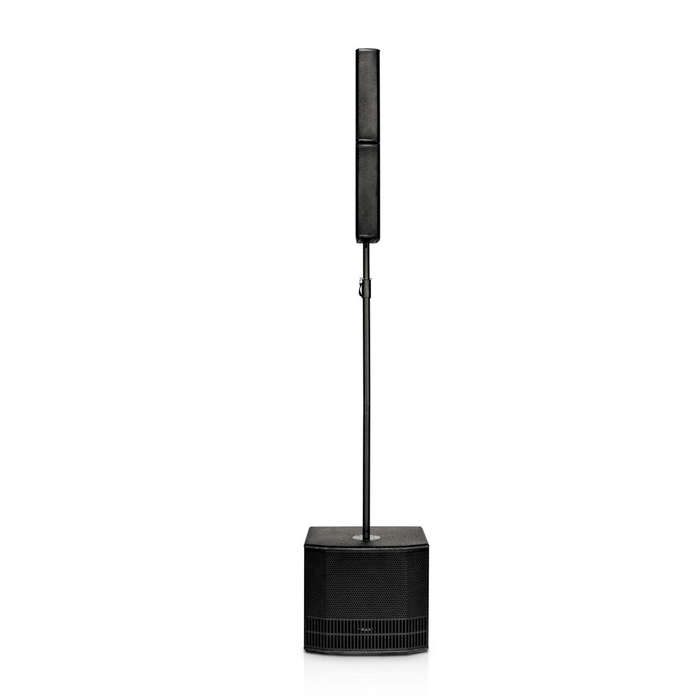

The DB Technologies ES802 Column PA System is a portable bi-amped sound solution featuring two passive tops with 8x 3" high-frequency drivers and a powerful 12" active subwoofer. With a peak power of 1200 watts and a maximum SPL of 124 dB, it delivers exceptional sound quality and coverage for live performances and events. The system is easy to set up and includes eight DSP equalization presets for versatile sound customization. Its durable construction and compact design make it perfect for on-the-go use.
Bi-Amped Mono Configuration: The DB Technologies ES802 is a bi-amped mono column PA system that consists of two passive tops equipped with eight 3" high-frequency drivers and a powerful 12" active subwoofer. This configuration ensures robust sound output and clarity, making it ideal for various performance scenarios.
Powerful Performance: With a peak power output of 1200 watts, the ES802 delivers impressive sound pressure levels, reaching a maximum SPL of 124 dB. This high power capability allows it to fill larger venues with ease, ensuring that every audience member experiences excellent audio quality.
Extended and Coherent Coverage: The innovative design of the ES802 focuses on extended and coherent sound coverage. The Logarithmic Curved Column Array technology used in the tops improves vertical beam coverage, while the double-ringed phase plug enhances horizontal sound dispersion. This combination results in a rich, immersive audio experience for both seated and standing audiences.
Quick and Easy Setup: Designed for convenience, the ES802 system allows for easy and fast plug-and-play setup. Users can quickly connect the components and begin their performance without lengthy configuration processes, making it ideal for live events and mobile setups.
Customizable Sound with Preset EQ: The built-in digital signal processor (DSP) offers eight preset equalization options, allowing users to tailor the audio output to different environments and requirements. These presets include settings for flat response, bass boost, playback, and more, enabling flexible sound management.
Scalability for Greater Power: For users needing even more power, the ES802 system can be combined with a second system. This scalability option allows for an expanded setup that increases overall sound output, making it suitable for larger events or venues requiring exceptional sound reinforcement.
Specifications:
System Type:
- Bi-amped Mono Column PA System
Components:
- Passive Tops: 2 (each with 8x 3" High-Frequency Drivers)
- Active Subwoofer: 1 (12" Woofer)
Power:
- Peak Power Output: 1200W
- Maximum SPL: 124 dB
Coverage:
- Acoustic Design: Logarithmic Curved Column Array technology
- Directivity: Extended and coherent coverage
Setup:
- Easy and fast plug-and-play configuration
Equalization:
- DSP with 8 Preset EQ Settings:
- Flat
- Bass Boost
- Bass Reduction
- Playback
- Club
- Vocal
- Monitor
- Antifeedback
Weight and Dimensions:
- Weight (Subwoofer): 16.4 kg (36.16 lbs)
- Weight (Top): 1.9 kg (4.19 lbs)
- Dimensions (Subwoofer): 465 mm x 400 mm x 430 mm (18.3 in x 15.7 in x 16.9 in)
- Dimensions (Top): 95 mm x 360 mm x 137 mm (3.74 in x 13.98 in x 5.39 in)
Housing:
- Subwoofer Material: 15mm black-painted birch plywood
- Top Material: Polypropylene (PP)
- Handles: 2 lateral side handles on subwoofer
Input and Output:
- Mic/Instrument Channel: 1x Combo (XLR/Jack) balanced/unbalanced input, 1x RCA stereo input
- Link Output: 1x XLR balanced output
Amplifier Technology:
- Type: Digipro® G3
- Class: Class-D
Processor:
- Controller: DSP 24 Bit/48 kHz
- System Presets: Factory presets
- Limiter: Dual Active (Peak, RMS, Thermal)
- Crossover Frequency (LF-HF): 206 Hz
