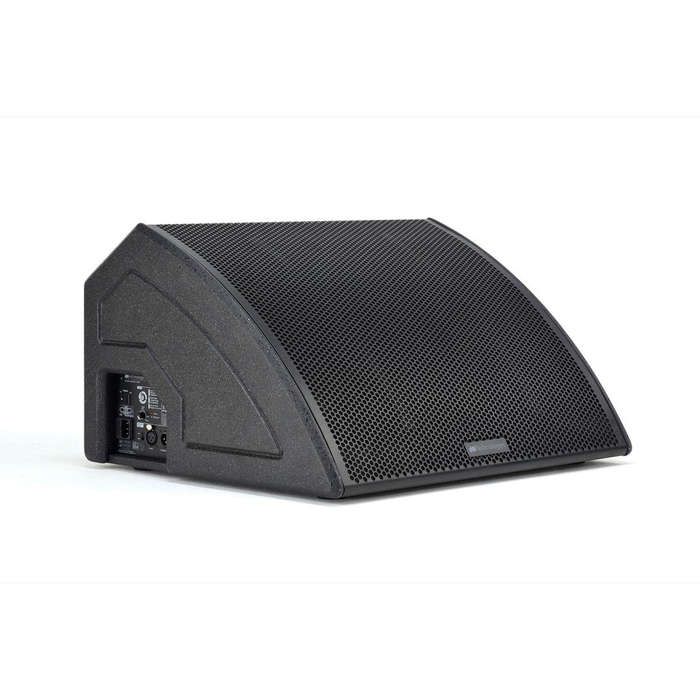

The DB Technologies FMX 15 is a powerful 15" active stage monitor designed for live performances. It features a coaxial design for optimal sound dispersion, a 1200 W Class D amplifier, and advanced DSP with linear phase FIR filters. With a frequency response of 46 Hz to 19 kHz and rotatable horn, it delivers exceptional audio clarity and adaptability for any performance environment.
Active 2-Way Stage Monitor: The DB Technologies FMX 15 is an active 2-way coaxial stage monitor designed for professional audio applications. This monitor effectively delivers clear sound and reliable performance, making it ideal for live events.
Coaxial Configuration: Featuring a coaxial design, the FMX 15 provides exceptional sound dispersion and consistency across the stage. This configuration minimizes phase issues and enhances audio clarity, allowing performers to hear themselves accurately.
Linear Phase FIR Filters: The FMX 15 incorporates advanced linear phase FIR filters, which significantly improve sound intelligibility. These filters maintain audio quality at all volume levels, ensuring that the sound remains natural and clear for both performers and audiences.
Ultra-Precise Directivity: With a directivity pattern of 60° horizontal and 90° vertical, the FMX 15 offers ultra-precise sound projection. Users can easily rotate the horn to switch to a 90° horizontal and 60° vertical pattern, adapting to various performance needs and stage layouts.
Rotatable Horn: The monitor's custom horn design allows for flexible sound dispersion. This rotatable feature enables users to customize the audio output based on their specific requirements, enhancing overall performance versatility.
Front-Rear Grille Design: The FMX 15 features a unique front-rear grille design, which not only enhances the aesthetics but also protects the internal components. This design improves sound quality and provides durability during use.
Integrated Handle: An integrated handle on the bottom side of the monitor ensures easy transport and setup. This thoughtful feature makes it convenient for sound engineers and performers to move the monitor between locations.
Specifications:
Technical Data
- Speaker Type: 2-Way Active Coaxial Stage Monitor
Acoustical Data
- Frequency Response: 46 — 19,000 Hz
- Max SPL: 128 dB
- HF Driver: 1, 1.3 voice coil
- Directivity: 60° x 90°
- Horn: Rotatable
- LF Driver: 15, 2 voice coil
Amplifier
- Amp Class: Class D
- Peak Power: 1200 W
Processor
- Controller: DSP 28/56 bit
- AD/DA Converter: 24 bit / 48 kHz
- System Presets: 8 presets
- Limiter: Peak, RMS, Thermal
- Advanced DSP Function: FIR Filters
- Crossover Frequency: 1740 Hz
- Slope LF/HF: 24 dB/oct
Mechanics
- Housing: Plywood
- Housing Design: Multifunctional
- Handles: 1 integrated on bottom side
- Pole Mount: 36 mm
Dimensions
- Width: 580 mm (22.83 in)
- Height: 340 mm (13.38 in)
- Depth: 500 mm (19.68 in)
- Weight: 16.9 kg (37.2 lbs)
