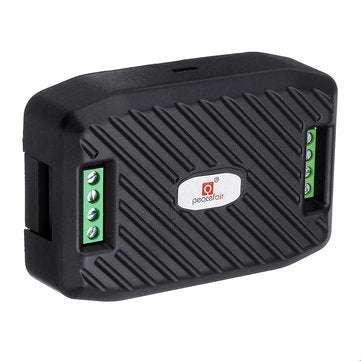

DC 0-300V 10A Voltmeter PZEM-003 Communication Wireless Module RS485 Modbus Voltage Current Power En

20 available / new

R517.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3505

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643376946

For the PC software and 485 line driver, please click the following link to download:

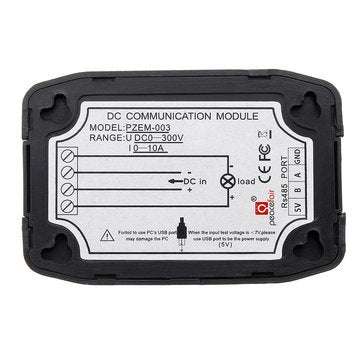

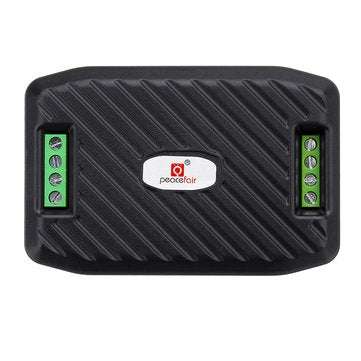

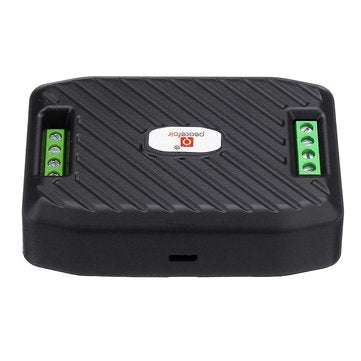

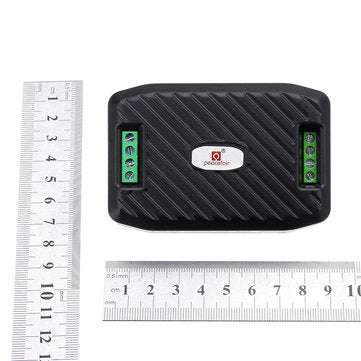

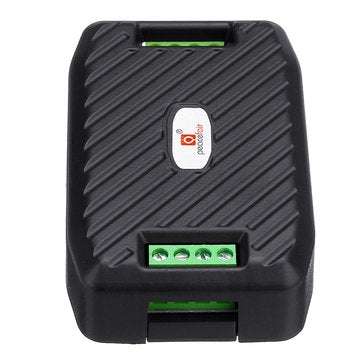

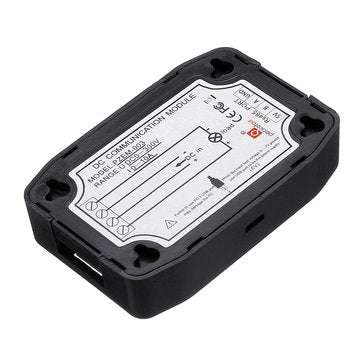

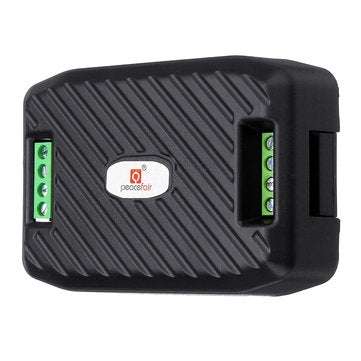

Specifications: Measurement accuracy: 1.0 grade Working temperature:-20a~ +60a Communication port:RS485 Power Supply:DC Certificate:CE,FCC Dimensions:90*60.5*23mm(L*W*H) Function and Display Format: Voltage 1. Measuring range:0.05-300V. (when the test voltage is 7V, please use the independent power supply mode) Resolution:0.01V. 2. Measurement accuracy:1%. Current 1. Measuring range:0.01-10A(PZEM-003) 2. Resolution:0.01A 3. Measurement accuracy:1% Power 1. Measuring range:0.1-3kW(PZEM-003) 2. Resolution: 0.1W 3. Measurement accuracy:1% Energy Consumption 1. Measuring range: 0-9999kWh 2. Resolution: 1Wh 3. Measurement accuracy:1% Over Voltage alarm 1. Voltage threshold can be set, divide into high voltage and low voltage threshold, when the measured voltage exceeds the threshold, it can alarm 2. The default high voltage threshold is 300V, the default low voltage threshold is 7V. Note: Do not use the USB port bring by your PC to be the independent power supply, otherwise it may damage your PC ! Package Included: 1 x PZEM-003 Communication Module
