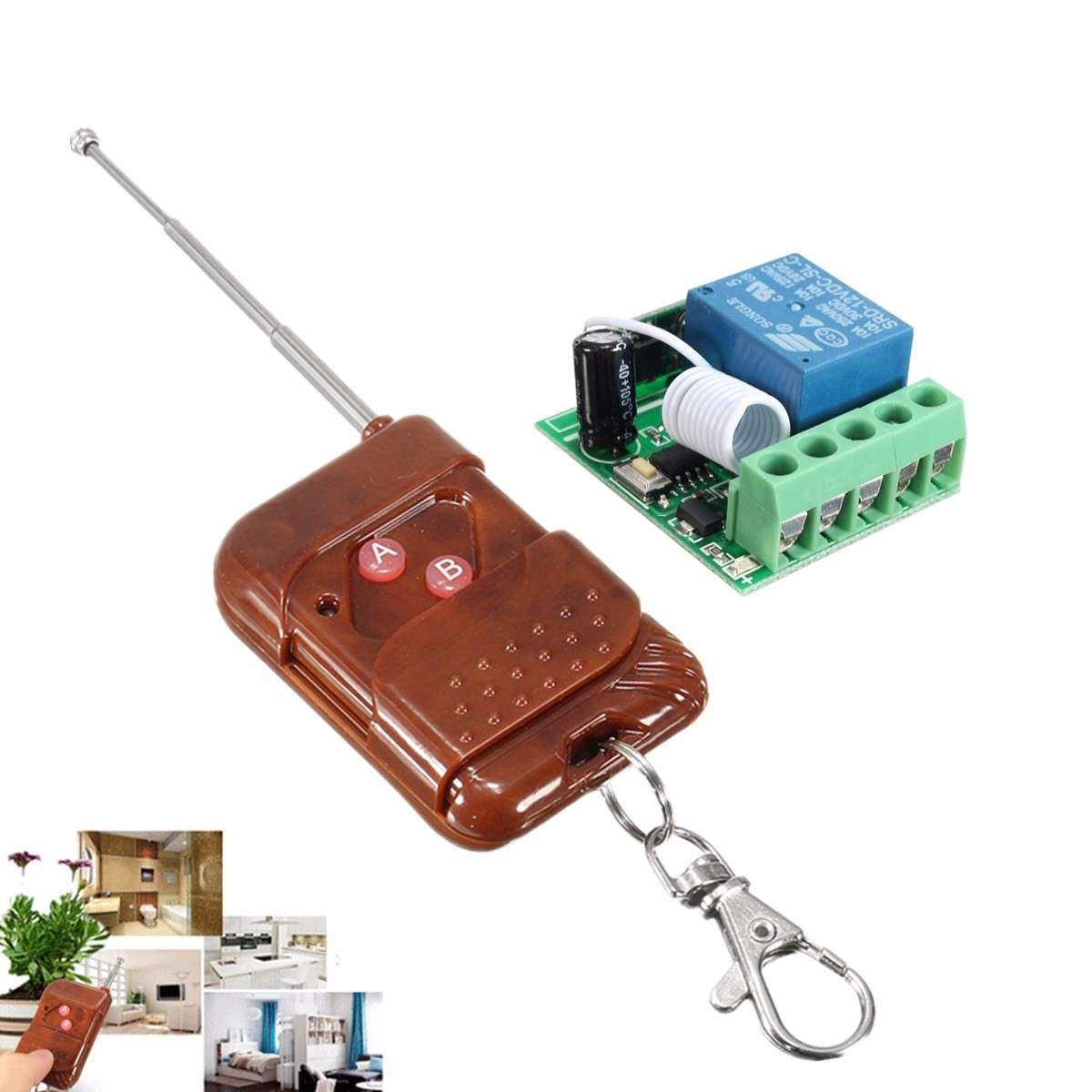

Name: DC 12V 10A 1CH 433MHz Relay Wireless RF Remote Control Switch Receiver With Transmitter
SKU: 1101046
Price: 148.64 ZAR
Availability: SoldOut
Rating: 5 (1 reviews)

DC 12V 10A 1CH 433MHz Relay Wireless RF Remote Control Switch Receiver With Transmitter

25 were available / new

Indicative market price: R295.28

R148.64

50% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

Electro Micro12065

97.08 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Customer ratings:

1 ratings

Product code

1101046

Bob Shop ID

264534904

Specification:

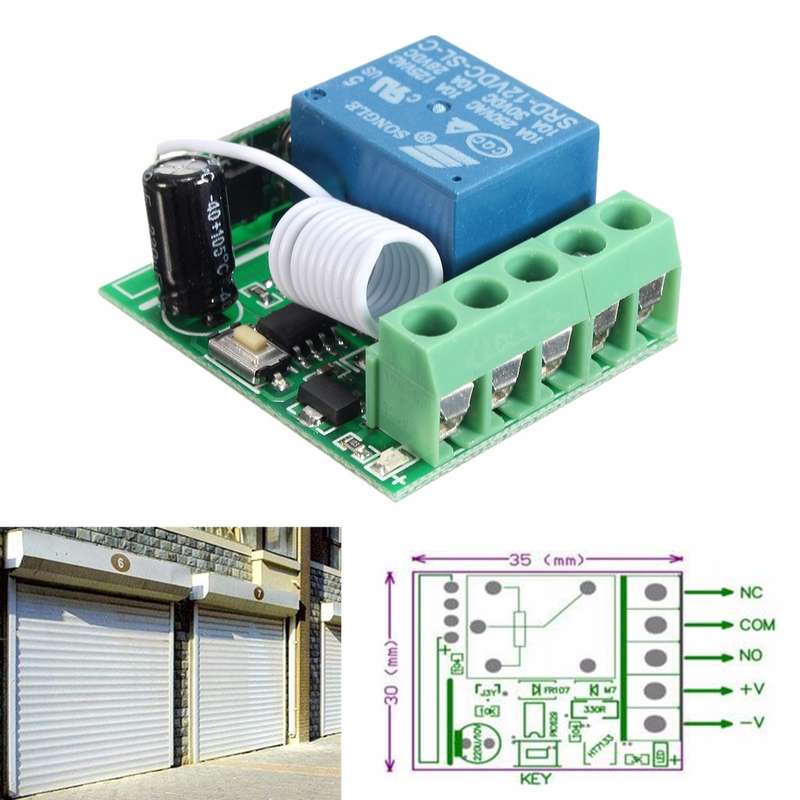

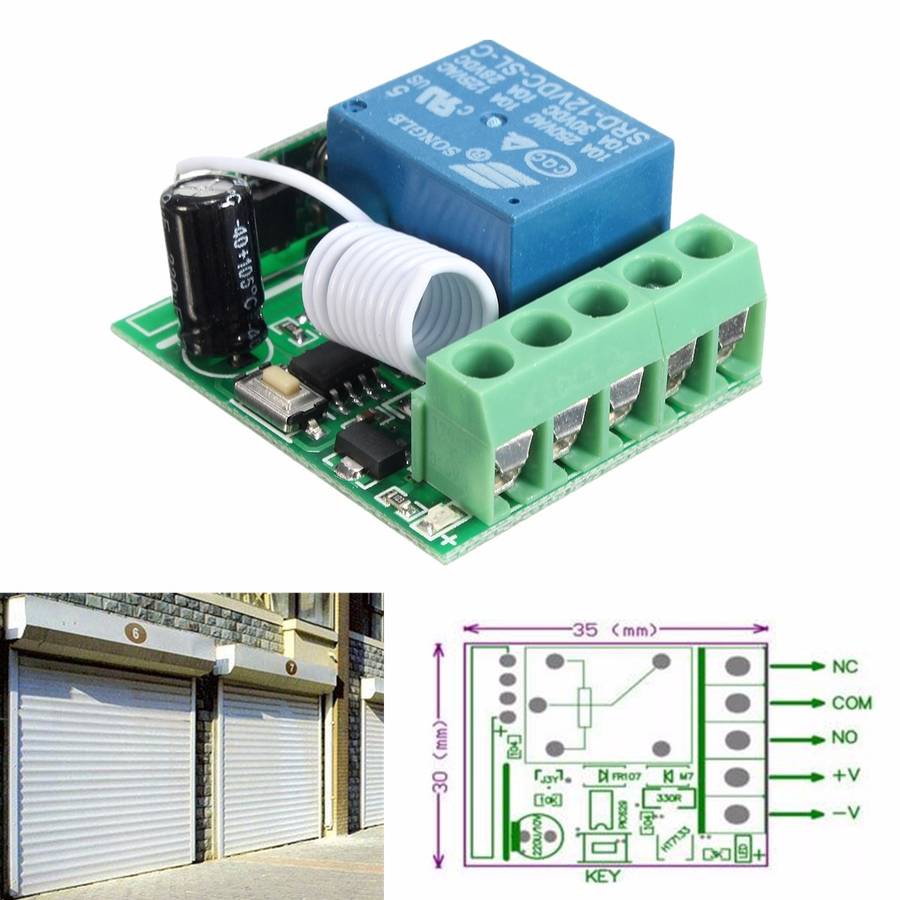

Receiver
1.Input Voltage: DC10-14V
2.Standby Current: <5MA
3.RF Frequency: 433MHZ
4.RF Working mode:Super heterodyne receiver
5.Receiver Sensitivity: >90dBm
6.Remote Control Distance: >100 meter(In open environment)
7.Decoding Way: MCU Software decoding
8.Can store the number of remote control:50
9.Support remote control type: Fixed code, learning code
10.Channel: 1CH
11.Multiple working modes: (Jog/Non-Latched ,inter-lock/Latched ,self-lock /Self-Latched,Delay off)
12.Wiring Method:Fixed wiring terminal
13.Working Voltage: DC12V
14.Output Current: 10A
15.Rated load:10A 250VAC / 10A 125VAC
10A 30VDC / 10A 28VDC

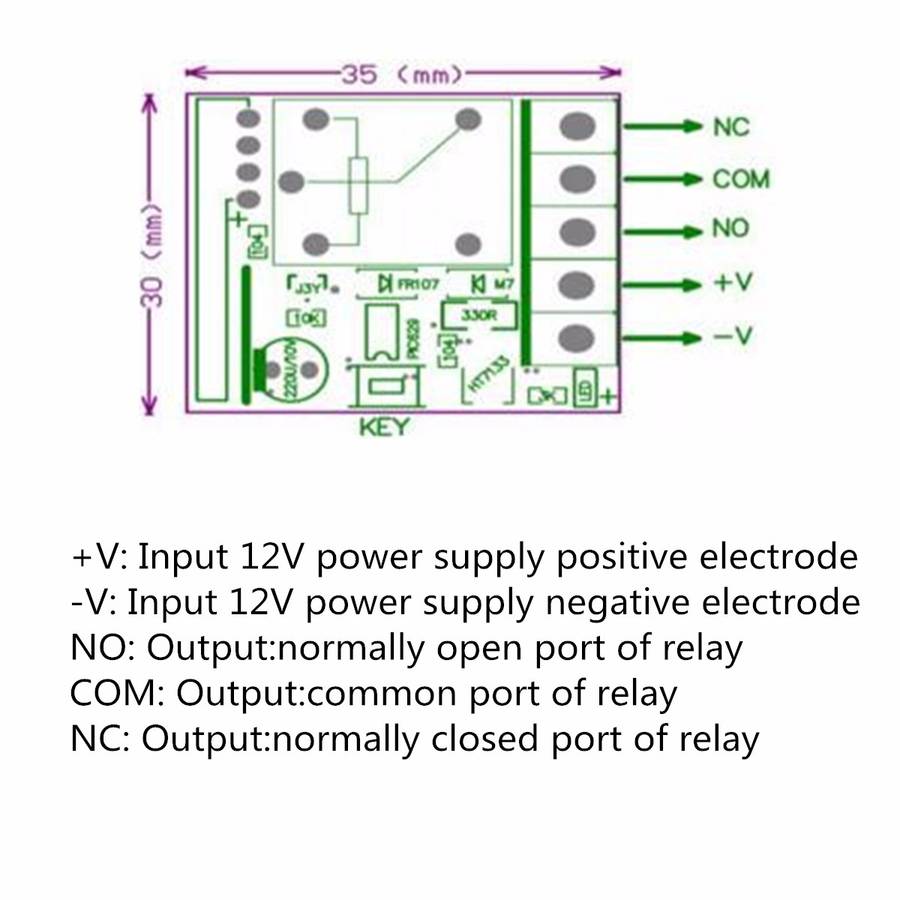

16.Output:Normally open,Common,Normally closed

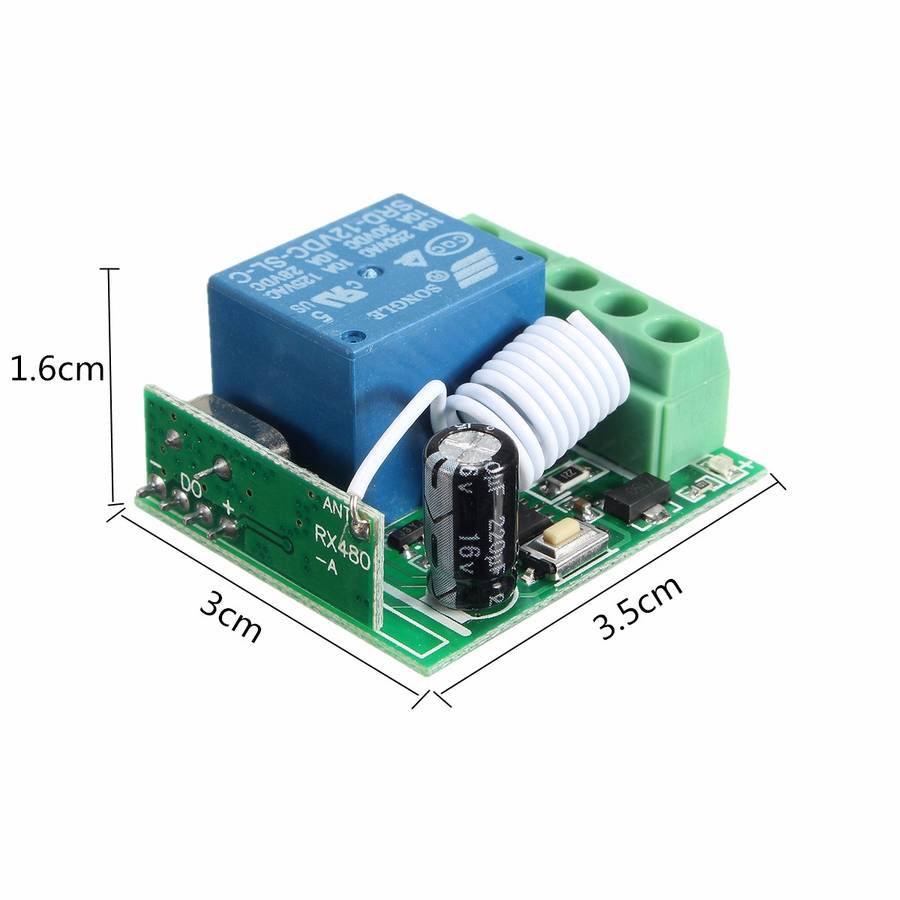

17.Dimension:3.5cm*3cm*1.6cm

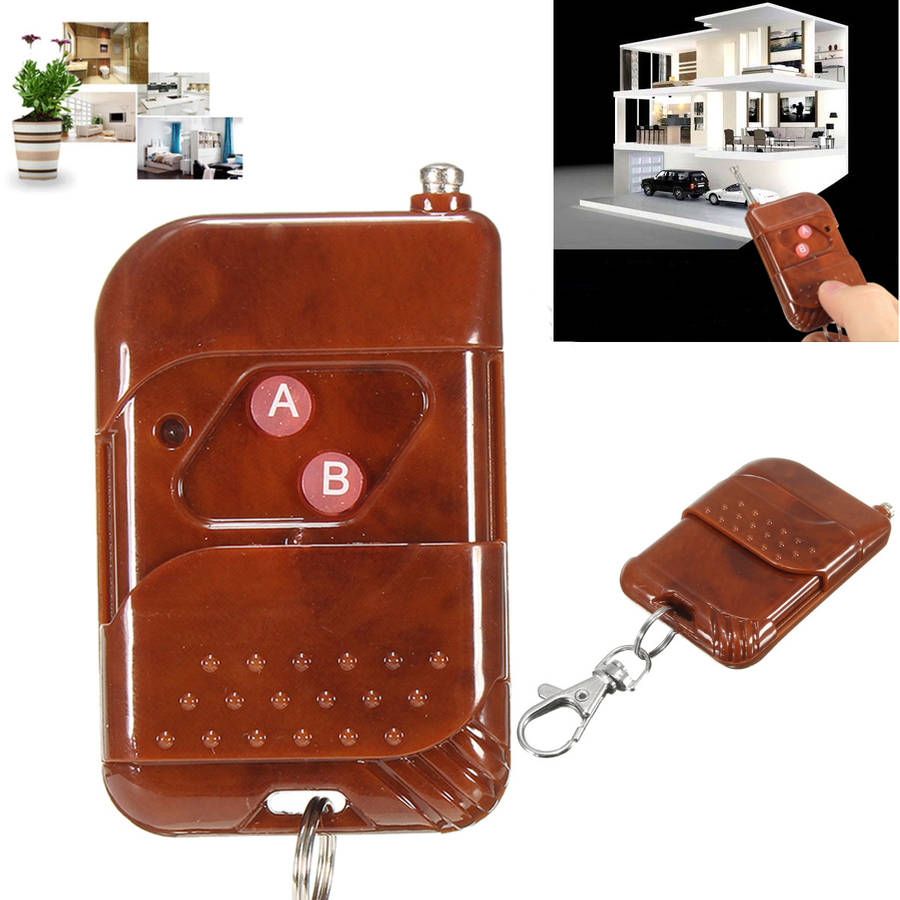

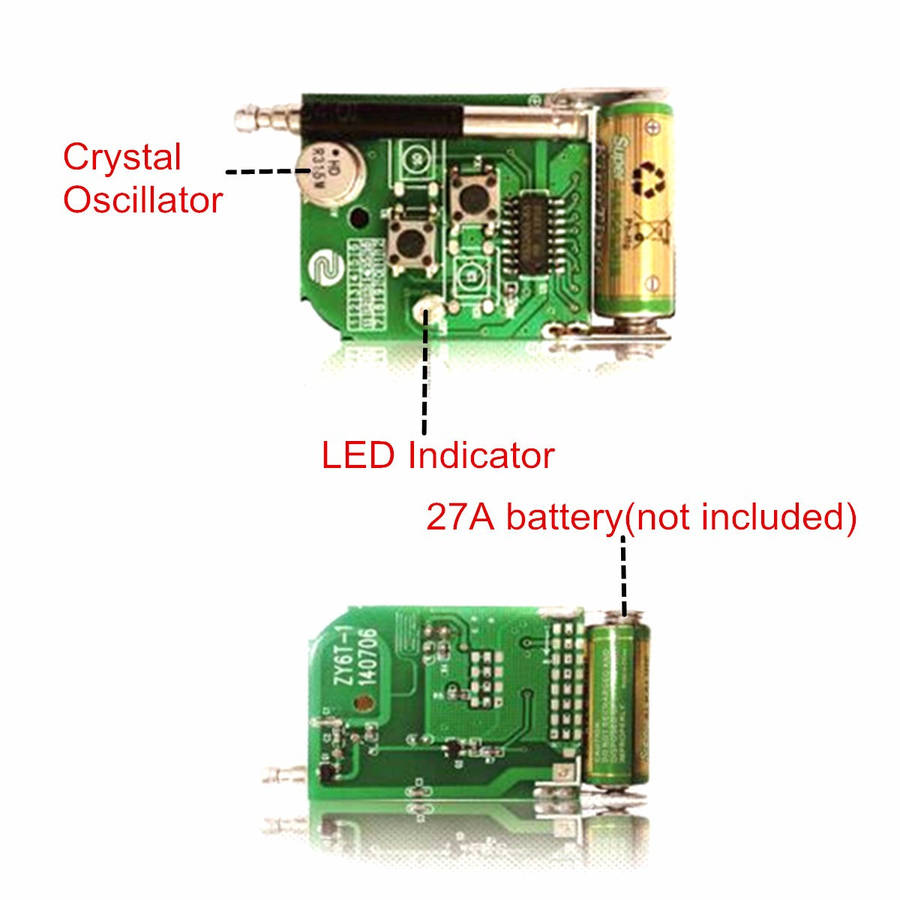

Transmitter
1.Material:ABS Plastic
2.Battery:23A Battery (Battery is not included)
3.Operating voltage: 12V
4.Frequency: 433MHZ
5.Reference distance: 150 meters (This is the theory distance in open environment without interference, practical application due to the interference environment and decreased)
6.Current job: 9 ~ 12mA
7.Transmitting power: 10-15mw
8.Frequency deviation: ± 0.2MHz

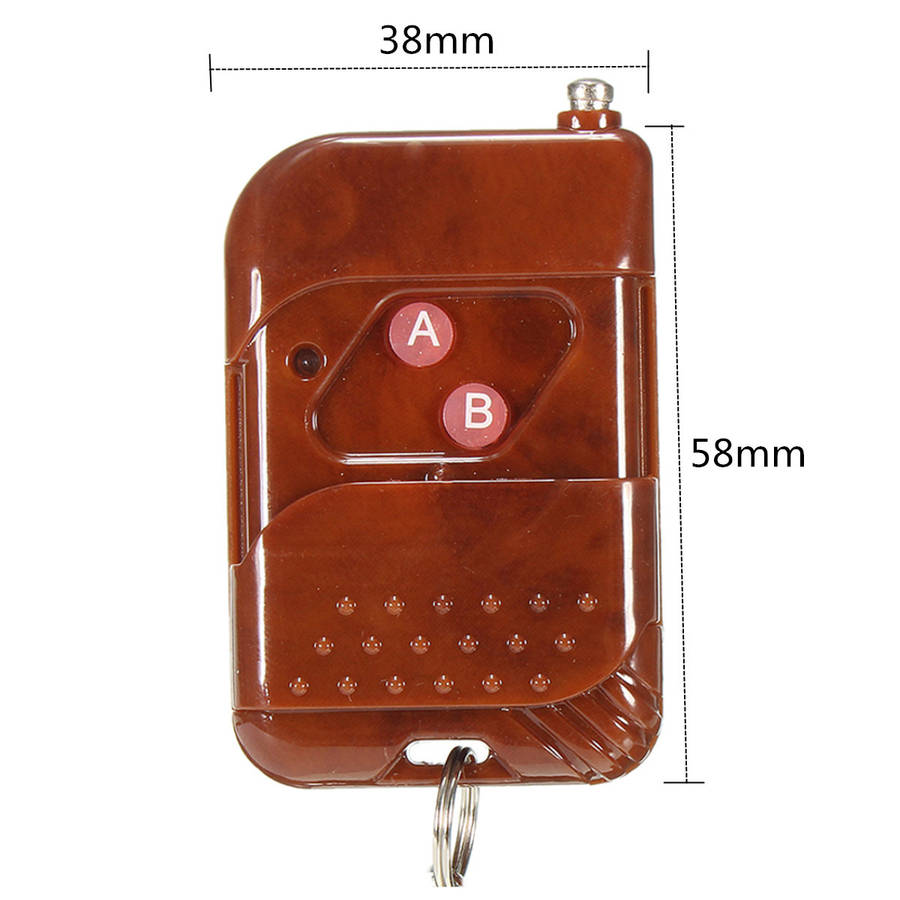

9.Size (LxWxH): 58x38x15 (mm)

Working/output way:

1.Jog/Non-Latched: Press one button is Working /ON. Loosen your finger on the same button is Stop/OFF. One channel switch need one buttons remote control.
2.Self -lock/Self-Latched: Press one button for one time is working/ON. Press the same button again is stop/OFF. One channel switch need one buttons remote control.
3.Inter-lock /Latched: Press one button is working/ON, press another button is stop/OFF. One channel switch need 2 buttons remote control.
4.Delay: Press remote control relay pull-in,release the remote control and begin timekeeping,after 5s,10s,15s will automatically close the relay

Description:

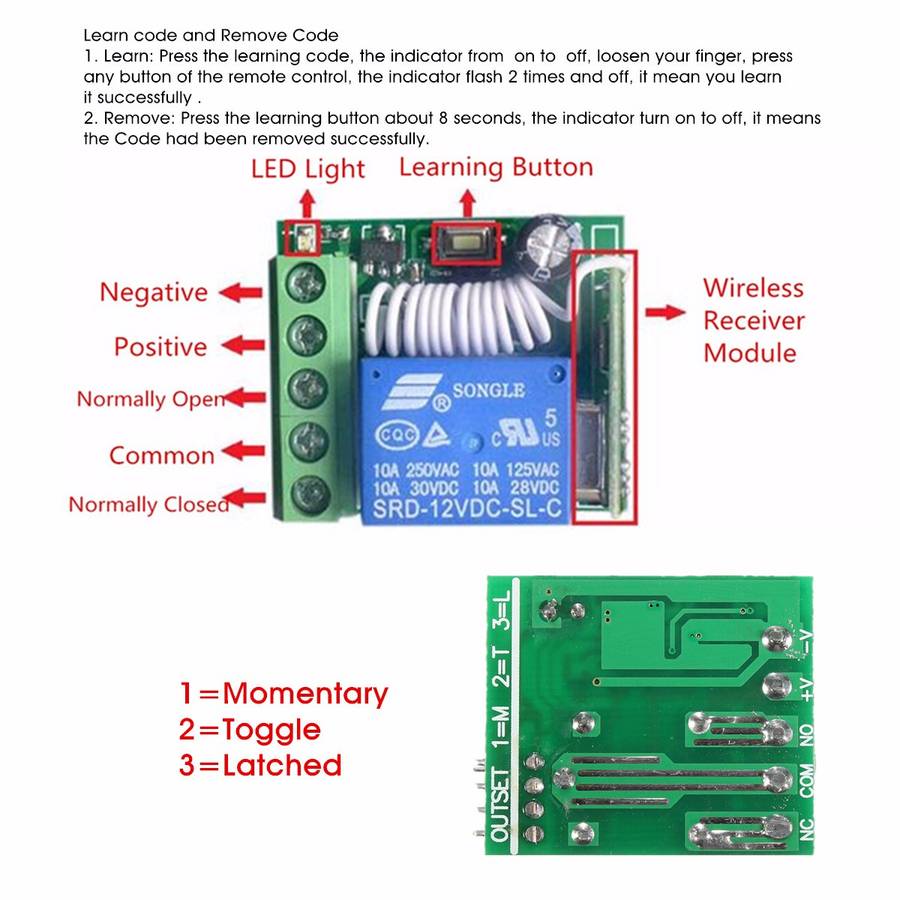

1. press the learning code .the indicator flash ,loosen your finger ,press any button of the remote control
the indicator flash 2 times and off .it mean you learn it successfully .
2. it can learn more than 12 PCS 2262 or 1527 chip with the different code wireless 433MHz remote control
3. remove/clean :press the learning button about 8 seconds , the indicator turn on to off, it means the information that you keep have been removed successfully .

Package included:

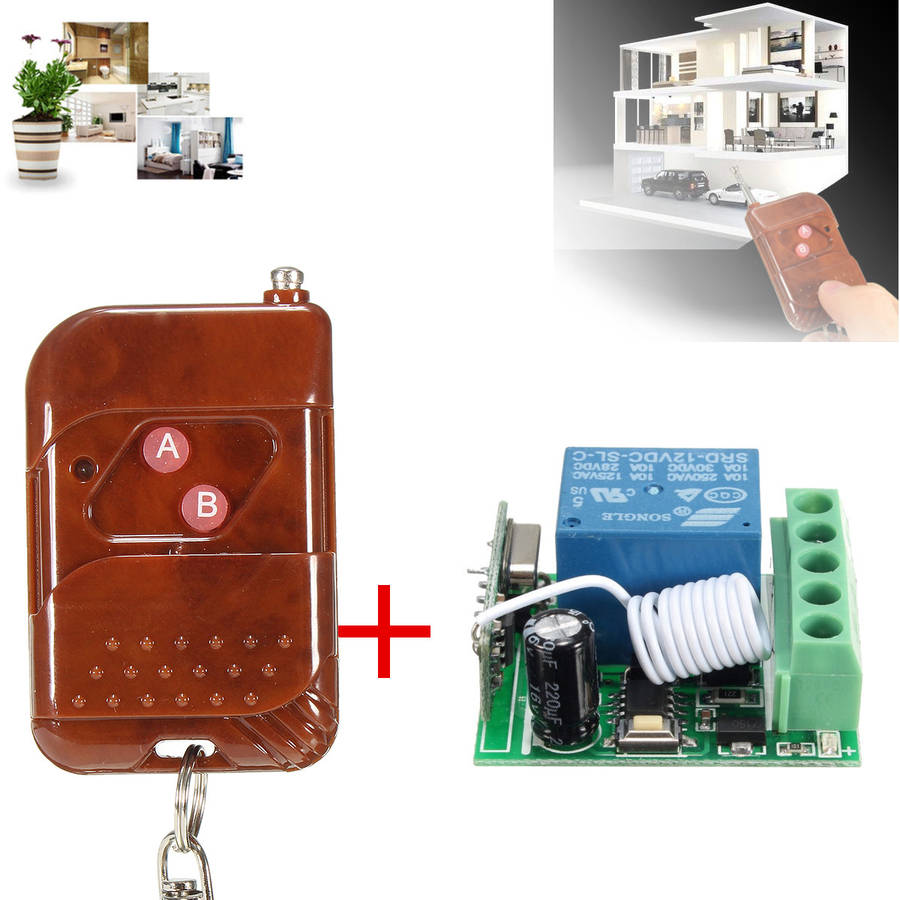

1 x 12V 1CH 433MHz Wireless Relay Switch Receiver
1 x 433MHz Wireless Remote Control (Battery is not included)
