DC 12V 10A 1CH Wireless RF Remote Control Relay Switch Transmitter + Receiver High Quality (Black)!!

DC 12V 10A 1CH Wireless RF Remote Control Relay Switch Transmitter + Receiver APE High Quality (Black)..!

Product Information

HIGHLIGHTS

Replace RF garage door remotes or other electrical controllers with this code learning programmable universal remote control relay switch.
Learn how to program for garage door remotes or other remotely controlled needs. A full remote controller replacement is often the better
option than to repair faulty ones. Dual mode 1 channel radio frequency remote control system.

FEATURES

1. Works in a multitude of different systems
2. Auto code learning
3. Low power consumption
4. LED indicator light
5. Stable performance
6. Easy to install and easy to use
7. Fit for: Electric gates, Electric windows, Garage doors, Lifting equipment, Robotics, Security systems, Vehicle central locking, Vehicle sun roofs
8. Coding: 16 different cords, if you have more, it will delete the cord at the begining that you set.

SPECIFICATIONS

Receiver Specifications:

Channels: 1
Working voltage: 12V DC
Dual mode: momentary/toggle
Power consumption: <10mA
Output Current: <10A
Sensitivity: ≥-95dBm
Frequency: 315MHz
Dimension: 65 x 38 x 22mm (2.5 x 1.5 x 0.9”)

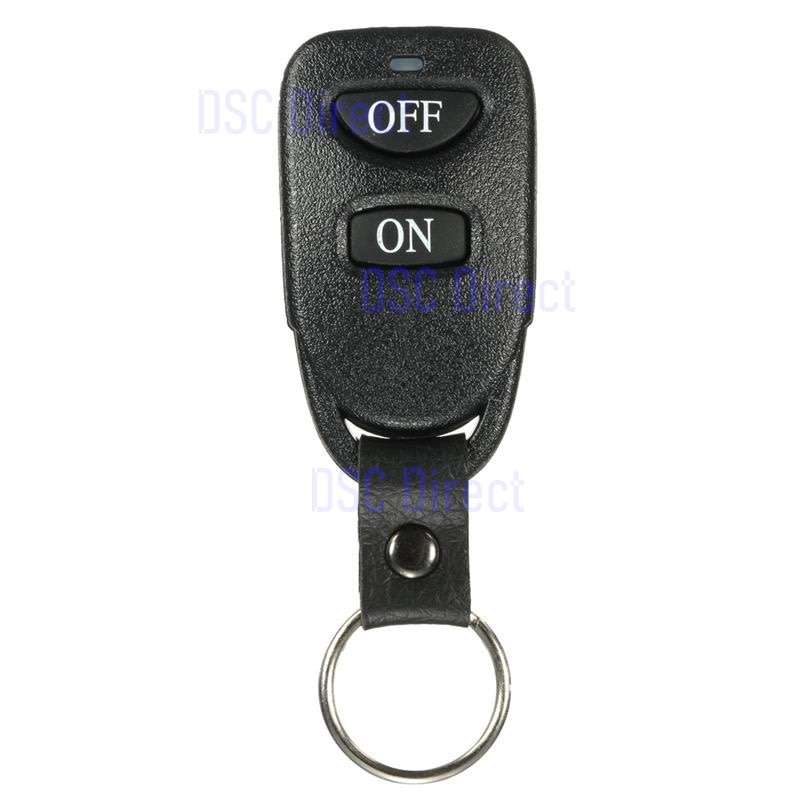

Remote Control Specifications:

Voltage: DC 6V
Frequency: 315MHz
Range: 50-100 meters (Open Space)
Current: <15mA
Shock Resistance: 4.7
Size: 62x34x10mm
Bottom: ON/ OFF

Learning Method:

1. After power on, the indicator light is always on. Then, you press the learning cord 2 or 3 seconds, and the indicator light power off.
2. Release the learining cord, and press the any key of remote control.
3. After the indicator light have 5 times flash, it shows that you are successed in learning.

Remove Method:

Press the learning cords about 8 seconds, and the indicator light return being power on that shows the learning cord remove.

PACKAGE CONTENTS

1x Receiver
1x Remote Control
