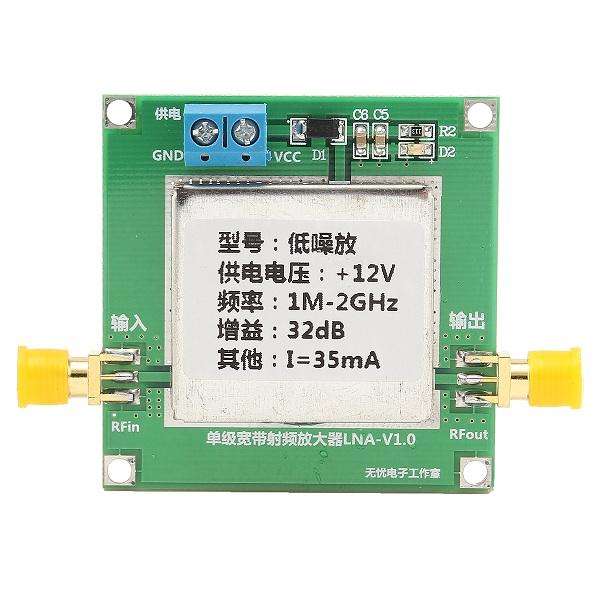

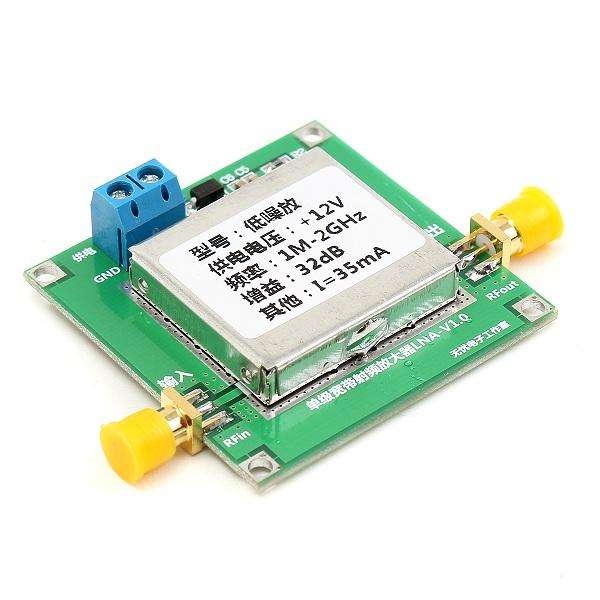

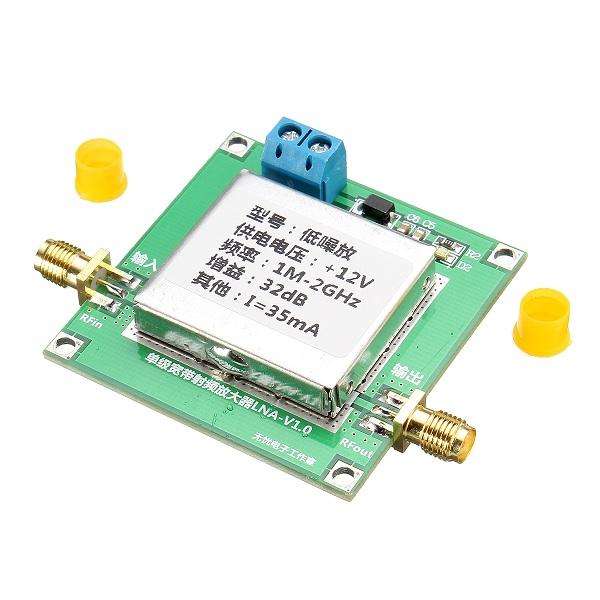

DC 12V 1M-2000MHz 2Ghz 32dB Broadband RF Low Noise Amplifier Module DC 12V 1M-2000MHz 2Ghz 32dB Broadband RF Low Noise Amplifier Module DC 12V 1M-2000MHz 2Ghz 32dB Broadband RF Low Noise Amplifier Module
DC 12V 1M-2000MHz 2Ghz 32dB Broadband RF Low Noise Amplifier Module DC 12V 1M-2000MHz 2Ghz 32dB Broadband RF Low Noise Amplifier Module DC 12V 1M-2000MHz 2Ghz 32dB Broadband RF Low Noise Amplifier Module

DC 12V 1M-2000MHz 2Ghz 32dB Broadband RF Low Noise Amplifier Module

New 1 available
Indicative market price: R587.65
Only 1 left – grab it before it’s gone!
R412.10
30% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1236943
Bob Shop ID
647485065
Description:

Gain:32dB
Power supply voltage: DC 12V (Current 35mA) with shielded enclosure
Input Output Impedance: 50 Ohm
Maximum output power: 10 dBm
(2VPP50Ohm load)
Input signal: -22 DBM  (  >-22 DBM Input,the output signal has been distorted)
Bandwidth: 1 MHZ ~2 GHZ (gain is different under different frequency, specific please refer to the curve of S21 indicators)
Noise factor: 2 dB (0.5 GHz case measurement)
Other:Whenever you need a different gain value,
can reduce the supply voltage.
Size(L*W*H):50 x 70 x 12 mm
