DC 12V 2 Channel Wireless RF Remote Control Switch Transmitter + Receiver

DC 12V 2 Channel Wireless RF Remote Control Switch Transmitter + Receiver
Features:
This Remote Control Switch is designed for the alarm of motorcycle, bicycle, supermarket, door, etc.
1. Operating Voltage: 12V
2. Control Channel: 2 Channels
3. Work: jog or self-lock
4. Supporting remote control: 50 ~ 100m (Open Place) two-button remote control
5. Receiver parameters:
1) Operating voltage: DC12V
2) Working frequency: 315MHZ
3) Contact capacity: ≤ 10A/250VAC; 10A/30VDC
4) Receiver sensitivity:>-105dB
5) Remote control distance: 50 ~ 100m (open area) (please stretch the antenna in order to achieve effective distance)
6) Control approach: four normally open (normally closed) contacts
7) Encoding type: fixed code; pad code
6. Remote control parameters:
1) Operating voltage: DC12V (battery included)
2) Operating Current: ≤ 10mA
3) Operating frequency: 315MHz
4) Transmission Distance: 50 ~ 100m (open area) (please stretch the antenna in order to achieve effective distance)
5) Encoding type: fixed code; pad code
7. Package size: 120 x 70 x 30mm
Instructions:
Jog: press one button is ON. Loosen your finger on the same button is OFF
Self -lock: press one button for one time is ON .press the same button again is OFF
Inter-lock: press one button is ON, press another button is OFF. (Need one channel switch and 2 buttons remote control)
Learning and remove method:
1. Press the first learning code, the indicator flash, loosen your finger, press first button of the remote control ,the indicator flash 2 times and off; press the second learning code, the indicator flash, loosen your finger , press second button of the remote control ,the indicator flash 2 times and offit mean you learn it successfully.
2. Remove/clean: press the learning button about 8 seconds, the indicator turn on to off, it means the information that you keep have been removed successfully .
Package included:

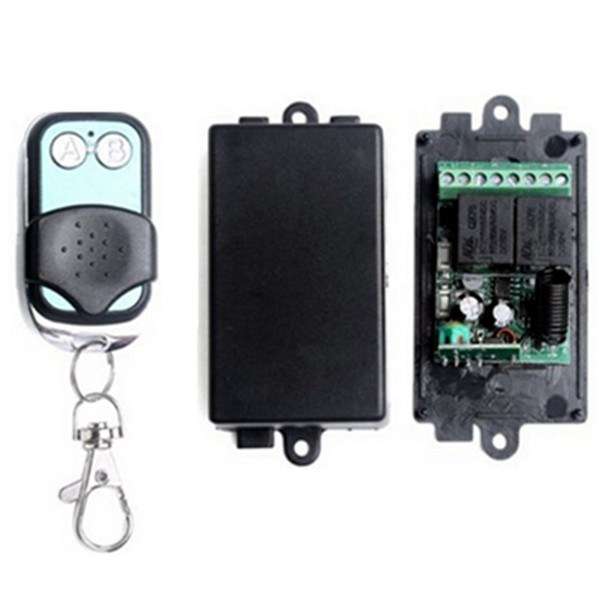

1 x Receiver Board

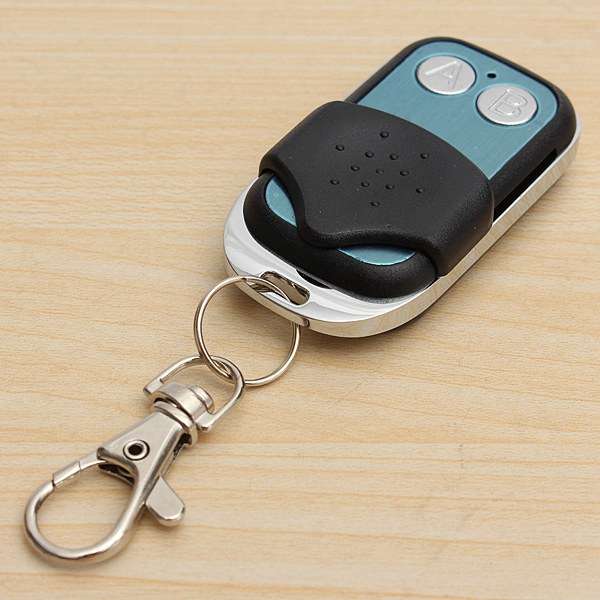

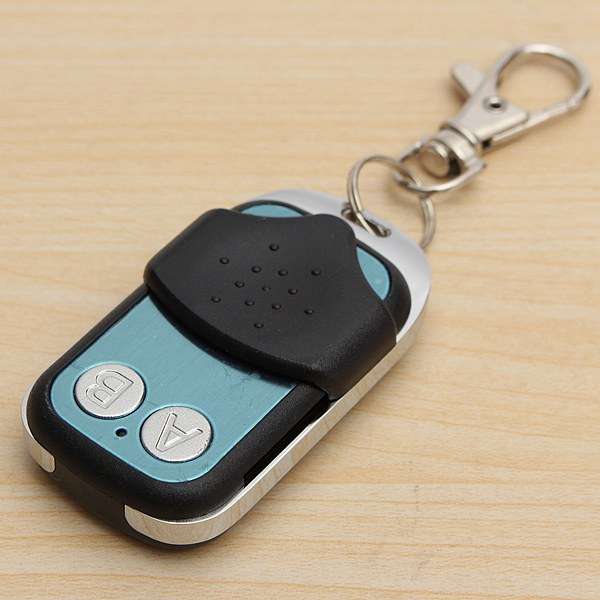

1 x Remote Controller (battery included)
