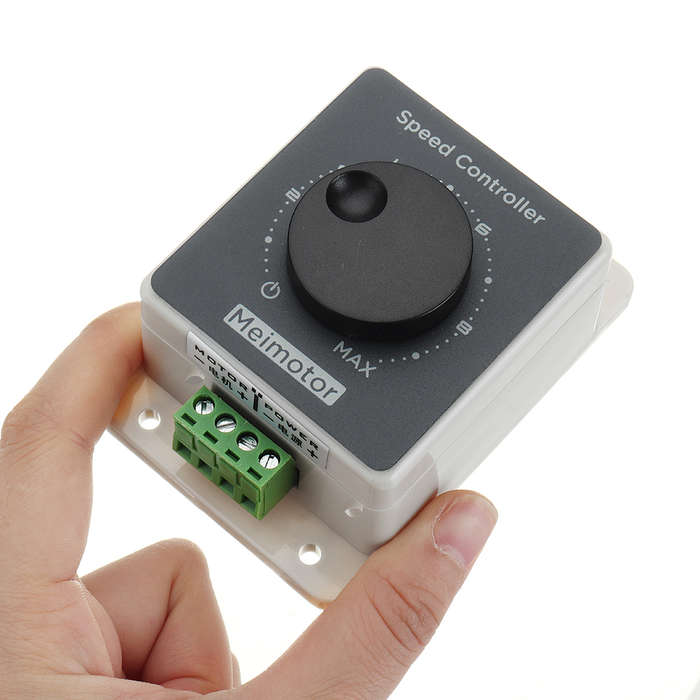

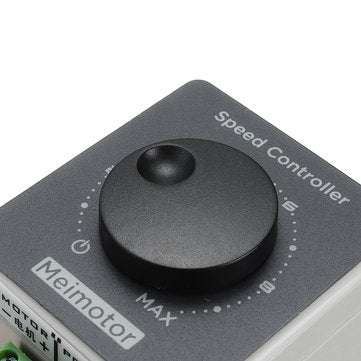

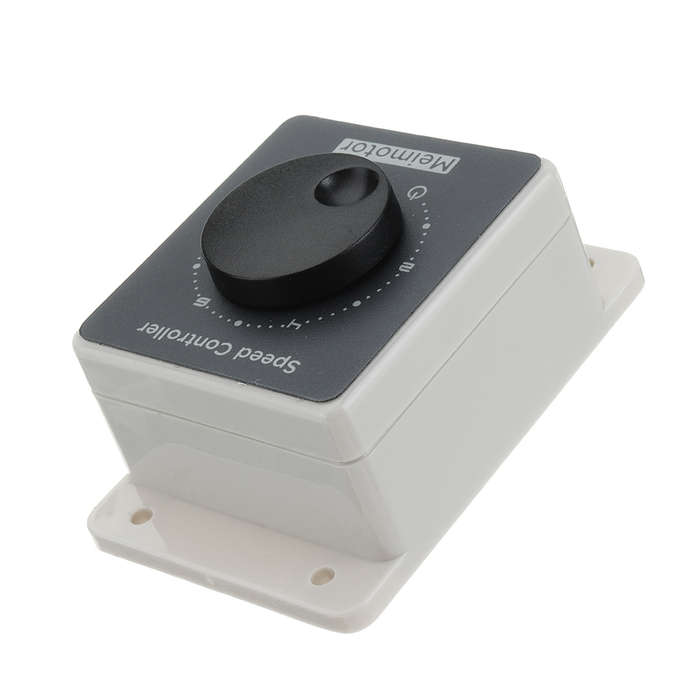

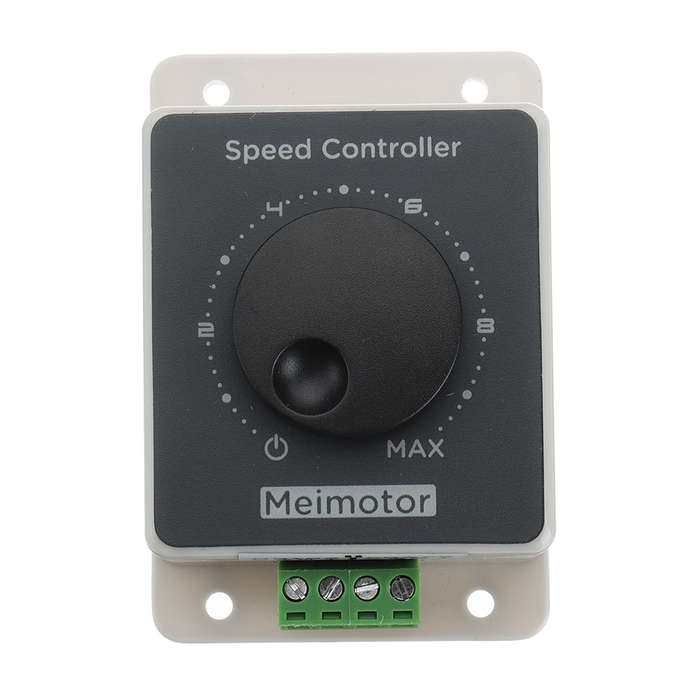

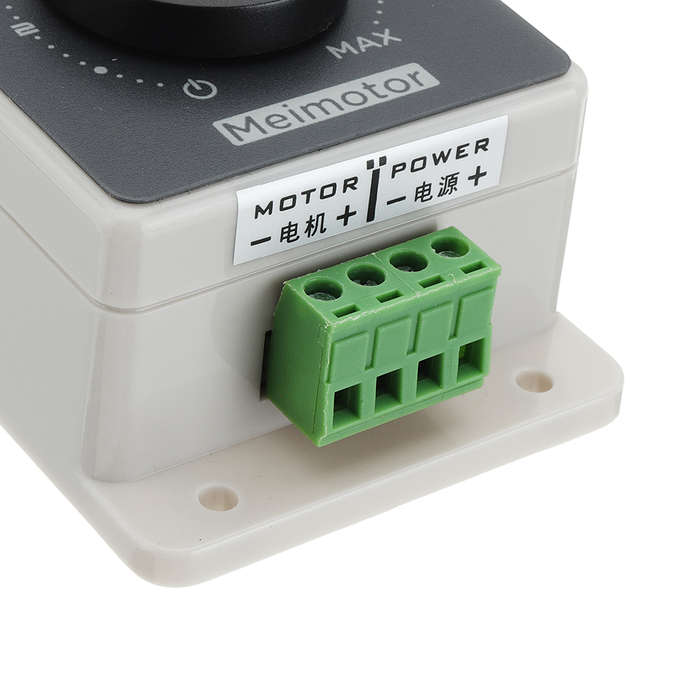

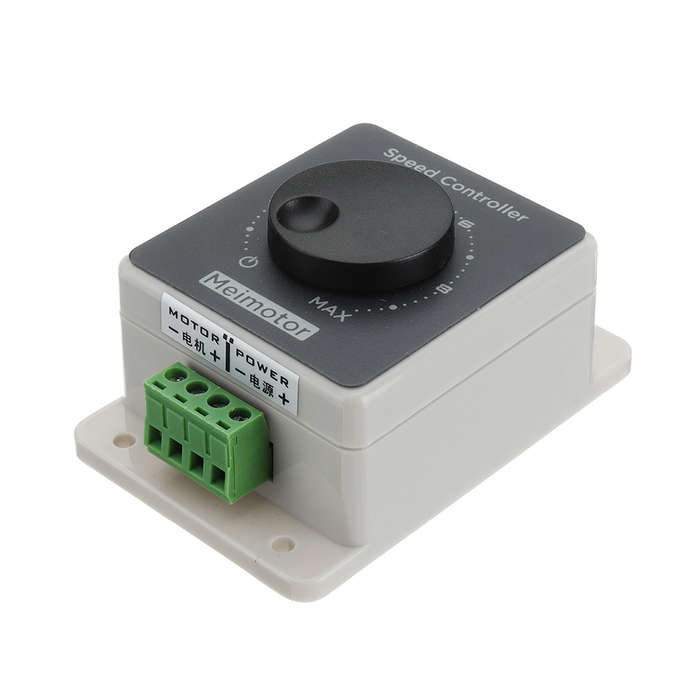

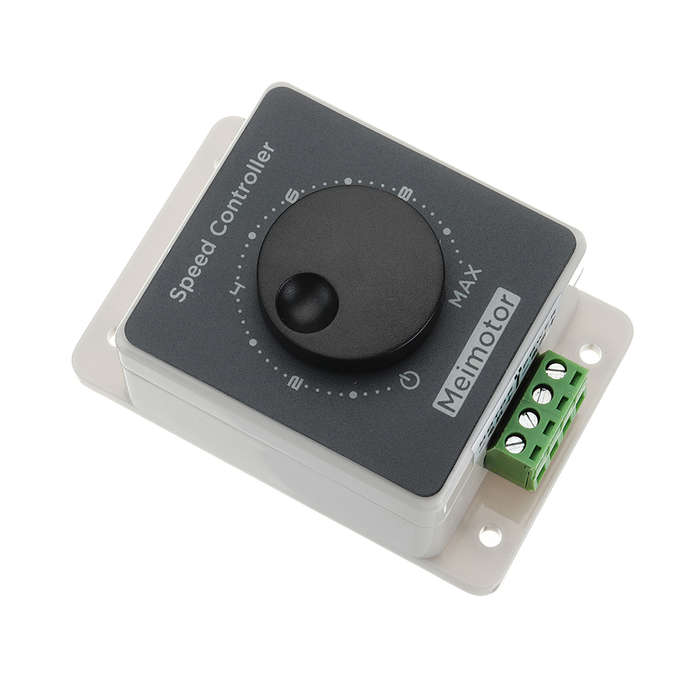

DC 12V 24V 36V 48V PWM DC Motor Speed Controller Meimotor High Power 10A With Housing

New

20 available

R524.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou4023

92.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

654096085

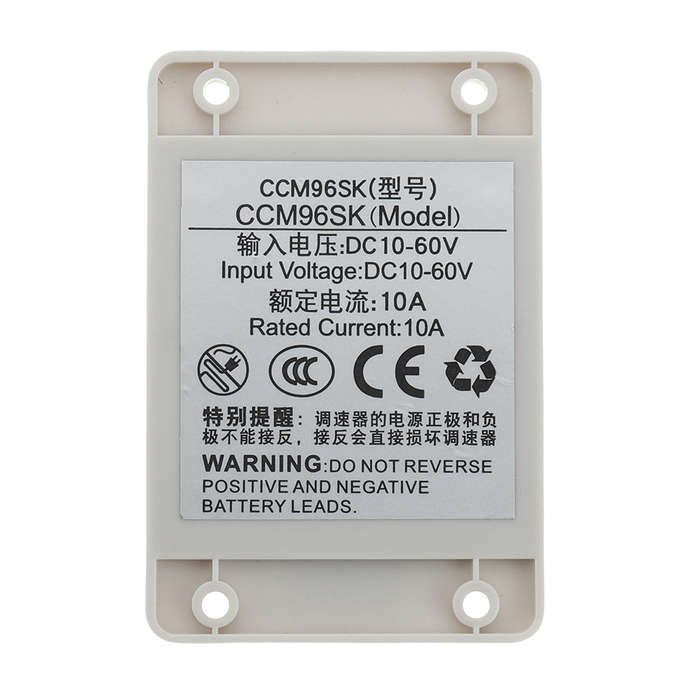

Technical Parameters: Model: CCM96SK Potentiometer: Resistance B100K; opening 8mm Input voltage: DC10-60V Output voltage: 0-100% of input voltage Control power: 12V*10A=120W, 24V*10A=240W,... Rated current: 10A Maximum current: 20A Speed range: 5%-100% Size: 88mm*59mm*35mm PWM frequency: 25kHz Precautions and instructions for use: 1. DC motor speed controller input is DC, not directly connected to AC, otherwise it will burn out 2. The positive and negative DC power supply can not be reversed, otherwise the governor will be damaged. 3. The motor can be divided into positive and negative. When the direction of movement is inconsistent with the expectation,
the direction can be changed by adjusting the line sequence. 4. The potentiometer knob can change the duty cycle of the speed control output, thus changing the motor speed.

Package included:

1 xDC 12V 24V 36V 48V PWM DC Motor Speed Controller
