Package weight: 0.17 kg
Specifications:
Color: Black, White
Size: 86×86×37mm (3.4×3.4×1.5")
Operating voltage: 12~24V DC
Operating current: 8A×1CH
Operating temperature: -20~60
Output channel: 1CH
Output power: 96W/192W (12V/24V)
Output control: PWM
Output gray-scale: 256
Button number: 2 Buttons, 1 Touch circle
Color change mode: 10
Static power consumption: <1W
Features:

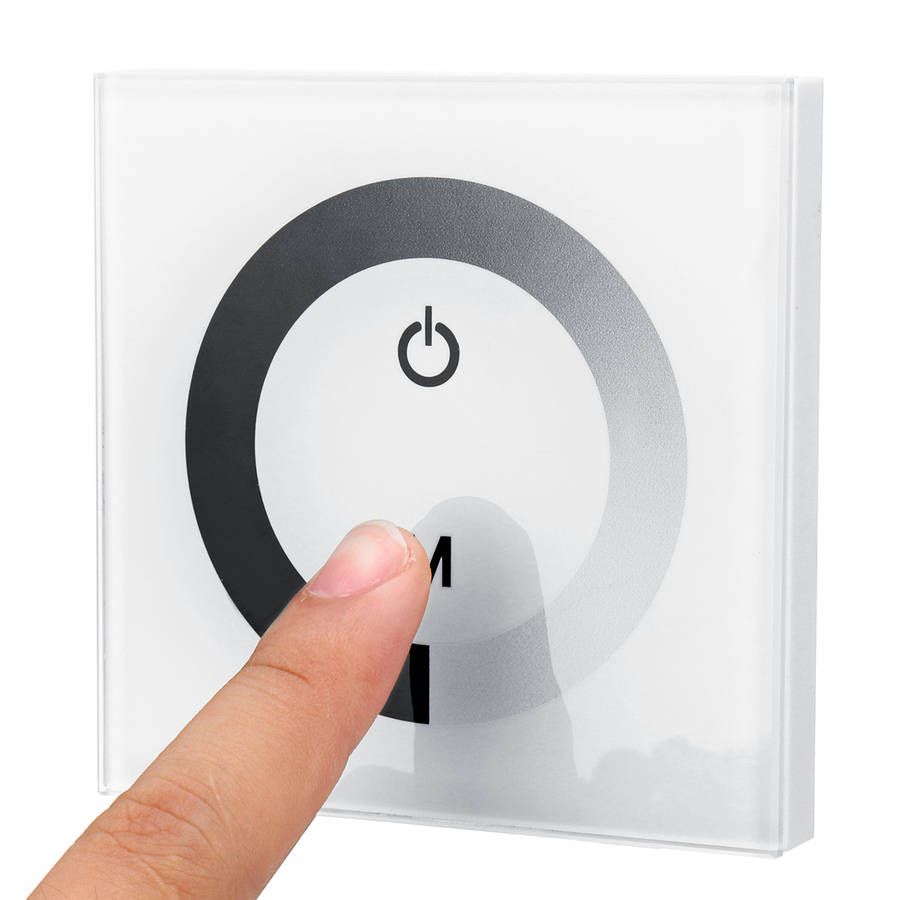

- Full touch panel avoiding mechanical wear has longer working life than those with physical buttons.
- Color touch circle make it direct and convenient in use.
- Input power adapt to DC12~24V automatically.
- Input polarity protection.
- Color changing is more exquisite with PWM.
- Using high power original dimming control MOS tube, it is up to 18A drive load capacity, has stable and reliable perfamance.
- With novel and decent appearance, it particular suited to interior home an business places.
Package included:
1 x Controller Panel
1 x User Manual
