SELECTED OPTION:
VOLTAGE: 12V
CLICK HERE for more options in this item.
Features:
Instructions Included.

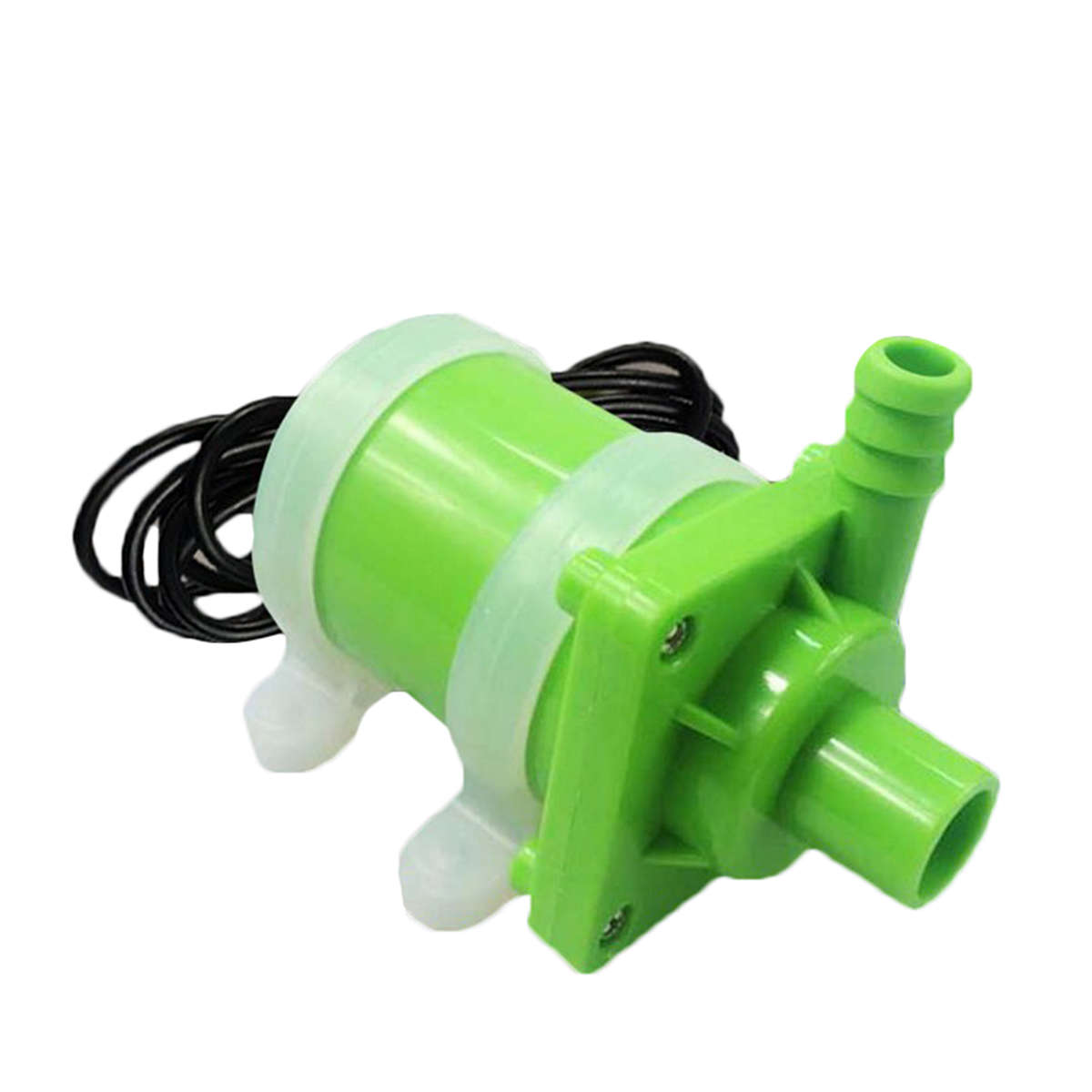

Completely submersible Pump.
The pump adapts to fresh and marine water.
Low consumption, low noise, do not bother your rest.
Have great pumping, increasing oxygen and water circulation function.
The pump offers an adjustable flow rate and is an excellent choice for both freshwater and saltwater applications.
Specification:| Voltage | 12V | 24V |
| Power | 16.8W | 26.4W |
| Head(max.) | 5M | 7M |
| Flow(max.) | 700L/H | 900L/H |
| Outlet (outside diameter) | 12MM | 12MM |
| Outlet (inside diameter) | 6.9MM | 6.9MM |
| Inlet(outside diameter) | 16MM | 16MM |
| Inlet (inside diameter) | 12MM | 12MM |
| Cable | 2M | 2M |
| Noise (max.) | 35db | 35db |
Material: ABS body+Stainless steel shaft
Color: Green
Life: more than 20000 hours
Water temperature: -20 ℃ ~ 60 ℃
Humidity: -20 ℃ ~ 60 ℃
Suitable medium: water and other non-corrosive non-viscous liquid.
Uses: refrigeration system, water circulation system, fountains and so on.
Size: (L) x (W) x (H) 80 x 48 x 63mm /3.15" x 1.89" x 2.48"(appr.)
ATTENTION:
1. Do not overpressure operation. 12V version is up to 12V. The highest 24V version is 24V. More than 10AH battery fully charged, if there is no limit pressure measures, will be over-pressure, can not guarantee their own supply voltage to be tested first.
2. Do not use the AC power, router power, the power of computer cats and many similar are not exchange can be used!
Ripple problem (the most prone to problems): A lot of DC transformers are half-wave rectification, the result is a lot of AC mixed DC components, the pump will be bad! Brushless water pump must be full-wave rectifier! If you do not understand, you can consult professionals!
3. Head problem: 3.2 meters head does not mean that the power can be sprayed 3.2 meters high, head is connected to the water outlet pipe, the water column in the vertical height of the water pipe. Jet height is much lower than the head!
4. The use of regulated power supply, switching power supply current of not less than 2A.
5. This pump is prohibited unauthorized disassembly, because the ceramic shaft, sleeve is a sophisticated installation, demolition of non-professionals will be difficult to recover.
6. Does not allow ferromagnetic impurities, particles into the magnetic clutch and bearing friction; in the transport of easily crystallized or precipitated media to be promptly washed (Operation: stop to pour the water into the pump after perfusion, running 1min to emissions clean); When transporting media with solid particles, you should filter at the pump flow inlet.
Packing included:
1 x Submersible Pump
Detail Pictures:
