DC 12V-36V 6-channel Wireless Remote ... (FREQUENCY: 315MHZ | VOLTAGE: 9V | TYPE: REMOTECONTROLONLY)

DC 12V-36V 6-channel Wireless Remote ... (FREQUENCY: 315MHZ | VOLTAGE: 9V | TYPE: REMOTECONTROLONLY)

New

20 available

R1,065.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3931

92.49 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651226156

SELECTED OPTION:
FREQUENCY: 315MHZ
VOLTAGE: 9V
TYPE: REMOTECONTROLONLY

Overview:

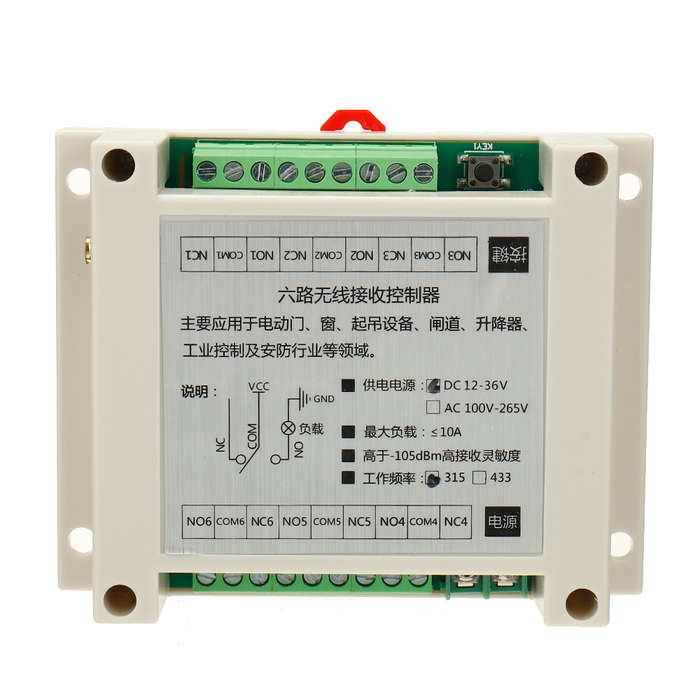

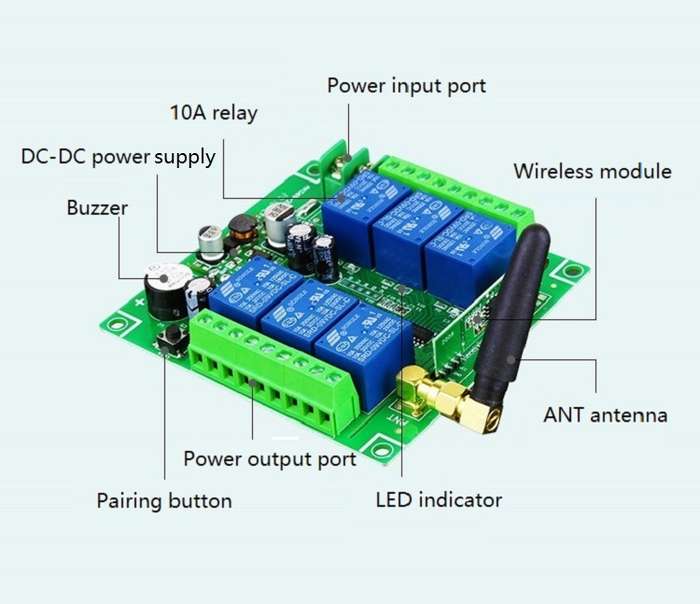

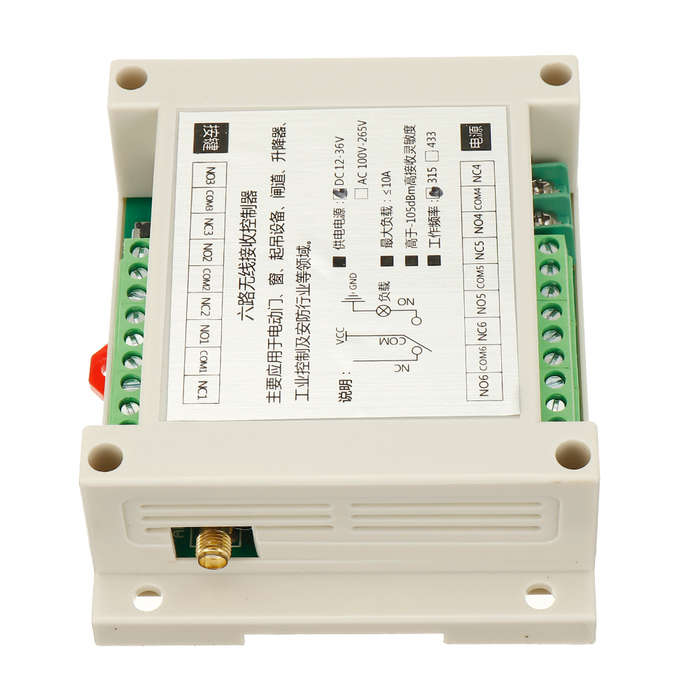

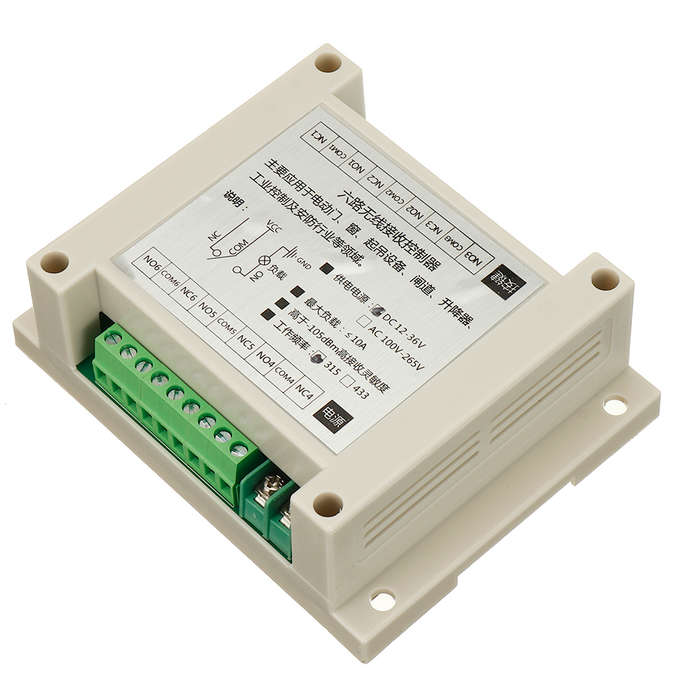

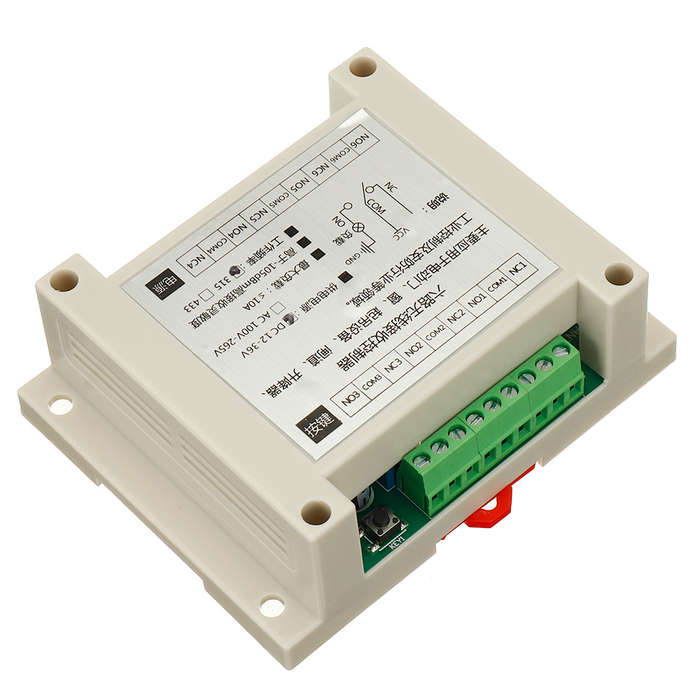

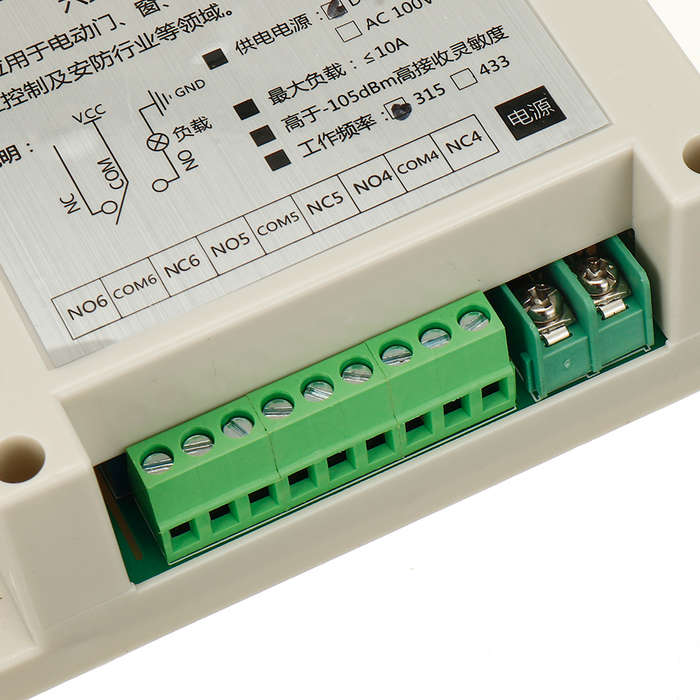

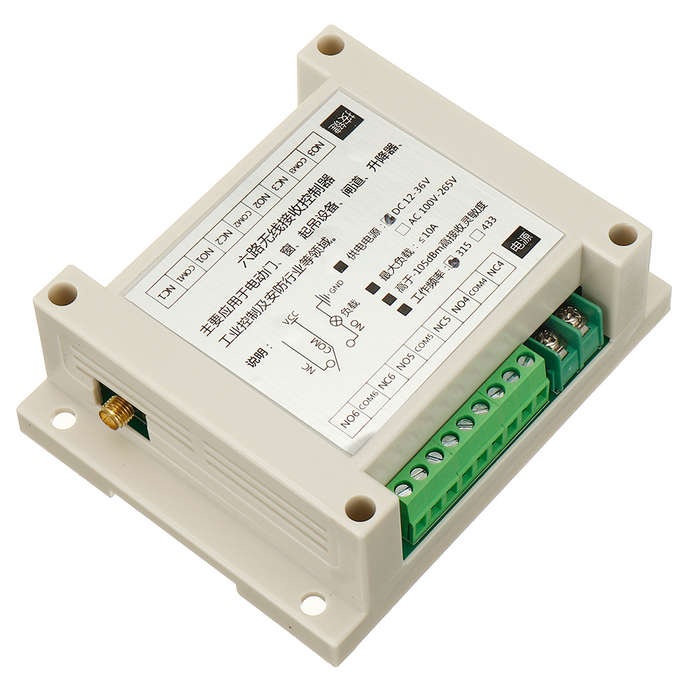

The newly developed and produced new learning code 6-way remote control switch is upgraded on the basis of the old model, and adopts the American industrial control shell design in appearance, and the style is more elegant. The terminal is upgraded. When the interference is strong, the suction cup antenna and the high-sensitivity receiving module can be connected to enhance the signal receiving ability. Chip IC upgrade, using IC that can be burned multiple times, and the program can be changed according to customer requirements. Each relay has an independent working indicator. Another buzzer prompt function.
There is no need to use traditional jumpers or DIP switch coding, and the wireless signal transmitted by the remote control needs to be received and stored by the receiving controller to achieve supporting use. If the learned remote control is lost during use, the information stored in the receiving controller needs to be cleared, and the lost remote control will not be able to remotely control the receiving controller. If you want to regain the right to use, the owner must restart it. It can be used after learning once. There are six output modes that can be switched.
Mainly used in electric doors, windows, lifting equipment, gateways, elevators, industrial control and security industries and other fields.
Parameter:
1. Working voltage: DC24V/AC220V(Optional) 2. Working temperature: -40a-+80a 3. Receiving sensitivity: a-105dBm 4. Working frequency: 315MHz, 433MHz (Optional) 5. Output voltage: AC and DC optional 6. Output current: a3A 7. Weight: 0.17KG 8. Size: circuit board: 87*92.6*16.4mm with shell: 90*115*40 mm

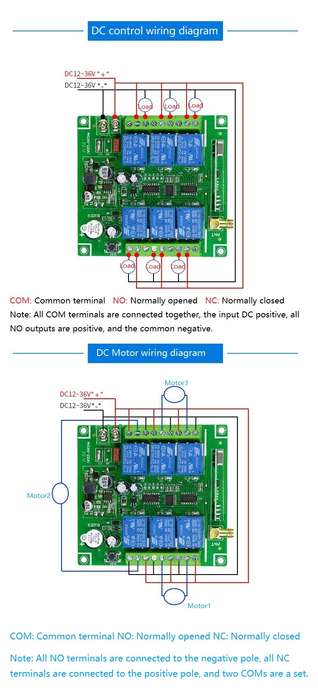

Output method:
Signal jog-press the remote control button 1 to learn Signal interlock-press the remote control key 2 to learn Signal self-locking-press the remote control key 3 to learn
1-3 jog, 4-6 self-locking-press the 4th button on the remote control to learn 1-3 jog, 4-6 interlock-press the 5 key of the remote control to learn 1-3 interlock, 4-6 self-locking-press the No. 6 button on the remote control to learn
Learning methods and steps:

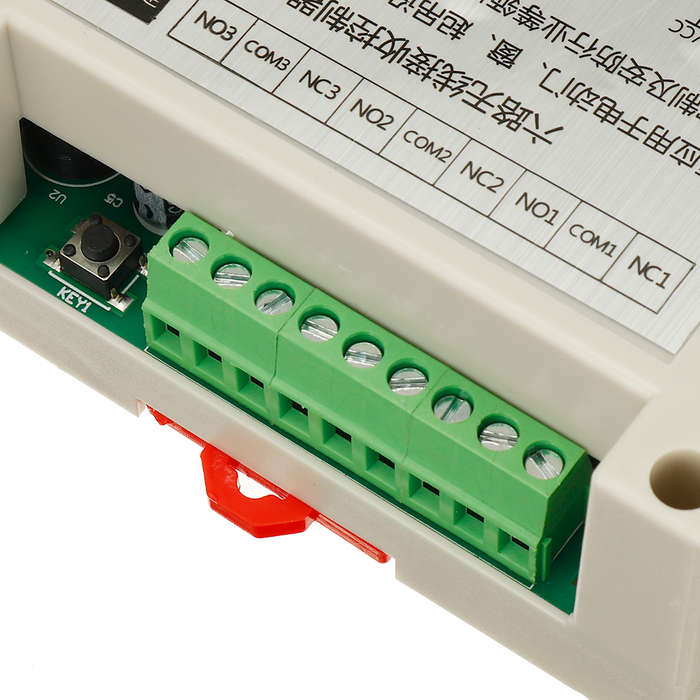

1. Press the learning button of the receiver-the buzzer sounds, indicating that it has entered the learning state. 2. Press any key on the remote control-the buzzer stops ringing, indicating that the learning has been successful.
Clear saved information: Long press the receiver learning button until the buzzer stops, indicating that the stored information has been successfully cleared.
Package included:

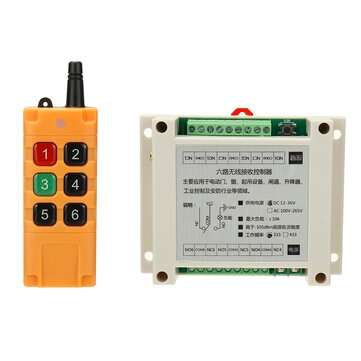

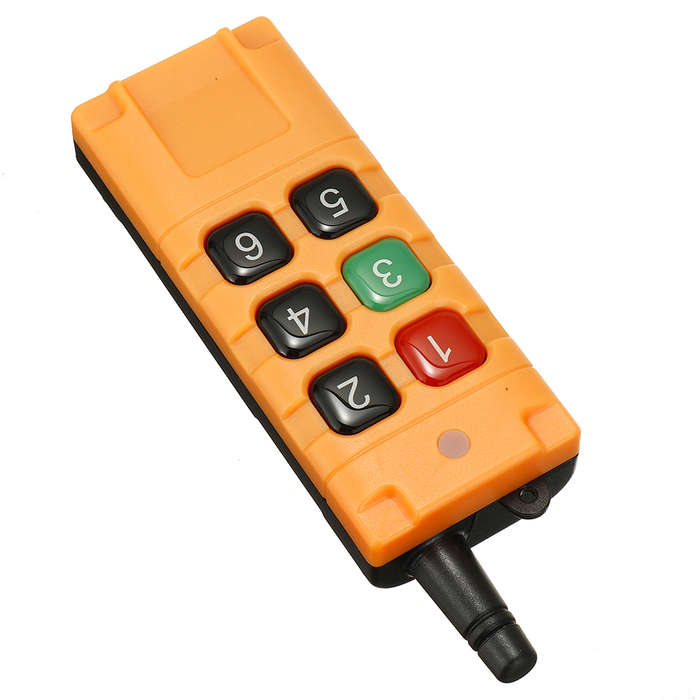

1 x Switch 1 x Remote Controller
