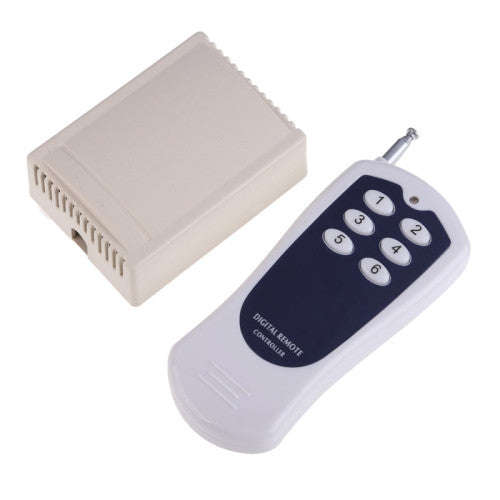

DC 12V 6CH Channel Wireless RF Remote Control Switch Transmitter + Receiver
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
This item is sold brand new. It is ordered on demand from our supplier and is usually dispatched in 10 to 15 working days.
We urge you to please read shipping details before placing your order.
---------------------------------------
Features
1. Wireless control easy to install.
2. Control lights motors fans electrically operated doors / locks / windows / blinds / cars or other appliances with AC220V AC85V-260V OR DC12V.
3. You can turn on / off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls floors and doors.
4. This switch can learn different coding remote controls (such as 2262 1527)
5. One / several transmitters can control one / several receivers simultaneously.
6. If you use two or more receivers in the same place you can set them with different codes. If you use multi-button transmitter you can control the controller with different buttons it will not affect each other.
7. The wireless receiving controller with high confidentiality stable performance low power consumption characteristic jump line or dial the code switch coding.
About Working / output Way
1. Output Working way for learning code switch-Jog Self-lock Inter-lock changed by soldering or jump cap.
2. Momentary / Jog --- Press and hold ON; Release OFF.
3. Toggle / Self-lock --- Press ON; Press again OFF.
4. Latched / Inter-lock--Press ON; Press other button OFF.
Learning and cleaning Method
1. Learning: Press the learning key it means the controller putting in the learning state when the indicator goes ON then please press any buttons of the remote control to transmit signals the indicator will flash for 3 times after 1 second then recover to normally OFF which means successfully studied.
2. After pressing any buttons of the remote control to transmit signal the indicator did not flash 10 seconds later it still recovers to normally on but it study unsuccessfully.
3. Cleaning: Hold press learning button about 8 seconds indicator from ON to OFF then press remote receiver did not work it means cleaning code successful.
A: Signal non-lock (Jog): press the NO.1 button of the remote control to learn.
B: Signal Self-lock (Self-lock): press the No.2 button to learn each channel is independent of the others.
C: Signal Inter-lock: press the NO.3 button to learn.
D: 1CH-3CH is Jog 4CH-6CH is Self-lock press the NO.4button to learn.
E: 1CH-3CH is Jog 4CH-6CH is Inter-lock press the NO.5button to learn.
F: 1CH-2CH is Jog 3CH-6CH is Inter-lock press the NO.6 button to learn.
Pay attention
1. The default setting of output way is momentary press is on release is off. If you need other output way can leave a message to change it for you before the delivery.
2. Here is 6 Channel switch and 6-buttons remote control. You can choose the working way as you need. We default is momentary.
3. The theoretical distance is 50-200m which shall be operated in an open ground; no barriers and no any interference. However in actual operation it is hindered by trees walls or other obstacles or interfered by other signals. Therefore the actual distance cannot reach 100m. If you need longer range please choose other series of remote control such as 1000m/3000ft; or you can add the External Extend Antenna or Transponder on the receiver to extend the range.
---------------------------------------
