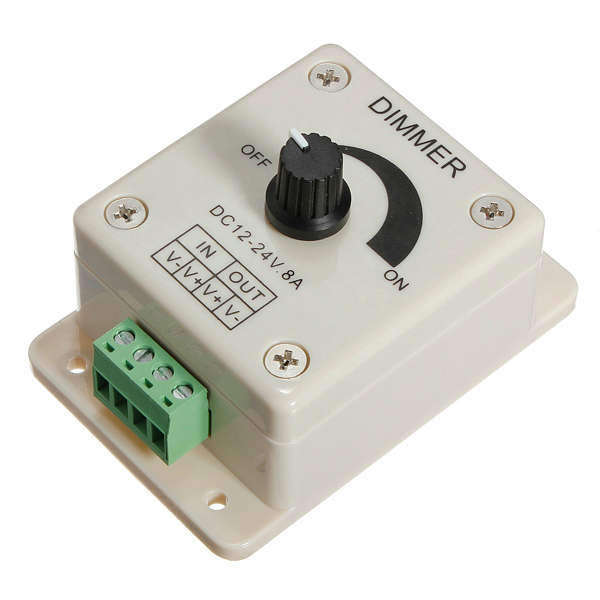

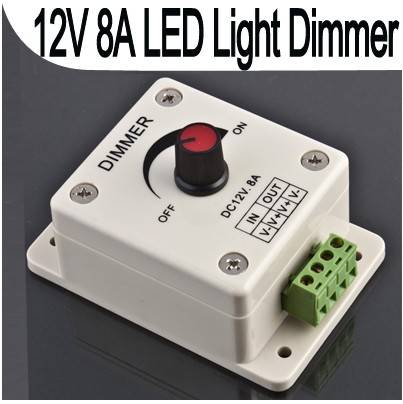

DC 12V 8A Adjustable Dimmer Switch Control For Single Color LED Strip
New
30 were available
Indicative market price:
R299.00
R126.50
58% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable. Check my rate
The seller has indicated that they will usually have this item
ready to ship within 3 business days.
Shipping time depends on your delivery address.
The most accurate delivery time will be calculated at checkout,
but in general, the following shipping times apply:

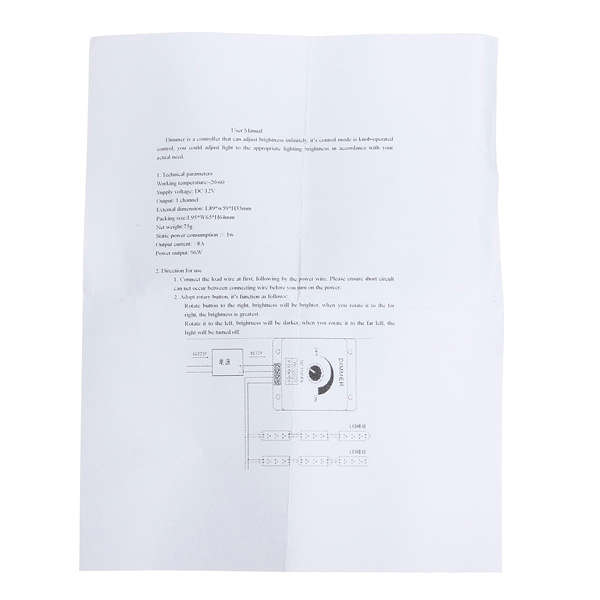

Dimmer is a controller that can adjust brightness infinitely, its control mode is knob-operated control, you could adjust light to the approriate lighting brightness in accordance with your actual need.
1.Technical parameters
Working temperature: -20—60¿¿¿
Supply voltage: DC 12V
Output: 1 channel
Extemal dimension: 89(L) * 59(W) * 35(H) mm
Packing size: 95(L) * 65(W) * 64(H) mm
Net weight: 75g
Static power consumption: <1w
Output current: 8A
Power Output: 96W
2.Direction for use

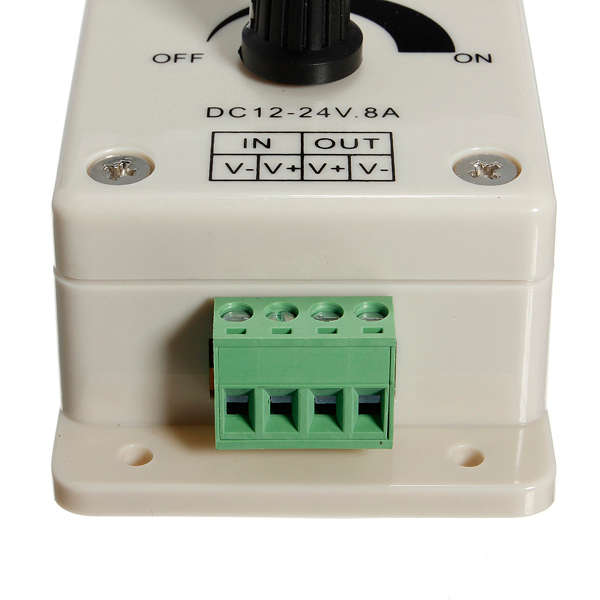

Connect the Load wire at first, following by the power wire. Please ensure short circult can net occur betwwen connecting wire before you turn on the power.

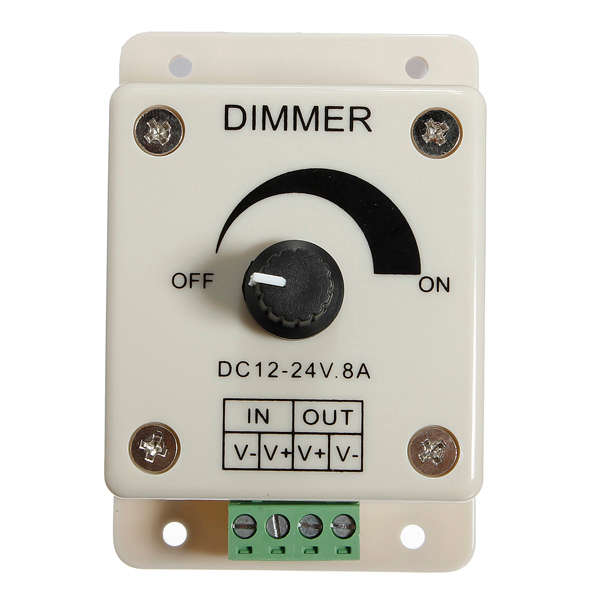

Adopt rotary button, it's function as follows:
Rotate button to the right, brightness will be brighter,when you rotate it to the far right, the brightness is greatest.
Rotate button to the left, brightness will be darker,when you rotate it to the far left, the light will be turned off.
