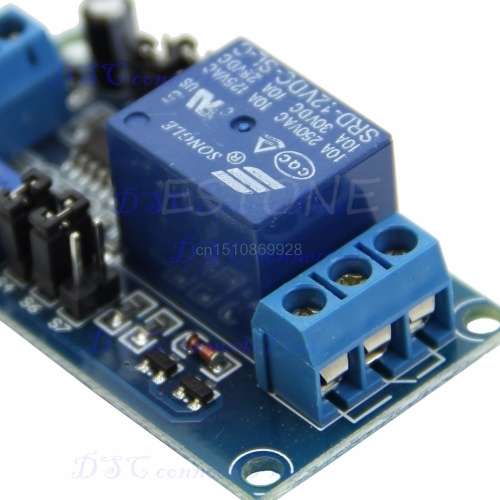

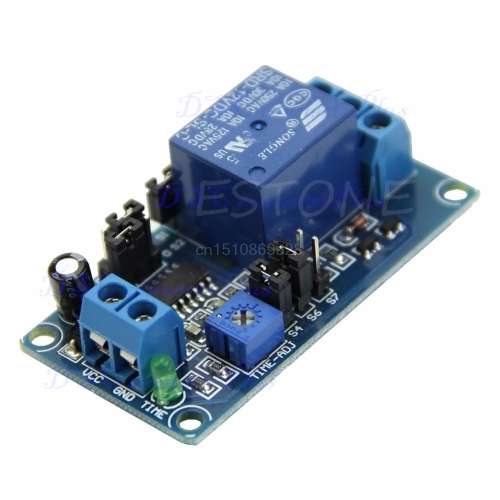

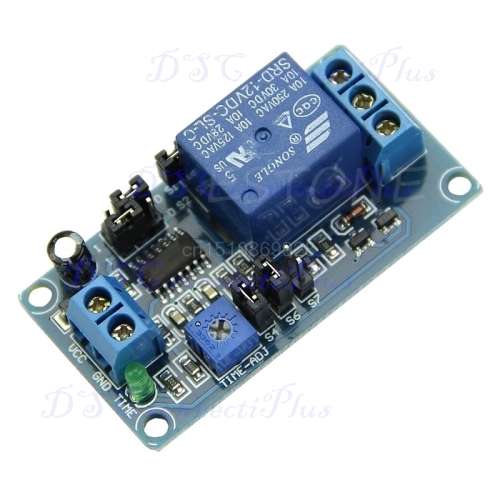

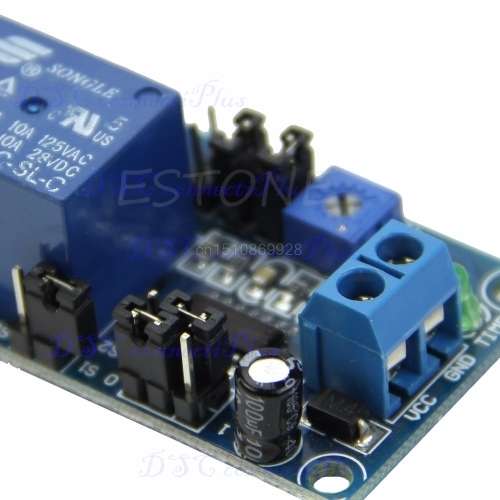

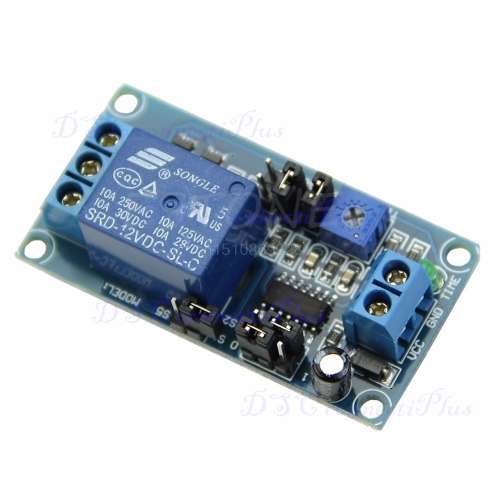

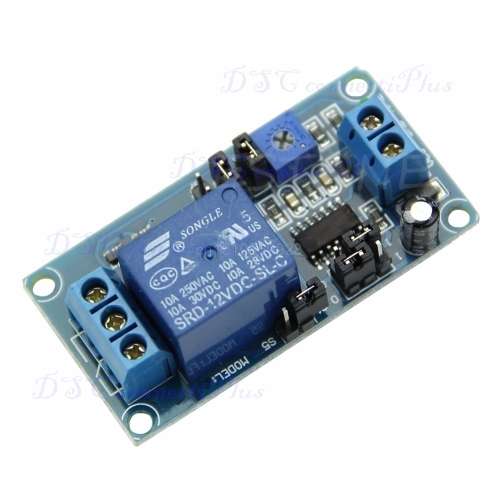

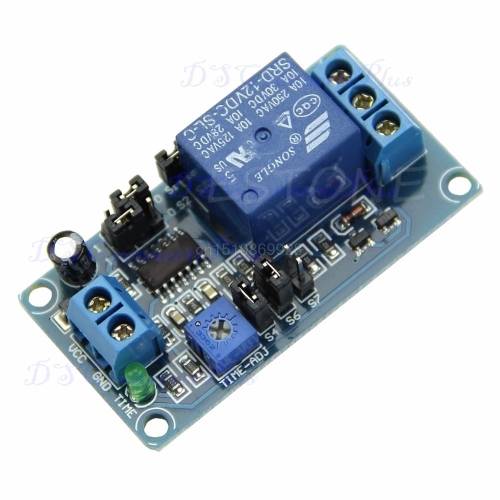

DC 12V DC Delay Relay Delay Turn on / Delay Turn off Switch Module with Timer (Blue/Green)..!
Product Information
HIGHLIGHTS

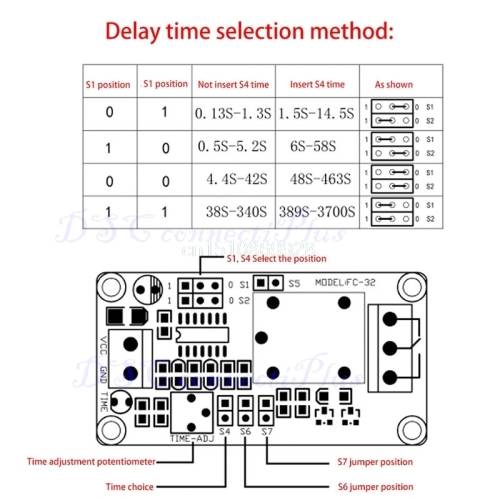

With 8 time ranges selected shortest 0.1s most up to 1 hour
Protection against power reversal protection diode, better protection module
Can be accessed by a large current load (250V ac 10A or 30V dc 10A)
With delay adjustment potentiometer clockwise adjustment time longer
SPECIFICATIONS

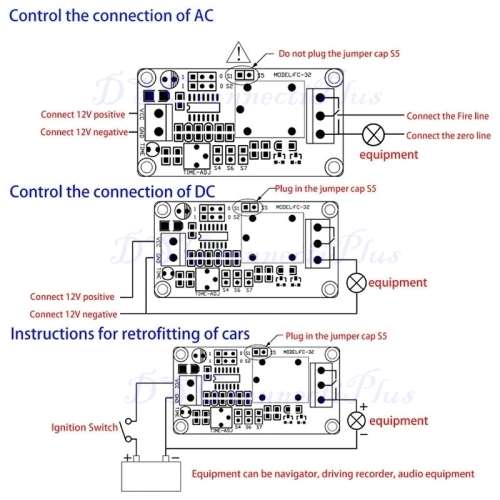

Function
Plug On S6 ,delay turn off
plug on s7, delay turn on
Electrical parameters
Input Voltage: 12V
Quiescent Dissipation: 5.5mA
Maximum Power Consumption: 42mA

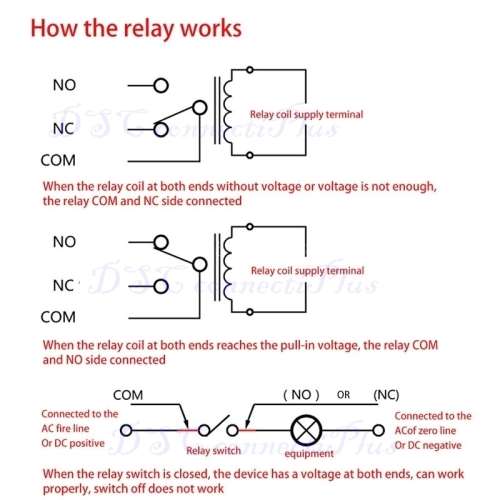

Relay Load Capacity
250V 10A AC (2500W ideal power AC)
30V 10A DC (300W ideal power DC)

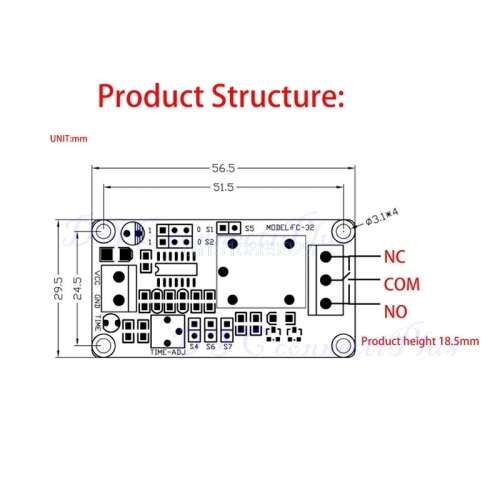

Size: 5.5x3cm / 2.16x1.18"
PACKAGING DETAILS
Unit Type: Piece
Package Weight: 0.08kg (0.18lb.)
Package Size: 18 x 15 x 10cm (7.09 x 5.91 x 3.94in)
Package Contents
1x 12V Delay Relay Turn on/ Turn off Module
