Specification:
Model: KTRGB-17K
Rated Voltage: DC 12V
Control Range: 20m
Connection: Wireless remote control RF
Control Mode: Remote Control
Application: LED Strip
Interface Type: 4PIN
Signal: RF 433
Weight: 25g
Features:
The remote is powered by a standard 3.0V coin cell battery with a quiescent current of less than 1uA. it can be stored for over 2 years of normal use (daily 10 clicks) life of more than 6 months. The remote control adopts a crystal scheme with temperature and voltage compensation, making it possible in different operating environments within the power supply range of the remote control. Ensure effective communication distance up to 20 meters or even more.
The receiving end can support 5V-12V function, which can be freely matched according to the LED light bar. The monochrome payload is up to 1A current, which is sufficient for most LED strips and ensures sufficient LED length. The receiver terminal uses a high quality chip crystal oscillator, which can still perform well under high load when the temperature of the board rises. The entire receiver board consumes as little as 7mA when powered by 12V.
Note:
- This LED controller can only be used in DC 12V RGB LED Strip Lighs, can not be used in AC 220V LED Strip lights.

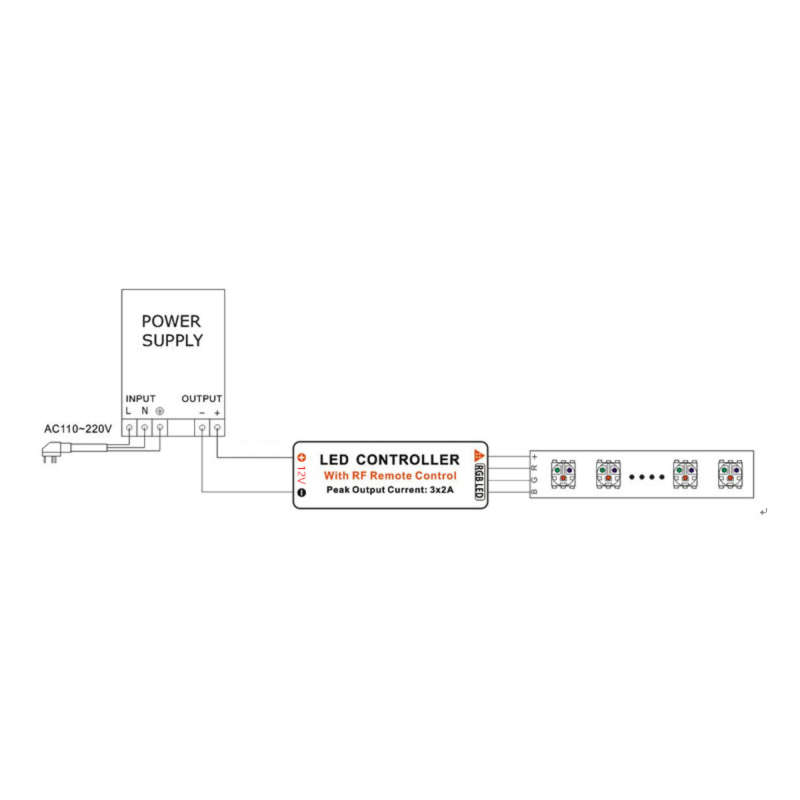

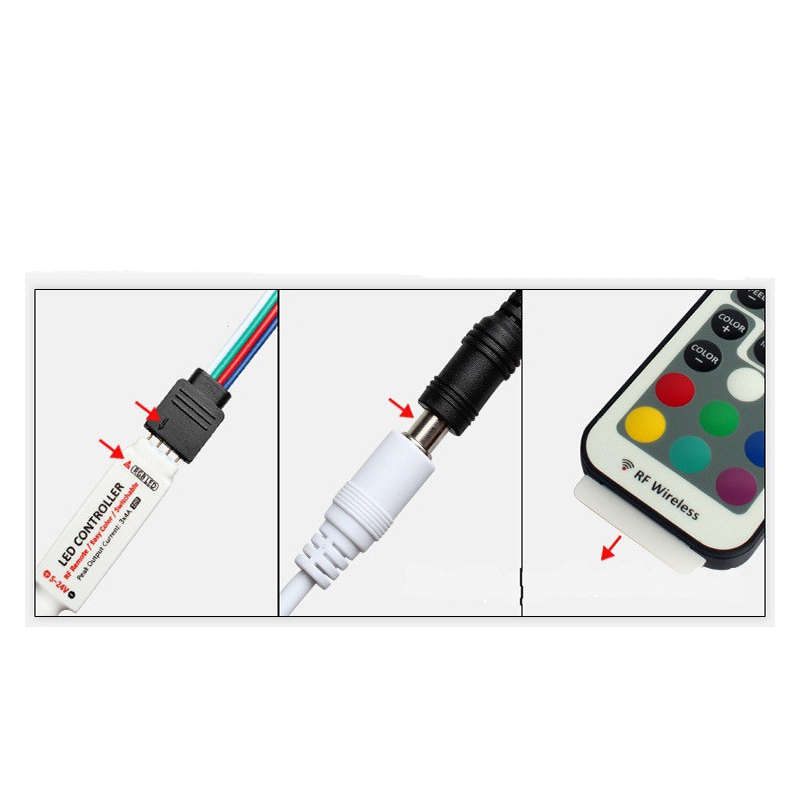

- During installation, the light bar is connected to the controller, which is connected to a 12V power supply (transformer can be).
- The effective power of the switch power supply is only 80% of the power mark, so the user selects the power supply power slightly larger than the LED lights load power, at least 20% more.
Safety instructions:
To ensure that the product is in perfect condition and safe for use, please follow the instructions and warnings in this manual.
Caution, please read the safety precautions in detail:
1. Avoid minefield, strong magnetic field, damp and high voltage areas during installation.
2. Make sure the wiring is correct to avoid short-circuit damage or burn out of the controller.
3. Please install the controller in a well ventilated place, to ensure that the ambient temperature is suitable.
4. Please check the controller input power supply (must be according to the controller power supply voltage matching) whether it meets the product requirements.
5. If problems occur, please do not private maintenance.
Package included:

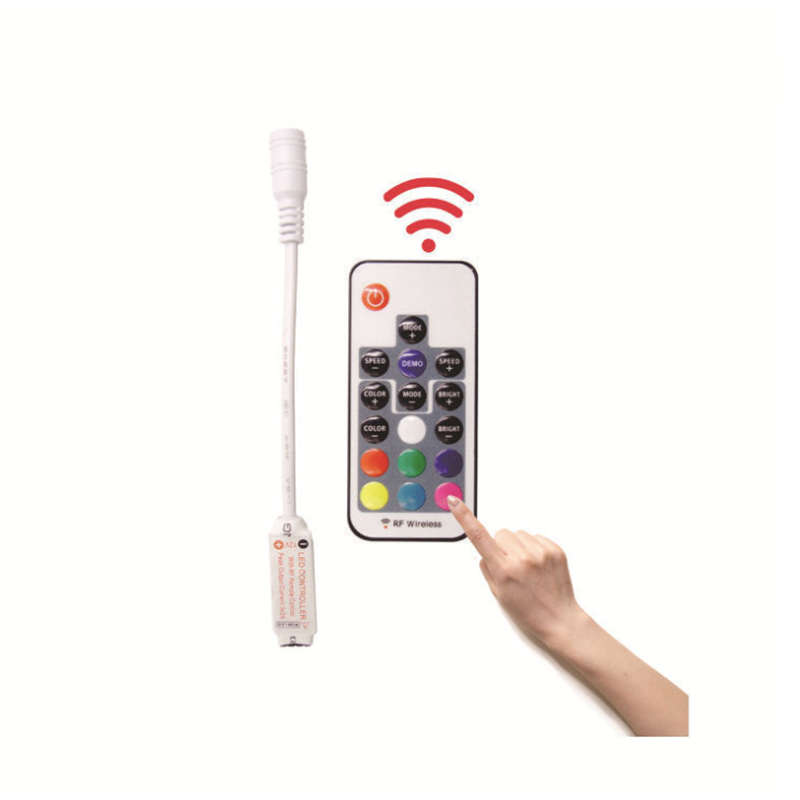

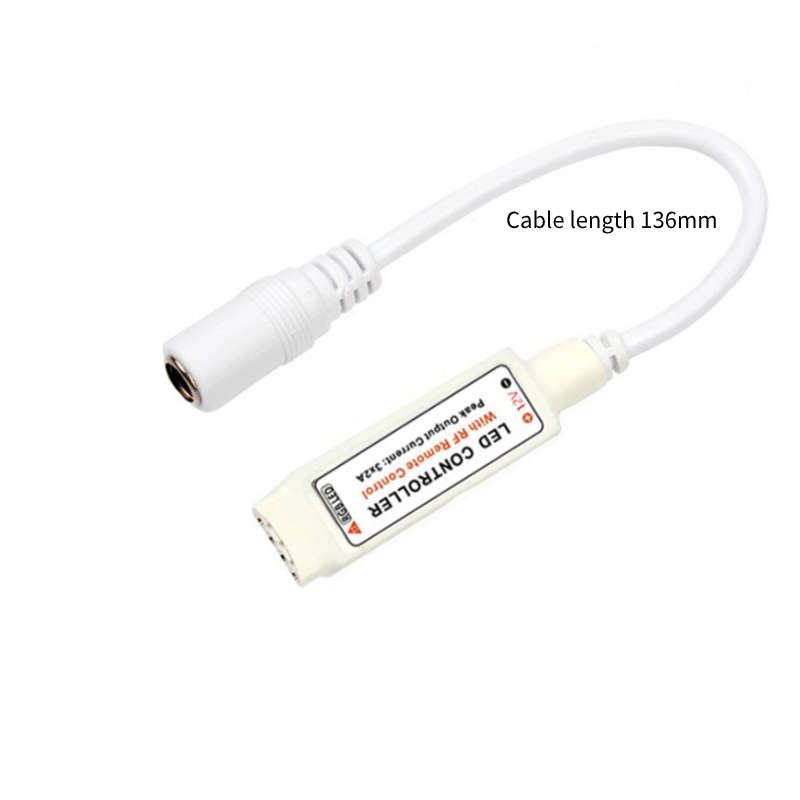

1* LED Controller

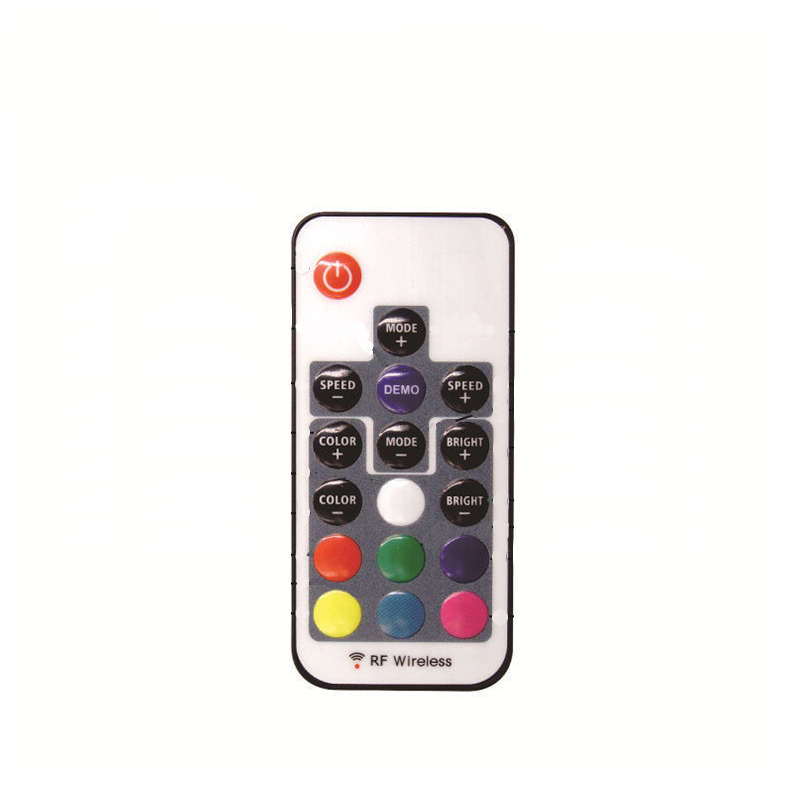

1* RF Wireless Remote
